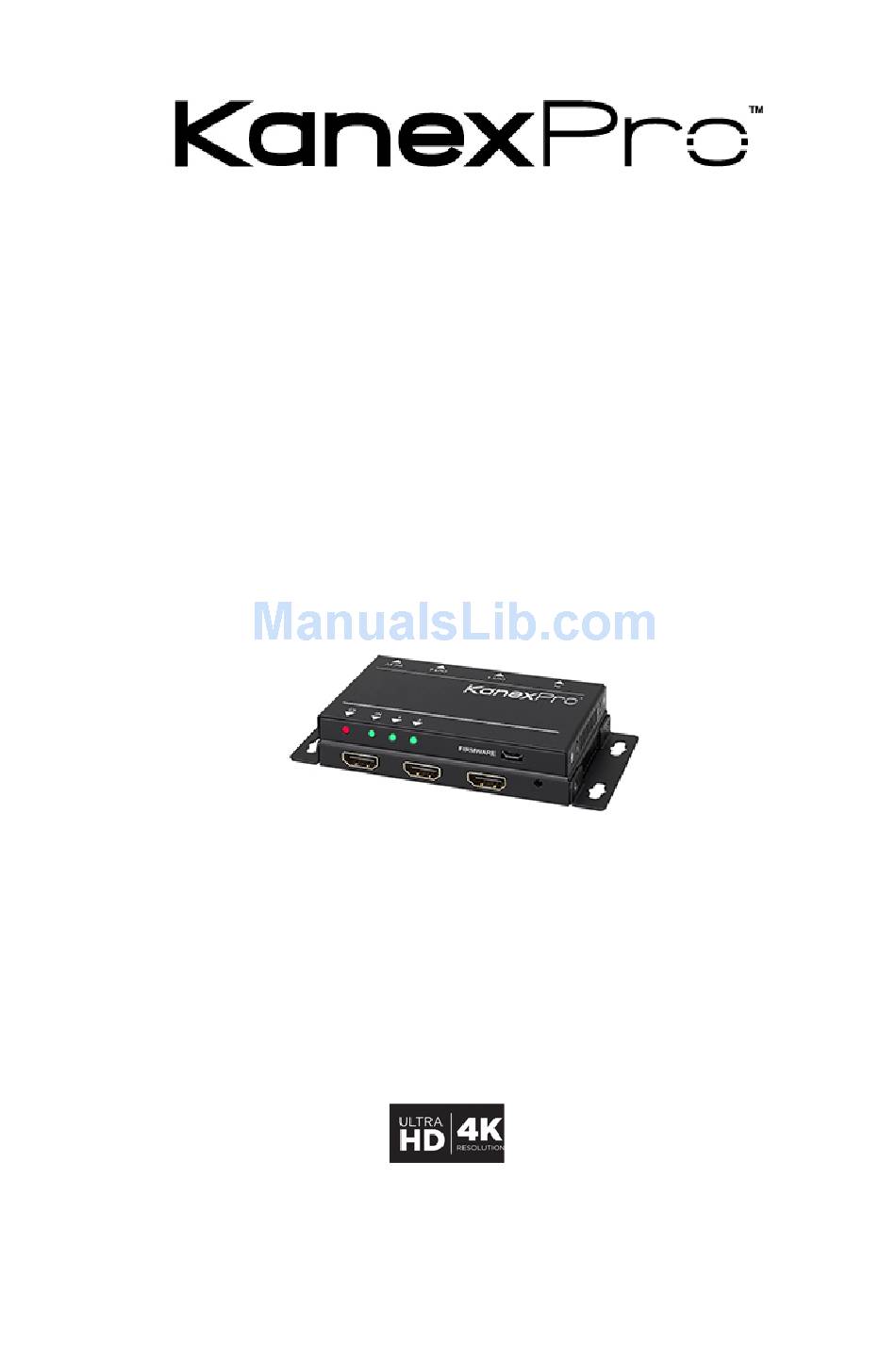

- Page 1 SP-4KPROSLIM1X2 Ultra Slim 4K HDMI 2-Port Splitter All Rights Reserved Version: SP-4KPROSLIM1X2_2014V1.1...
- Page 2 Ultra Slim 4K HDMI 2-Port Splitter SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. l Unpack the equipment carefully and save the original box and packing material for possible future shipment l...
- Page 3 Ultra Slim 4K HDMI 2-Port Splitter NOTICE: Pictures shown in this manual is for reference only, different model and specifications are subject to real product. This manual is for operation instruction only, not for any maintenance usage. The functions described in this version are updated till December 2014. Any changes of functions and parameters since then will be informed separately.
-
Page 4: Table Of Contents
Ultra Slim 4K HDMI 2-Port Splitter Contents 1. Introduction ........................1 1.1 Introduction to 4K HDMI Splitter 1x2 ..............1 1.2 Features ......................1 1.3 Package List ....................... 2 2. Panel Description ......................3 2.1 Front Panel ...................... -
Page 5: Introduction

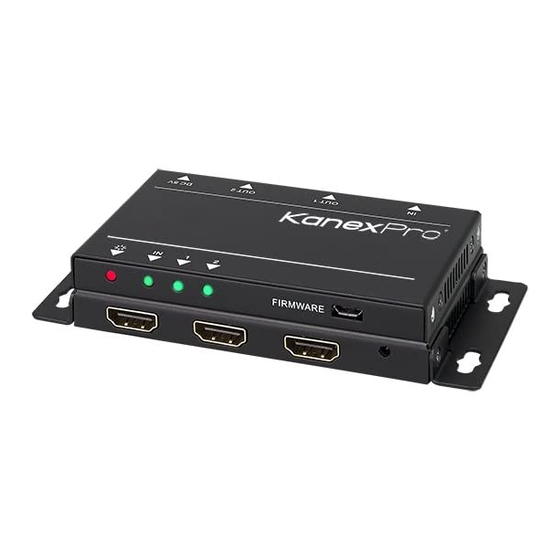

1. Introduction 1.1 Introduction to the Worlds Slimmest 1x2 HDMI Splitter The KanexPro 1x2 HDMI Splitter is an ultra-slim, space saving 4K@30Hz compliant distribution amplifier which lets you duplicate one HDMI source signal to two UHD 4K displays without losing signal integrity and resolution. Incredibly thin aluminum design with only 0.4 inches thick this professional splitter is ready to fit in any installation... -
Page 6: Package List
Ultra Slim 4K HDMI 2-Port Splitter 1.3 Package List l 1 x 4K HDMI Splitter 1x2 l 2 x Mounting ears (separate from 4K HDMI Splitter 1x2) l 4 x Screws l 4 x Plastic cushions l 1 x Power Adapter (DC 5V 1A) l... -
Page 7: Panel Description
Ultra Slim 4K HDMI 2-Port Splitter 2. Panel Description 2.1 Front Panel Name Description Power Illuminate red once powered on indicator Indicate the HDCP compliant status of the input signal Input HDCP Ø Iluminate green when the input signal is with HDCP compliant Ø... -
Page 8: Rear Panel
Ultra Slim 4K HDMI 2-Port Splitter 2.2 Rear Panel Name Description HDMI input port. Connect with HDMI or DVI source device such as DVD/ Blue-ray HDMI output ports, connect to HDMI displays, automatically capture the input resolution Power socket, plug a DC 5V power adapter into this socket and DC 5V tighten the screw. -
Page 9: System Connection
Ultra Slim 4K HDMI 2-Port Splitter 3. System Connection 3.1 Usage Precautions 1) System should be installed in a clean environment and has a proper temperature and humidity. 2) All of the power switches, plugs, sockets and power cords should be insulated and safe. -
Page 10: Edid Management
Ultra Slim 4K HDMI 2-Port Splitter 3.4 EDID Management 4K HDMI Splitter 1x2 comprises 1 HDMI input port & 2 HDMI output ports, EDID management helps distributing and routing signals from the source at the resolution of the first detected display (detecting from output 1~2). For example: when output 1 connects with a 1080p display, 4K HDMI Splitter 1x2 will select 1080p as output resolution and distribute 1080p signal to displays connected to output 1~2. -
Page 11: Specification
Ultra Slim 4K HDMI 2-Port Splitter 4. Specification Video Input Input 1 HDMI Input Connector 1 female type A HDMI 1.4 Min/ Max Signal Level T.M.D.S. 2.9V~3.3V Input Impedance Differential 100Ω Video Output Output 2 HDMI Output Connector 1 female type A HDMI 1.4 Min/ Max Signal Level T.M.D.S. -
Page 12: Supported Input Video Formats
Ultra Slim 4K HDMI 2-Port Splitter 4.1 Supported Input Video Formats Input Resolution HDMI 720 x 480@60Hz R R 720 x 480I@30Hz R R 720 x 576@50Hz R R 720 x 576I@25Hz R R 1280 x720@50Hz R R 1280 x720@60Hz R... -
Page 13: Panel Drawing
Ultra Slim 4K HDMI 2-Port Splitter 5. Panel Drawing 100.00 mm 10.96 mm FIRMWARE... -
Page 14: Troubleshooting & Maintenance
4K HDMI Splitter 1x2 6. Troubleshooting & Maintenance Problems Causes Solutions The connecting cables may Check whether the cables not be connected correctly are connected correctly Color losing or no video or it may be broken. and in working condition. signal output in HDMI The display is not Make sure the resolution of... -
Page 15: After-Sales Service
4K HDMI Splitter 1x2 7. After-sales Service If there appear some problems when running 4K HDMI Splitter 1x2, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: We warrant that our products will be free from defects in materials and workmanship for three years, which starts from the first day you buy this product (The purchase invoice shall prevail). - Page 16 Product that does not meet this Limited Warranty and which is returned to KanexPro with a copy of customers’ receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.
- Page 17 4K HDMI Splitter 1x2 Brea, California KanexPro.com MPN: SP-4KPROSLIM1X2 HDMI are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Kanex is a trademark of Apogee Inc., registered in the U.S.
