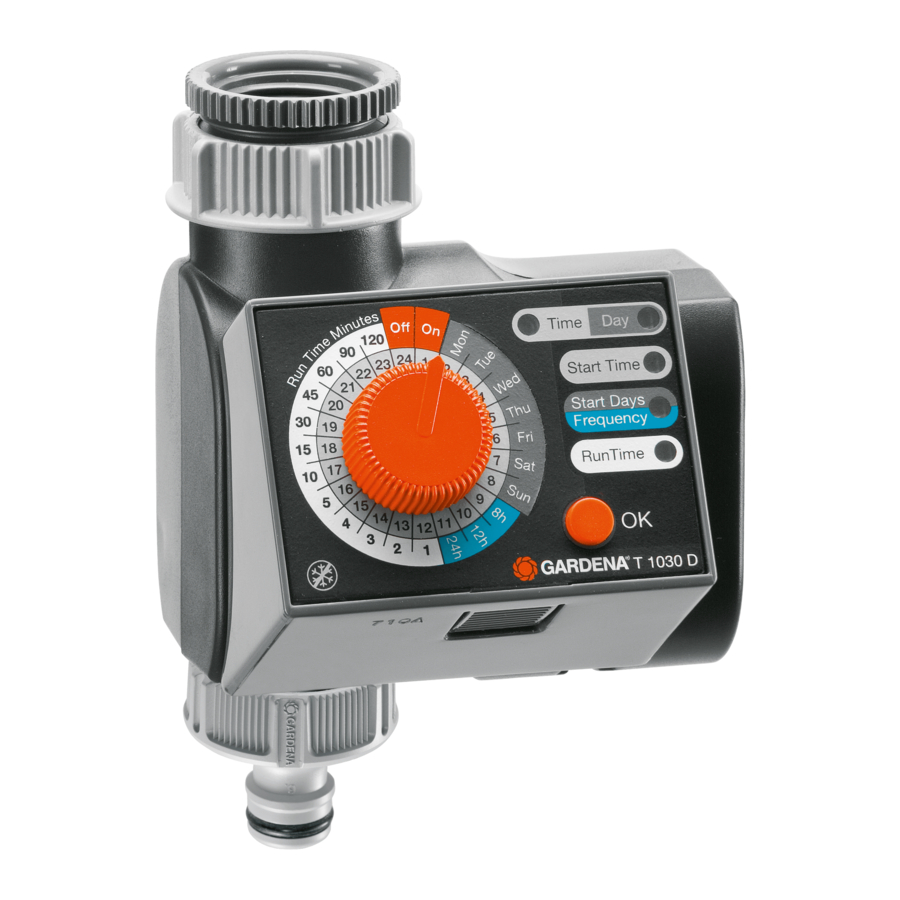

Gardena T 1030 D Operating Instructions Manual
Hide thumbs
Also See for T 1030 D:
- Operating instructions manual (19 pages) ,
- Operating instructions manual (22 pages) ,
- Operating instructions manual (22 pages)
Related Manuals for Gardena T 1030 D
Summary of Contents for Gardena T 1030 D
- Page 1 All manuals and user guides at all-guides.com GARDENA ® Operating Instructions Water Timer electronic Mode d’emploi Programmateur electronic T 1030 D Art. 1832-25...
-
Page 2: Table Of Contents
All manuals and user guides at all-guides.com GARDENA Water Timer electronic T 1030 D Welcome to the Garden of GARDENA... Translation of the original instructions from German. Please read these operating instructions carefully and observe the notes given. Use these instructions to familiarise yourself with the Water Timer electronic and its proper use as well as the notes on safety. -
Page 3: Where To Use Your Gardena Water Timer
All manuals and user guides at all-guides.com 1. Where to Use Your GARDENA Water Timer Intended use The GARDENA Water Timer is intended for private use in domestic and hobby gardens, exclusively for outdoor use, to control sprinklers and watering systems. - Page 4 All manuals and user guides at all-guides.com Battery : For functional safety reasons, only use a 9 V alkali- manganese (alkaline) battery type IEC 6LR61. The Water Timer will only run for approx. 1 year if the new alkaline battery has a nominal voltage of at least 9 V. v Check the battery before you buy it.
-
Page 5: Function
All manuals and user guides at all-guides.com 3. Function The GARDENA Water Timer electronic allows you to set different Control knob and OK button : watering cycles for different watering times independent of whether you are using a sprinkler, a sprinkler system installation or drip- head watering system to irrigate your garden. -
Page 6: Putting Your Water Timer Into Operation
All manuals and user guides at all-guides.com 4. Putting Your Water Timer into Operation 1. Press the release button Inserting the battery : remove the control unit from the housing of the Water Timer. 2. Insert the battery in the battery compartment. - Page 7 All manuals and user guides at all-guides.com Connecting your Water Timer : The Water Timer is fitted with a sleeve nut for taps with G 1 " (33.3 mm) thread. The adaptor supplied allows the Water Timer to be connected to taps with a G ³⁄₄ " (26.5 mm) thread. 1.
- Page 8 All manuals and user guides at all-guides.com Installing the anti-theft To protect your Water Timer against theft, the GARDENA Anti- protection (optional) : Theft Protection Art. No. 1815-00.791.00 is available from the GARDENA Service. 1. Fasten the bracket to the back of the Water Timer using the screw 2.
-
Page 9: Operating Your Water Timer
All manuals and user guides at all-guides.com 5. Operation Setting the watering program : The Water Timer control unit can be removed. This allows you to set the watering program somewhere other than where the Water Timer is to be used. Notes to program the water timer : •... - Page 10 All manuals and user guides at all-guides.com Setting the current day : 3. Set the current day on the outer grey scale by turning the control knob and confirm the day you have selected by pressing the OK button (e.g.: Mon Monday). The Day LED lights up for half a second and the current day has been stored.
- Page 11 All manuals and user guides at all-guides.com Setting the watering days : If you would like to water your garden every day, skip this point and continue with “Setting the Watering Cycle ”. 5. Set the watering day on the outer grey scale using the control knob and confirm your selection by pressing the OK button (e.g.: Mon Monday).
- Page 12 All manuals and user guides at all-guides.com Setting the watering time : 7. Set the watering time on the outer white scale (Run Time Minutes) using the control knob and confirm your selection by pressing the OK button (e.g.: 30 minutes). The Run Time LED lights up for half a second and the watering time has been stored.
- Page 13 The valve closes and remains closed, independent of the watering cycle you have set. To activate the set program again, you must reset the watering time to the time originally set. In order to save water we recommend installing the GARDENA Soil Moisture Sensor or Rain Sensor electronic.
-
Page 14: Putting Your Water Timer Out Of Operation
Store your Water Timer in a dry place away from frost before the first frost sets in. Disposing of flat batteries : v Please return flat batteries to a GARDENA dealer or dispose of them properly at your nearest recycling centre. Only dispose of batteries when they are flat. -
Page 15: Trouble-Shooting
The battery you inserted v Use an alkaline battery. for a short time. is not an alkaline battery. In the event of other faults please contact GARDENA Service. Repairs should only be carried out by GARDENA service centres or dealers authorised by GARDENA. -
Page 16: Available Accessories
All manuals and user guides at all-guides.com 8. Available accessories GARDENA Soil Moisture Sensor Art. No. 1188 GARDENA Rain Sensor electronic Art. No. 1189 GARDENA Anti-theft device Art. No. 1815-00.791.00 From GARDENA Service 9. Technical Data Min. / max. operating pressure :... -
Page 17: Service / Warranty
All manuals and user guides at all-guides.com 10. Service / Warranty GARDENA guarantees this product for 2 years (from date of purchase). This guarantee covers all serious defects of the unit that can be proved to be material or manufacturing faults. - Page 18 All manuals and user guides at all-guides.com Deutschland / Germany Belgium China Denmark Georgia GARDENA GmbH GARDENA Belgium NV / SA Husqvarna (China) Machinery GARDENA / Husqvarna ALD Group Central Service Sterrebeekstraat 163 Manufacturing Co., Ltd. Consumer Outdoor Products Beliashvili 8 Hans-Lorenser-Straße 40...
