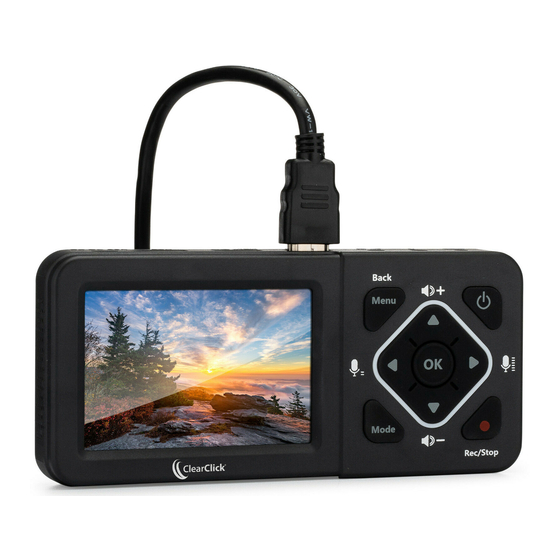

ClearClick HD Video Capture Box Ultimate Users Manual & Quick Start Manual
  1. Manuals
  2. Brands
  3. ClearClick Manuals
  4. TV Tuner
  5. HD Video Capture Box Ultimate
  6. Users manual & quick start manual

ClearClick HD Video Capture Box Ultimate Users Manual & Quick Start Manual

4k edition
Hide thumbs Also See for HD Video Capture Box Ultimate:

Advertisement

Quick Links

Download this manual
User's Manual & Quick Start Guide
1-Year Warranty & USA-Based Tech Support
Email Us At:
support@clearclick.tech
www.ClearClick.tech
Extend Your Warranty To 2 Years For FREE!
Get a FREE extra year of warranty just by registering your product
at:
www.ClearClick.tech
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the HD Video Capture Box Ultimate and is the answer not in the manual?

Questions and answers

Related Manuals for ClearClick HD Video Capture Box Ultimate

Summary of Contents for ClearClick HD Video Capture Box Ultimate

  • Page 1 User’s Manual & Quick Start Guide 1-Year Warranty & USA-Based Tech Support Email Us At: support@clearclick.tech www.ClearClick.tech Extend Your Warranty To 2 Years For FREE! Get a FREE extra year of warranty just by registering your product www.ClearClick.tech...

  • Page 2: Safety Precautions

    Browse All Our Products! If you’re looking for fun, unique, and easy-to-use technology, we’ve got it! Please visit our website to browse all of our products: www.ClearClick.tech Safety Precautions 1. Do not disassemble the unit. 2. Please note that the device and/or plugged in USB drives may become very warm during use.

  • Page 3: What's In The Box

    What’s In The Box? a. HD Video Capture Box Ultimate (4K Edition) b. HDMI Cable c. AV Adapter d. Power Adapter e. Power/USB Cable f. Remote Control g. User’s Manual Device Diagram & Explanation (continued on next page)
  • Page 4 LED Indicator: A red light appears when the device is either turned on or charging. A red light blinks when the device is recording. Power Button: Hold down to turn the device on or off. To turn off/on the device’s LCD only, press the button with a single press. Headphone/Microphone Jack: Input for microphone/headset or output for headphones AV IN: Input jack for RCA input (from VCR, camcorder, etc.)
  • Page 5 Remote Control Diagram & Explanation...
  • Page 6 Many HDMI video sources are encrypted with content protection called “HDCP,” even if the content is not copyrighted. Complying with laws, the HD Capture Box Ultimate does not disable or override content protection. ** Therefore, if you simply plug in a content-protected HDMI video source to the HD Capture Box Ultimate, it will not detect a signal or allow you to record/stream.
  • Page 7 Quick Start Guide – Normal Recording Mode 1. IMPORTANT: Read the note on page #6 before continuing! 2. Connect the power adapter to the “USB Power / PC” port of the HD Video Capture Box Ultimate. Plug in the power adapter to any power outlet. 3.
  • Page 8 7. Press the “Record” button on the HD Video Capture Box. 8. To stop recording, press the “Record” button again. (Or to pause recording, press the “OK” button. To resume recording, press the “OK” button again.) 9. To play back recordings on your device, press the “Mode” button TWICE to go to “Playback”...
  • Page 9 Quick Start Guide – Live Streaming or Recording with OBS (PC Only) 1. IMPORTANT: Read the note on page #6 before continuing! 2. Connect the included micro USB cable to the “USB Power / PC” port on the HD Video Capture Box. Plug the other end into your PC. (Macintosh not supported.) 3.

  • Page 10: Device Specifications

    Device Specifications Supported Video Resolutions 4096x2160 (30P) 3840x2160 (30P) 1920x1080 (60p) 1920x1080 (50p) 1920x1080 (30p) 1920x1080 (25p) Input 1920x1080 (24p) 1280x720 (60p) 1280x720 (50p) 720x480 (60p) 720x576 (50p) HDMI Output 1920x1080 (60p) USB Flash Drive/MicroSD Card Recording: 3840x2160 (30P). 1920x1080 (60p). 1280x720 (60p). 720x480 (60p).

  • Page 11: Troubleshooting & Faqs

    Troubleshooting (FAQ’s) 1. My video doesn’t show up on the LCD / the LCD is black. First, see the important notice on page #6 (HDMI sources only). Please make sure the HDMI or AV source input is connected properly. Make sure the “Video Source” setting in the device menu is set correctly. Make sure your HDMI cable is plugged into the “IN”...
  • Page 12 Here’s how to format your USB/SD card on your Mac… 1. In Finder, navigate to Applications -> Utilities -> Disk Utility. 2. On the left, click on your USB/SD drive. 3. Click the “Erase” button. 4. Next to “Format,” select MS-DOS FAT32. 5.
  • Page 13 PC or Mac with a better CPU and graphics card. 14. I have a question that isn’t listed here, or need further support. No problem! Please email us at support@clearclick.tech with your order number, and we will get back to you as soon as possible.
  • Page 14 www.ClearClick.tech...
