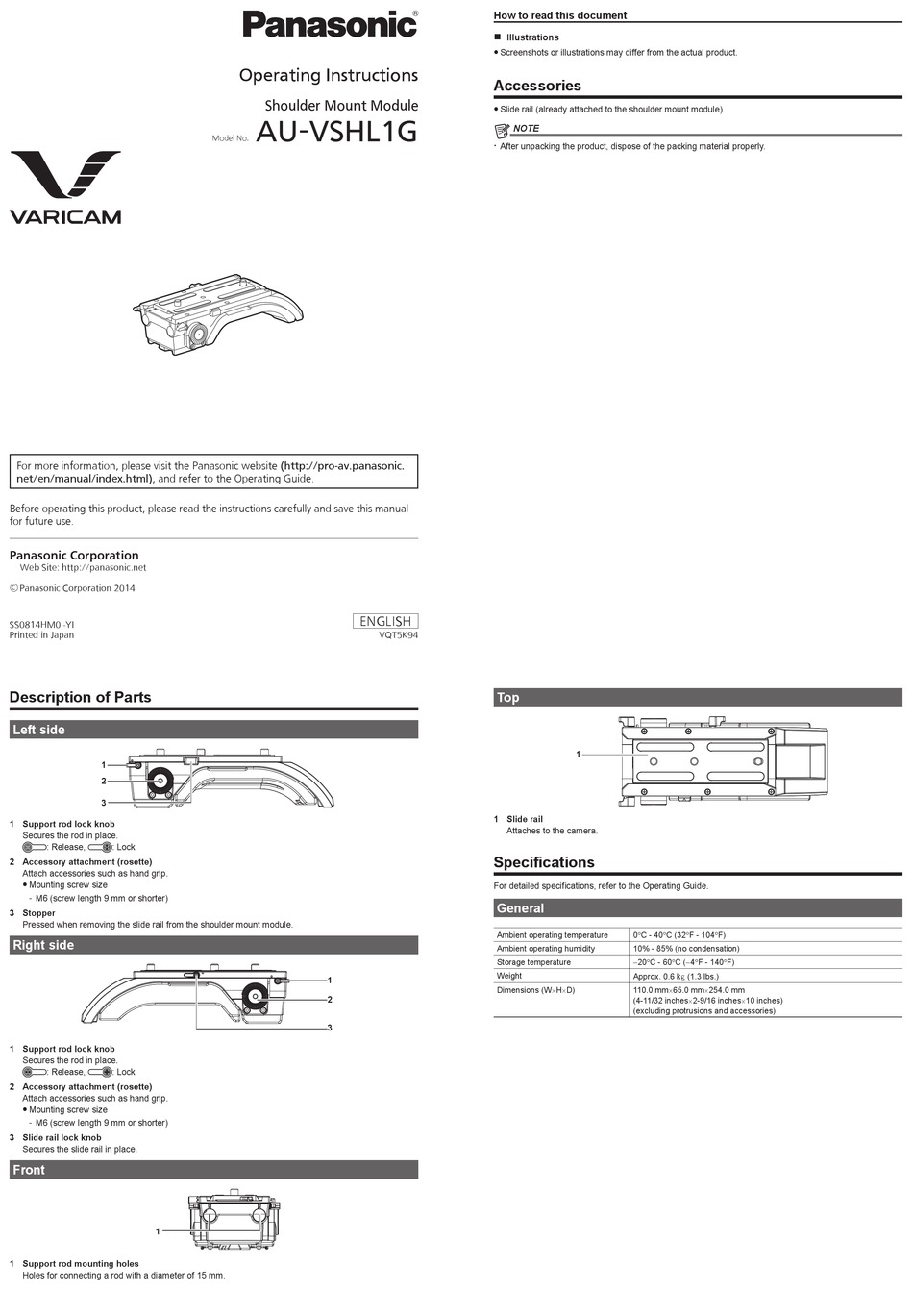

Panasonic VariCam AU-VSHL1G Operating Instructions

For more information, please visit the Panasonic website (http://pro-av.panasonic.
net/en/manual/index.html), and refer to the Operating Guide.
Before operating this product, please read the instructions carefully and save this manual
for future use.
Web Site: http://panasonic.net
©
Panasonic Corporation 2014
SS0814HM0 -YI
Printed in Japan
Description of Parts
Left side
1
2
3
1 Support rod lock knob
Secures the rod in place.
: Release, : Lock
2 Accessory attachment (rosette)
Attach accessories such as hand grip.
f Mounting screw size
- M6 (screw length 9 mm or shorter)
3 Stopper
Pressed when removing the slide rail from the shoulder mount module.
Right side
1 Support rod lock knob
Secures the rod in place.
: Release, : Lock
2 Accessory attachment (rosette)
Attach accessories such as hand grip.
f Mounting screw size
- M6 (screw length 9 mm or shorter)
3 Slide rail lock knob
Secures the slide rail in place.
Front
1
1 Support rod mounting holes
Holes for connecting a rod with a diameter of 15 mm.
Operating Instructions
Shoulder Mount Module
AU-VSHL1G
Model No.
ENGLISH
VQT5K94
1
2
3
How to read this document
r Illustrations
f Screenshots or illustrations may differ from the actual product.
Accessories
f Slide rail (already attached to the shoulder mount module)
@ NOTE
t After unpacking the product, dispose of the packing material properly.
Top
1
1 Slide rail
Attaches to the camera.
Specifications
For detailed specifications, refer to the Operating Guide.
General
Ambient operating temperature 0°C - 40°C (32°F - 104°F)
Ambient operating humidity 10% - 85% (no condensation)
Storage temperature
−20°C - 60°C (−4°F - 140°F)
Weight Approx. 0.6 k] (1.3 lbs.)
Dimensions (W×H×D) 110.0 mm×65.0 mm×254.0 mm
(4-11/32 inches×2-9/16 inches×10 inches)
(excluding protrusions and accessories)
