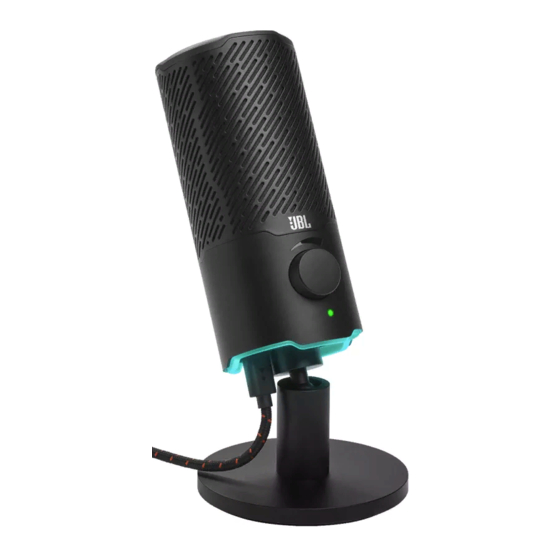

Summary of Contents for Harman JBL QUANTUM Stream

  • Page 1 Stream O W N E R ’ S M A N U A L...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ......................1 WHAT’S IN THE BOX ..................... 2 PRODUCT OVERVIEW ....................3 Controls ................................3 GETTING STARTED....................... 4 System compatibility ...........................4 Connecting USB power cable ........................4 Connecting a monitoring headphone .....................5 First-time setup (for PC only) ........................5 USING YOUR MICROPHONE ..................

  • Page 3: Introduction

    Introduction Congratulations on your purchase! This manual includes information on the JBL Quantum Stream microphone. We encourage you to take a few minutes to read this manual, which describes the product and includes step-by-step instructions to help you to set up and get started. Read and understand all the safety instructions before using your product.

  • Page 4: What's In The Box

    What’s in the box JBL Quantum Stream microphone USB power cable (USB-A to USB-C) QSG, warranty card and safety sheet - 2 -...

  • Page 5: Product Overview

    PRODUCT OVERVIEW Controls • Mutes or unmutes the microphone. Volume knob • Adjusts headphone volume. • Lights up white when the polar pattern is cardioid (default). • Lights up green when the polar pattern is omnidirectional. USB-C port Rotary joint Microphone stand Ring LED (RGB lighting + mute/unmute indicator) 3.5 mm headphone port...

  • Page 6: Getting Started

    Getting started System compatibility • PC and Mac (desktop or laptop) with USB-A or USB-C ports • Mobile devices with USB-C ports • PlayStation™: PS4/PS5 console with USB-A port • Nintendo Switch™ with USB-C port and Nintendo Switch™ console with USB-A port Connecting USB power cable 1.

  • Page 7: Connecting A Monitoring Headphone

     You can hear sounds from the microphone. First-time setup (for PC only) Download from www.jblquantum.com/engine to gain full access to features on your JBL Quantum Stream, such as EQ settings, polar pattern selection and lighting customization. - 5 -...
  • Page 8 1. Connect the microphone to your PC via USB connection. (See “Positioning”). 2. Go to “Sound Settings” -> “Sound Control Panel”. 3. Under “Playback” highlight “JBL Quantum Stream” and select “Set Default” -> “Default Device”. 4. Under “Recording” highlight “JBL Quantum Stream” and select “Set Default” ->...

  • Page 9: Using Your Microphone

    Using your microphone Selecting a polar pattern >2S The polar pattern defines a microphone’s sound pickup sensitivity related to its angle and directions. Select an appropriate polar pattern according to your recording needs. • Hold the volume knob for 2 seconds to switch between cardioid (default) and omnidirectional.

  • Page 10: Positioning

    Positioning For optimal performance, speak towards the side instead of the top of the microphone. Recommended Not recommended Mute/unmute × 1 >5S • Press on the top to mute or unmute the microphone. Ring LED color Meaning Microphone status RGB lighting on, mute/unmute Muted indicator in red RGB lighting on, mute/unmute...
  • Page 11 • Hold for 5 seconds to turn off RGB light on the ring LED. Hold the same button for 5 seconds to turn it on again. Ring LED color Meaning Microphone status RGB lighting off, mute/unmute Muted indicator in red (30% brightness) RGB lighting off, mute/unmute Unmuted indicator off...

  • Page 12: Mounting Options

    Mounting options You can either place the microphone on an even surface directly or mount it with compatible accessories (not included). Mic mount with 5/8" male screw 1. Rotate counterclockwise to screw out the microphone from the stand. 2. Attach the microphone onto a mic mount (a tripod or boom arm etc.) with 5/8" (15.88 mm) male screw securely.

  • Page 13: Mic Mount With 1/4" Male Screw

    Mic mount with 1/4" male screw 1. Rotate counterclockwise to screw out the microphone from the stand. 2. Use a 3/32" (2.5 mm) slotted screwdriver to keep the threaded nut on the top of the stand in place. Then rotate counterclockwise to screw it out from the stand. 3.

  • Page 14: Shock Mount For 2.2" Diameter Microphones

    Shock mount for 2.2" diameter microphones 1. Rotate counterclockwise to screw out the microphone from the stand. 2. Attach the microphone onto a shock mount supporting 2.2" (55 mm) diameter microphones securely. - 12 -...

  • Page 15: Product Specifications

    Product Specifications MICROPHONE • Power required/consumption: 5 V 500 mA • Sample rates: 44.1 kHz / 48 kHz / 96 kHz • Bit rate: 16 / 24 bit • Capsules: 14 mm Electret Condenser Microphone • Polar patterns: Cardioid & Omni-directional •...

  • Page 16: Troubleshooting

    Make sure that the microphone is properly connected to your headphone and PC, Mac or gaming console device. • Make sure that you have chosen JBL Quantum Stream as the sound source of your PC, Mac or gaming console device. •...
  • Page 17 Speak towards the side instead of the top of the microphone. My voice cannot be heard by my teammates • Make sure that you have chosen JBL Quantum Stream as the recording device in the sound settings of your PC, Mac or gaming console device. •...
  • Page 18 HP_JBL_Quantum Stream_OM_SOP_EN_V3...
