Lincoln industrial PP: Owner's Manual

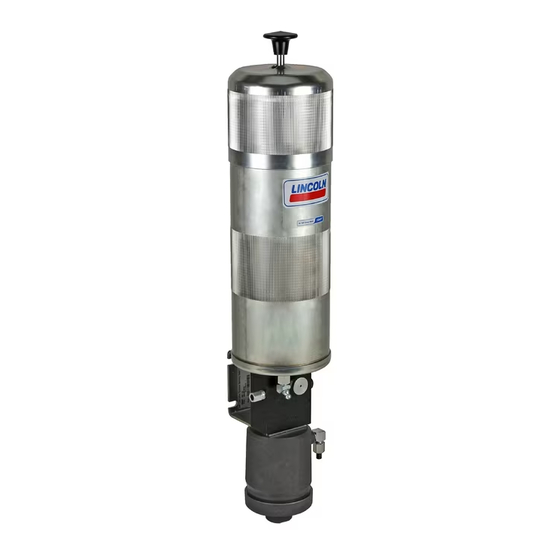

Quicklub grease pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Owner Manual
Technical Description
Contents
Safety instructions ................................................................. 2
Electrical connections ......................................................... 3
Putting into operation .......................................................... 3
Maintenance and repair ..................................................... 3
Quicklub Grease Pump Model PP ........................................... 4
Technical Data ......................................................................... 4
Commissioning of the system ................................................ 5
Pump and main lines ............................................................... 5
Typical outlet combination ........................................................ 5
LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259 • Tx 466088
Quicklub Grease Pump
Model PP

Table of contents

Page
Contents
PP with 1,5-litre reservoir (Front view) ........................................ 6
PP with 1,5-litre reservoir (Side view) ........................................ 7
PP with 0,4-litre reservoir (Side view) ........................................ 8
Filling instruction for model PP 4 ............................................... 9
Spare part list ........................................................................ 10
Troubleshooting .................................................................... 11
Declaration by the manufacture .............................................. 13
2.1A-28001-A94
Page
Page 1 from 13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PP: and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lincoln industrial PP:

Summary of Contents for Lincoln industrial PP:

  • Page 1: Table Of Contents

    Owner Manual Technical Description 2.1A-28001-A94 Quicklub Grease Pump Model PP Table of contents Contents Page Contents Page Safety instructions ..............2 PP with 1,5-litre reservoir (Front view) ........6 Electrical connections ............3 PP with 1,5-litre reservoir (Side view) ........7 Putting into operation ............

  • Page 2: Safety Instructions

    Owner Manual Technical Description 2.1A-28001-A94 Safety Instructions The Operating Manual contains important instructions regarding Safety instructions for maintenance, inspection and installation safe, proper and economical operation of the pump/system. services Keeping to these instructions will avoid risks, reduce repair costs The user make sure that all maintenance, inspection and installation and down time and improve reliability and pump life.

  • Page 3: Electrical Connections

    Owner Manual Technical Description 2.1A-28001-A94 Maintenance and repair The following items must be considered: Electrical connections All operations on electrical equipment must be out by qualified All repair work must be executed only by authorized and quali- staff only. fied personnel using original spare parts. Prior to any pump repair, the following instructions must be com- Electrical connection of level controls •...

  • Page 4: Quicklub Grease Pump Model Pp

    Owner Manual Technical Description 2.1A-28001-A94 Quicklub Grease Pump Model PP Model Part No. PP 4 604-25104-1 PP 15 604-25105-2 Technical Data Pump pressure ratio ........40:1 Air pressure ........min. 4 bar ........max.10 bar Max. operating pressure ........ 300 bar Air inlet ........

  • Page 5: Commissioning Of The System

    Owner Manual Technical Description 2.1A-28001-A94 Commissioning of the system Pump and main lines After the reservoir has been filled with the recommended lubricant the counter nut of the vent screw must be loosened and the vent screw opened by maximum one turn ( DO NOT REMOVE). Also disconnect the main lines from the metering device inlets.

  • Page 6: Pp With 1,5-Litre Reservoir (Front View)

    Owner Manual Technical Description 2.1A-28001-A94 PP with 1.5-litre reservoir (Front view) 1012a97a Page 6 from 13 LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259 • Tx 466088...

  • Page 7: Pp With 1,5-Litre Reservoir (Side View)

    Owner Manual Technical Description 2.1A-28001-A94 PP with 1.5-litre reservoir (side view) 1013a97a Page 7 from 13 LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259 • Tx 466088...

  • Page 8: Pp With 0,4-Litre Reservoir (Side View)

    Owner Manual Technical Description 2.1A-28001-A94 PP with 0.4-litre reservoir (side view) 1014a97 Page 8 from 13 LINCOLN GmbH • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259 • Tx 466088...

  • Page 9: Filling Instruction For Model Pp 4

    Owner Manual Technical Description 2.1A-28001-A94 Filling instruction for model PP 4 Remove pump reseroir with cover 1015a97 Immerse open part of pump reservoir into grease. Pull piston guide rod vigorousl< upwards and lock it into groove. Avoid air inclusions. 1016a97a Screw reservoir onto pump.

  • Page 10: Spare Part List

    Owner Manual Technical Description 2.1A-28001-A94 Spare Parts List PP with 1,5-litre reservoir PP with 0,4-litre reservoir Description Part No. Description Qty. Part No. Hex. socket head screw 201-12018-3 Hex. nut 207-12138-4 Hex. socket head screw 201-12594-1 Self-locking hex. nut 207-12473-3 Hex.

  • Page 11: Troubleshooting

    Owner Manual Technical Description 2.1A-28001-A94 Troubleshooting • Fault: Pump operates without discharging lubricant • Cause • Remedy • Lubricant reservoir is empty. • Check reservoir, refill, if necessary. • Air pockets in lubricant. • Vent air from pump. See instructions „ Commis sioning of the pump“.
  • Page 12 Owner Manual Technical Description 2.1A-28001-A94 • Fault: Lubricant discharged from reservoir thread • Cause • Remedy • Gasket 306-17831-3 either worn or damaged. • By means of grip pliers withdraw guide rod from top of reser- voir and latch. Unscrew reservoir from reservoir base and remove.

  • Page 13: Declaration By The Manufacture

    Owner Manual Technical Description 2.1A-28001-A94 Declaration by the manufacture as defined by machinery derective 89/392/EEC, Annex II B Herewhich we declare that the supplied model of Pump Model PP..; PPG..;... is intended to be incorporated into machinery covered by this direc- tive and must not be put into service until the machinery into which it is to be incorporated has been declared in confirmity with the provi- sions of the directive.
