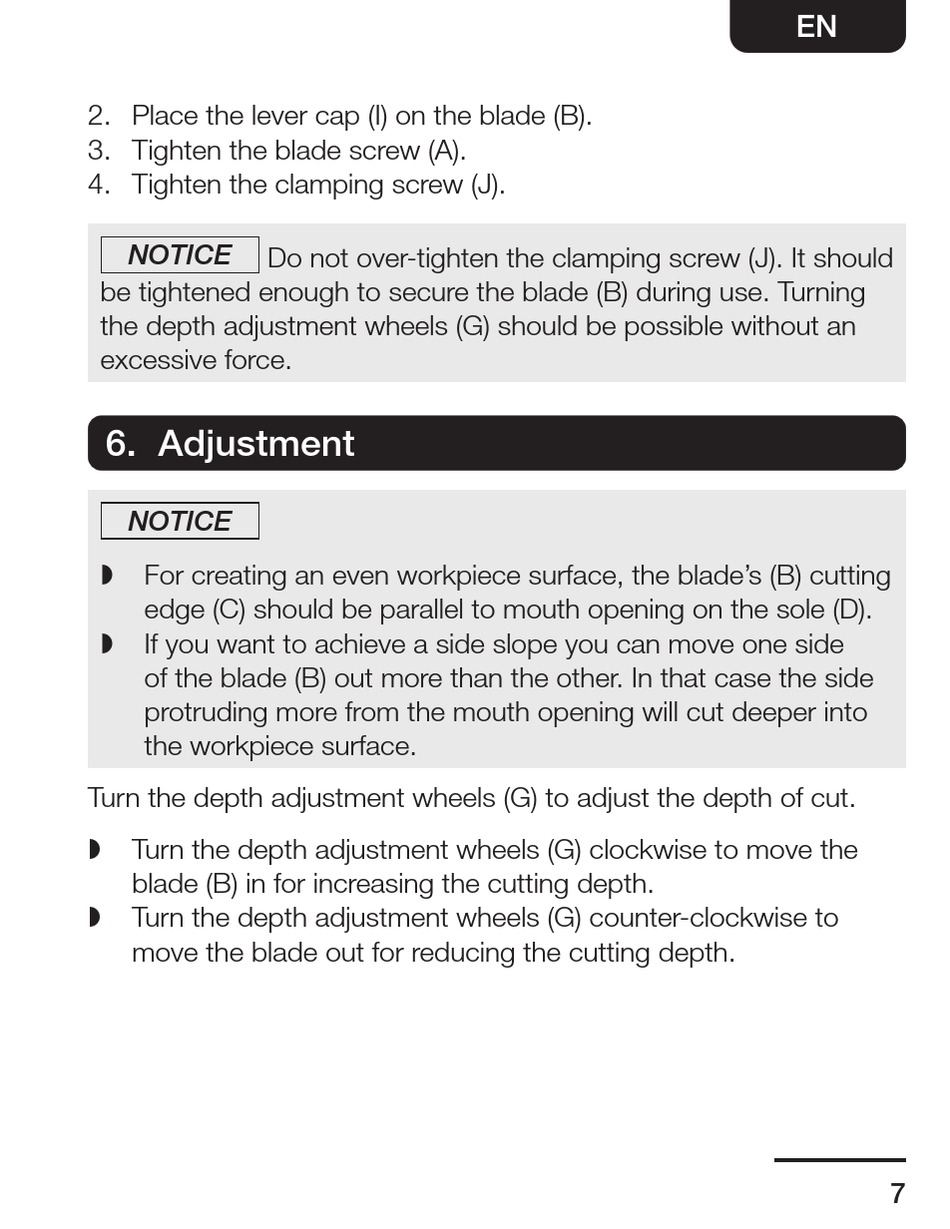

2� Place the lever cap (I) on the blade (B)�
3� Tighten the blade screw (A)�
4� Tighten the clamping screw (J)�
NOTICE
Do not over-tighten the clamping screw (J)� It should
be tightened enough to secure the blade (B) during use� Turning
the depth adjustment wheels (G) should be possible without an
excessive force�

6. Adjustment

NOTICE
» For creating an even workpiece surface, the blade's (B) cutting
edge (C) should be parallel to mouth opening on the sole (D)�
» If you want to achieve a side slope you can move one side
of the blade (B) out more than the other� In that case the side
protruding more from the mouth opening will cut deeper into
the workpiece surface�
Turn the depth adjustment wheels (G) to adjust the depth of cut�
» Turn the depth adjustment wheels (G) clockwise to move the
blade (B) in for increasing the cutting depth�
» Turn the depth adjustment wheels (G) counter-clockwise to
move the blade out for reducing the cutting depth�
EN
7
