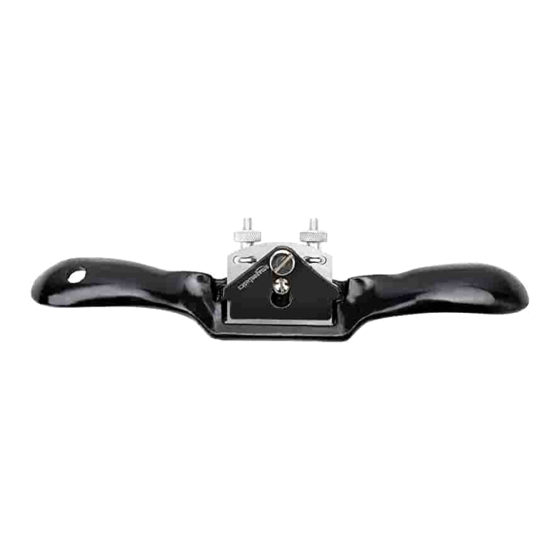

Spokeshave with Flat Base for Woodworking
Vastringue à Base Plane pour Travaux de Menuiserie
Schweifhobel mit Flacher Sohle zur Holzbearbeitung
Vastringa con Base Piatta per la Lavorazione del Legno
Raspador con Base Plana para Trabajar la Madera
Spookschaaf met Vlakke Basis voor Houtbewerking
スポークシ ェーブ、 木工用平らなベース
B07V3QLMS9
Advertisement
Table of Contents
Related Manuals for AmazonBasics B07V3QLMS9
Summary of Contents for AmazonBasics B07V3QLMS9
- Page 1 Vastringue à Base Plane pour Travaux de Menuiserie Schweifhobel mit Flacher Sohle zur Holzbearbeitung Vastringa con Base Piatta per la Lavorazione del Legno Raspador con Base Plana para Trabajar la Madera Spookschaaf met Vlakke Basis voor Houtbewerking スポークシ ェーブ、 木工用平らなベース B07V3QLMS9...
- Page 2 English 3 Français 13 Deutsch 23 Italiano 33 Español 43...
-
Page 3: Table Of Contents
Table of Contents 1. Important Safeguards ����������������������������������������������������������� 4 2. Intended Use ������������������������������������������������������������������������� 5 3. Before First Use �������������������������������������������������������������������� 5 4. Tool Overview ������������������������������������������������������������������������ 6 5. Assembly/Disassembly �������������������������������������������������������� 6 6. Adjustment ���������������������������������������������������������������������������� 7 7. Operation ������������������������������������������������������������������������������ 8 7�1 General rules ��������������������������������������������������������������� 8 7�2 Working techniques �����������������������������������������������������... -
Page 4: Important Safeguards
1. Important Safeguards Read these instructions carefully and retain them for future use� If this tool is passed to a third party, then these instructions must be included� When using the tool, basic safety precautions should always be followed to reduce the risk of injury including the following: CAUTION Risk of cuts! »... -
Page 5: Intended Use
» Do not modify the tool in any way unless instructed by this user manual� 2. Intended Use » This tool is intended for woodworking, mainly for creating even and plane surfaces� » This tool is intended for household use only� It is not intended for commercial use�... -
Page 6: Tool Overview
4. Tool Overview Blade screw Blade Cutting edge Sole Base Grip (on both sides) Blade adjustment wheels Blade adjustment slots Lever cap Clamping screw 5. Assembly/Disassembly NOTICE To disassemble the tool, follow the steps below in a reverse order� 1� Place the blade (B) onto the base (E)� The flat surface of the blade has to face upwards�... -
Page 7: Adjustment
2� Place the lever cap (I) on the blade (B)� 3� Tighten the blade screw (A)� 4� Tighten the clamping screw (J)� NOTICE Do not over-tighten the clamping screw (J)� It should be tightened enough to secure the blade (B) during use� Turning the depth adjustment wheels (G) should be possible without an excessive force�... -
Page 8: Operation
7. Operation For a secure operation always hold the tool with both hands on its grips (F)� General rules For best results: » Move the blade (B) with the direction of the wood fiber� » Move the blade downwards� Working techniques There are 3 techniques to guide the tool: 7.2.1. - Page 9 2� Place the tool with it’s sole (D) on the workpiece and push the tool away from yourself� 7.2.2. Pulling grip 1� Hold the tool with both hands with the blade (B) facing to you� Place the thumbs on top of the inner grips (F)� 2�...
-
Page 10: Maintenance
8. Maintenance De-rusting and rust protection » Use commercially available rust cleaner or citrus cleaner� Wear gloves and follow manufacture’s cleaning instructions� » Spray the metal components� Let them stand for several minutes then, using steel wool, brass brush or toothbrush, scrub off as much of the rust as you can�... -
Page 11: Sharpening
Sharpening Use quality oil sharpening stones� Lubricate them with an accurate lubrication solution� 1� Remove the blade (B) from the tool� 25° 30° 2� Place the cutting edge (C) against the sharpening stone at approximately 25° angle� 3� Slightly lift the blade (B) to a 30° angle� 4�... -
Page 12: Specifications
10. Feedback and Help Love it? Hate it? Let us know with a customer review� AmazonBasics is committed to delivering customer-driven products that live up to your high standards� We encourage you to write a review sharing your experiences with the product�... - Page 13 MADE IN CHINA FABRIQUÉ EN CHINE HERGESTELLT IN CHINA PRODOTTO IN CINA HECHO EN CHINA GEMAAKT IN CHINA 中国製 V01-05/20...
