Operating and installation instructions
WAREMA Mobile system
WMS Weather station eco
Keep for future use!
Valid from 1 January 2020
General information
1
2

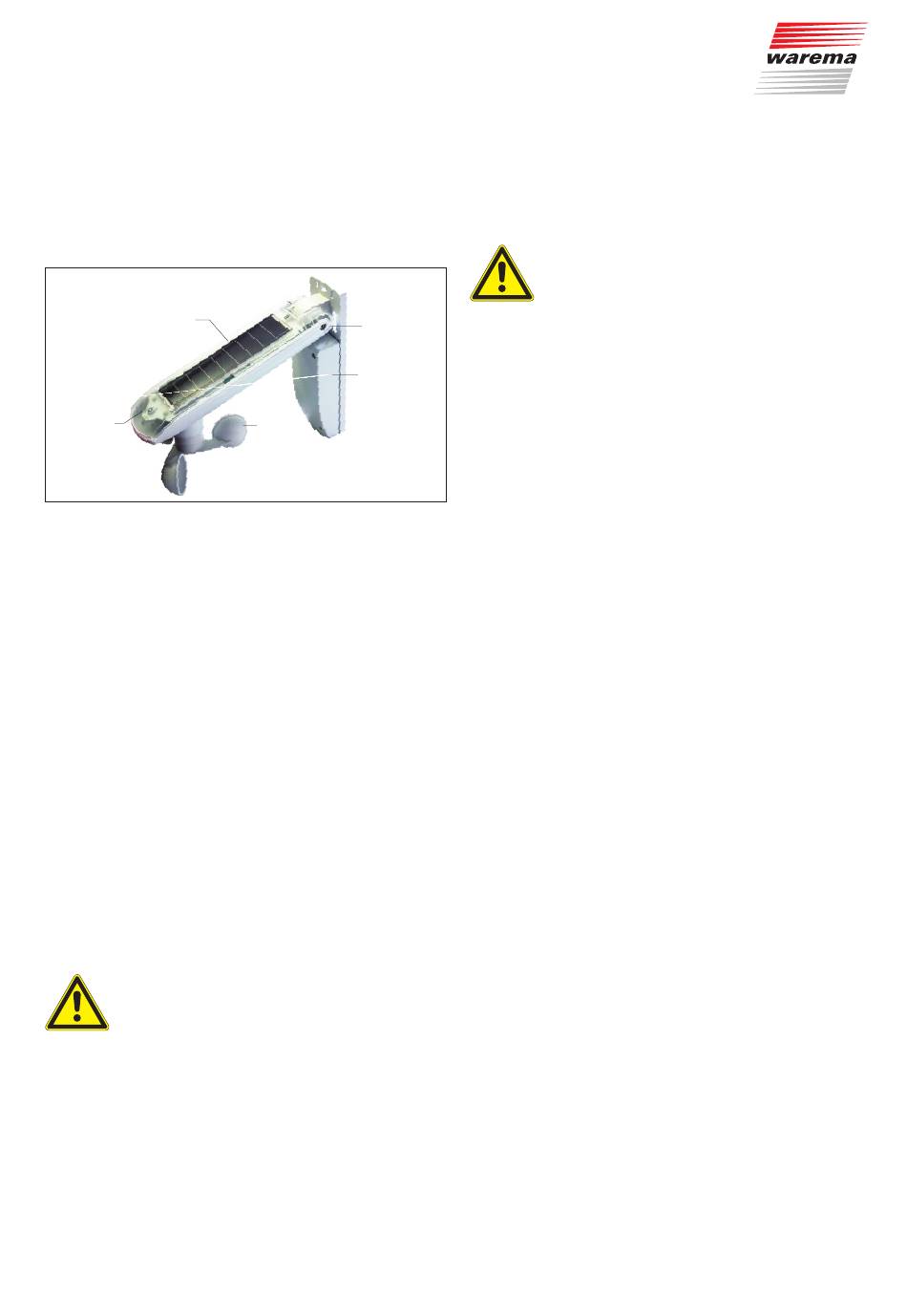

Fig. 1
WMS weather station eco
1 Solar panel
2 Photodiodes
3 Wind wheel
4 Joint
5 Mounting plate with cover
Three storage batteries for the power supply are found
under the cover.
The WMS Weather station eco enables the wireless control
of sun shading drives and is equipped with sensors for
brightness and wind speed. The station is solar powered.
The device transmits weather data to WMS-compatible
receivers.
Intended use
The WMS Weather station eco is an electronic device to
control WMS receivers. Any use other than the purpose
described in these instructions requires approval from the
manufacturer.
Safety instructions
W
ARNING
An automatically controlled mechanism
may begin to move unexpectedly!
Therefore, never place any objects in the area of move-
ment of an automatically controlled mechanism.
Disconnect the power supply of the controlled sun
shading products before maintaining or cleaning the
products.
2024730_d•en•2020-01-01
4
5
3
C
AUTION
Never press buttons on your transmitter arbi-
trarily without line of sight to the sun shad-
ing product. Children may not play with this
product – keep remote controls and trans-
mitters out of the reach of children!
The receiver (e.g. the radio plug receiver,
N
OTICE
radio tubular motor) cannot function in the
event of a power failure. Therefore, raise the
sun shading system early enough in case of
an approaching storm.
Due to both legal regulations for radio systems and struc-
tural factors, the operating range of radio remote controls
is limited. Sufficient radio reception must be ensured when
planning the project. This is especially the case where the
radio signal must pass through walls and ceilings. The
control unit should not be installed in the immediate vicin-
ity of metal components (steel beams, reinforced concrete,
fire doors).
Therefore, check that the receiver is functioning prop-
erly before the final installation.
Strong local transmitter systems (e.g. WLAN) with trans-
mission frequencies identical to those of the control
system may interfere with reception.
Installation
This device is designed for surface mounting on a build-
ing facade. It can also be mounted on a pole using the
included cable ties.
Included fixing materials:
 2 screws 4.5 x 40 mm
 2 screw anchors 6 mm
 2 spacers for wall and ceiling installation (Fig. 2)
 2 steel cable ties 360 mm
Use suitable fixing materials only. Depending on the sub-
structure (e.g. plastered outer insulation), other screws and
screw anchors may need to be used.
Important information on the installation loca-
tion
Attach the device outdoors at a readily accessible but
raised location.
Metal-clad buildings, domestic interference sources
(unshielded household appliances, television sets,
computers), supply lines and metallic objects such
as sheet metal enclosures must have a distance of at
least 0.5 m from the weather station.
We reserve the right to make technical modifications
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WMS Weather Station Eco and is the answer not in the manual?

Questions and answers

Summary of Contents for WAREMA WMS Weather Station Eco

  • Page 1 Intended use Included fixing materials: The WMS Weather station eco is an electronic device to control WMS receivers. Any use other than the purpose  2 screws 4.5 x 40 mm described in these instructions requires approval from the  2 screw anchors 6 mm...
  • Page 2: Wall Installation

    When selecting an installation location, ensure that the Fig. 4 Switch for activating the WMS Weather station eco photo sensor is exposed to the same brightness condi- Wall installation tions as the sun shading system being controlled. This means that you need to position the photodiodes ac- cording to the building facades being shaded.
  • Page 3: Initial Operation

    The line must be correctly positioned in the guide OTICE The weather station goes into sleep mode on the back of the mounting plate to ensure it is not regularly to save energy. It can be awakened pinched during installation. for one minute by briefly pressing the button.
  • Page 4: Commissioning Functions

    WMS hand-held transmitter com- > 10 s fort). The LEDs flash 5 times. OTICE Activate the WMS weather station eco before GREEN+RED: Reset and transmit delete commissioning. command To do this set the switch on the printed circuit...
  • Page 5 Assigning a weather station to channel Button/ Action/result display For a WMS receiver to be able to evaluate the weather data, the weather station must be allocated to the chan- The LED for the selected weather station e.g. nel of the receiver. Each WMS receiver can be assigned a flashes green.
  • Page 6: Control Functions

    Deleting the weather station from a channel Control functions To delete the weather station from the receivers of a chan- Switching the comfort control functions on/off nel again, proceed as follows: You can switch the comfort controls off and on temporarily to prevent the sun shading products from moving automat- ically.
  • Page 7 Display of the limit values using the WMS hand- Button/ Action/result held transmitter comfort display The following table shows the limit values that the display Press the info button repeatedly until the values of the LED lines on the WMS hand-held transmitter desired control function lights up.
  • Page 8 Changing the wind speed limits (specialist Button/ Action/result dealers only) display e.g. The parameter value of the wind monitor- AUTION ing is displayed in the upper row of LEDs Changing these settings may impair the (here, limit value 2). safety of the unit or reduce its effectiveness. RED: Value 0;...
  • Page 9: Maintenance

    Maintenance Liability Strong vibrations at the installation location (for exam- Failure to comply with the product information contained in ple, from frequent high wind loads) can loosen the fixing these instructions and any use of the device other than its screws.
  • Page 10: Heartbeat Function

    Disposal Function overview After use, the device must be disposed of according to The following table summarizes the functions of the WMS legal regulations or returned to your local recycling centre. weather station and the LED display. Heartbeat function Button Action/result The weather station cyclically sends a so-called "heartbeat Requesting the charge status of WMS...
  • Page 11: Technical Data

    This device meets the EMC directives for use in residential and commercial areas. WAREMA Renkhoff SE declares herewith that this radio system type [WMS weather station eco] is in compliance with the cur- rent guidelines. Ambient conditions Pollution degree Operating and storage °C...
  • Page 12: Troubleshooting

    Troubleshooting Type of malfunction Possible cause Remedy When a button is pressed on the weather The charge status of the weather station is The weather station must be exposed to station, only the red LED lights up or too low. daylight for at least 30 minutes after instal- flashes.
