WAREMA Weather station Operating And Installation Instructions

Operating and installation instructions
Weather station for WAREMA climatronic
Keep for future use.
Valid from 01 July 2013

General information

1
10
2

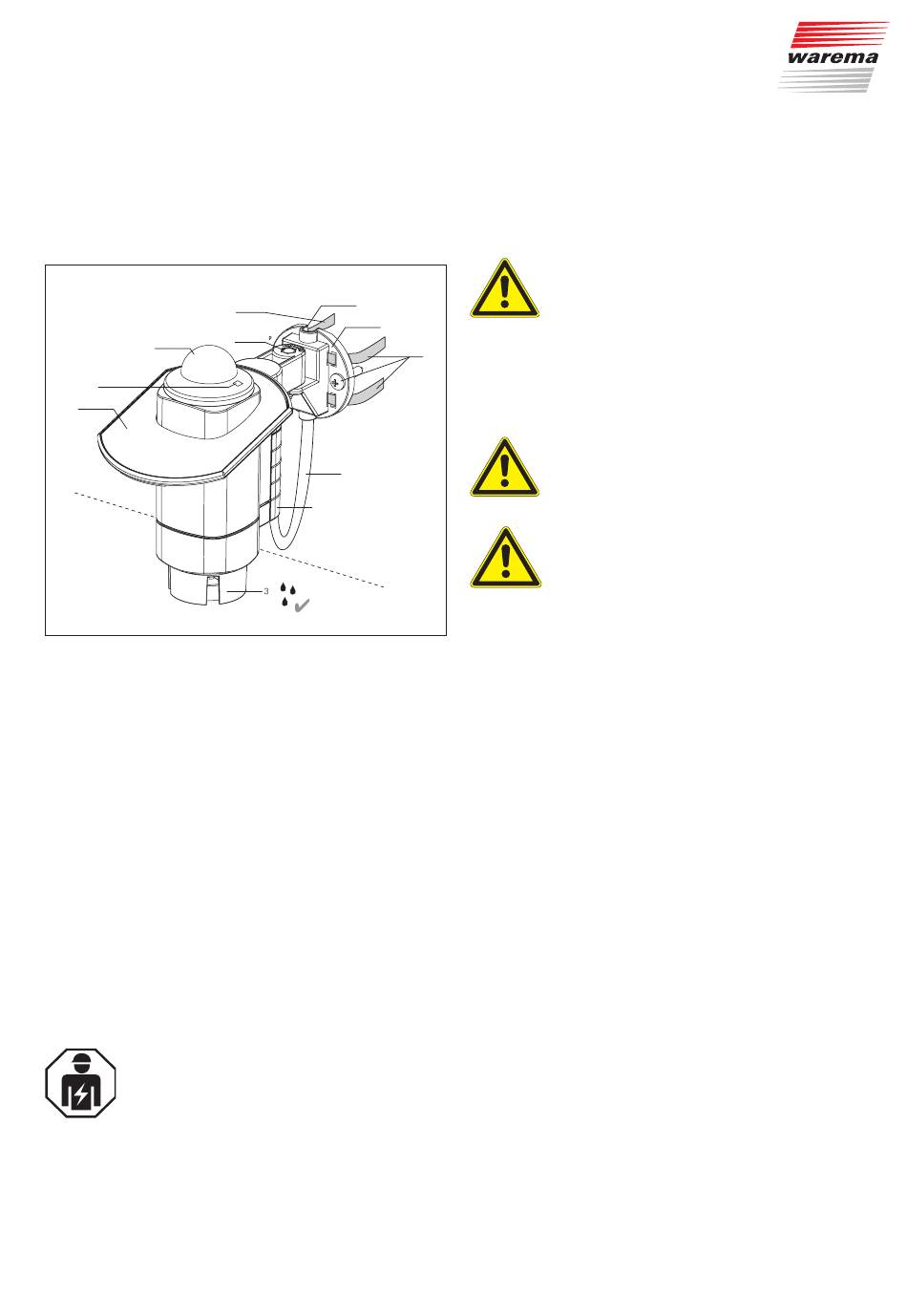

Fig. 1 Weather station
1 "Photo" and "dawn/dusk" sensor
2 Sensor surface for "precipitation" sensor
3 Opening for "wind speed" and "wind direction" sensor
4 Terminal cover and cable entry
5 Base plate
6 Cable guide
7 Joint
8 Routing of the connection line, e.g. 4x AWG26C UL bl
9 Cable ties for mast mounting, screws and nuts for pole
mounting (included)
10 Status LED

Intended use

The device has been developed for the collection of
measurement values in conjunction with a WAREMA
climatronic. The approval of the manufacturer must be
obtained for uses outside of the purposes listed in these
instructions.

Safety instructions

WARNING
The electrical installation must be per-
formed by a certified electrician in accord-
ance with the electrical installation regu-
lations published by the Association of
German Electrical Engineers (VDE 0100)
or the standards and regulations of the
country. The specialist must observe the
Installation instructions included with the
electrical device.
890013_f•en•2015-11-01
6
9
5
7
8
4
WARNING
If hazard-free operation cannot be as-
sumed, the device may not be started or
must be deactivated. This assumption is
justified
 I f the housing or the supply lines show signs
9
of damage,
 The device is no longer working.
WARNING
The sensor may only be operated with
safety extra low voltage.
WARNING
It is important to comply with the follow-
ing instructions in the interest of personal
safety.
Do not allow children to play with the operating elements
■
of the control or remote control. Store the remote controls
out of reach of children!
Make sure that no persons or objects are in the range of
■
movement of the driven parts (blinds, window, etc.).
Disconnect the product from the supply voltage if clean-
■
ing or other maintenance work must be performed!
Function
The weather station records precipitation events such as
rain or snow, wind speed and direction, ambient bright-
ness and dawn/dusk, and receives the radio time tele-
gram. The weather station only needs to be connected as
a network station; the 24 V DC voltage supply is provided
via a 4-wire bus cable.
Radio clock reception
The weather station receives the DCF77 time telegram,
transmitted by radio, with the built-in radio clock receiver
and provides it to the internal real-time clock in the control
panel.
Rooflight opening for brightness measurement
Four photo sensors arranged at right angles record the
ambient brightness whereby sensor 1 also records dawn/
dusk values in a second measuring area.
Sensor surface to detect precipitation
A switch signal is triggered by the sensor in the event of
precipitation in the form of drizzle, rain or snow. The sen-
sor surface can be heated. If the outside temperature falls
below +15 °C or precipitation is registered, the heater is
activated and thereby prevents triggering due to high rela-
tive humidity alone or ice formation at negative tempera-
tures. After the sensor surface has detected precipitation,
it quickly dries again because of the heating.
We reserve the right to carry out improvements
®
