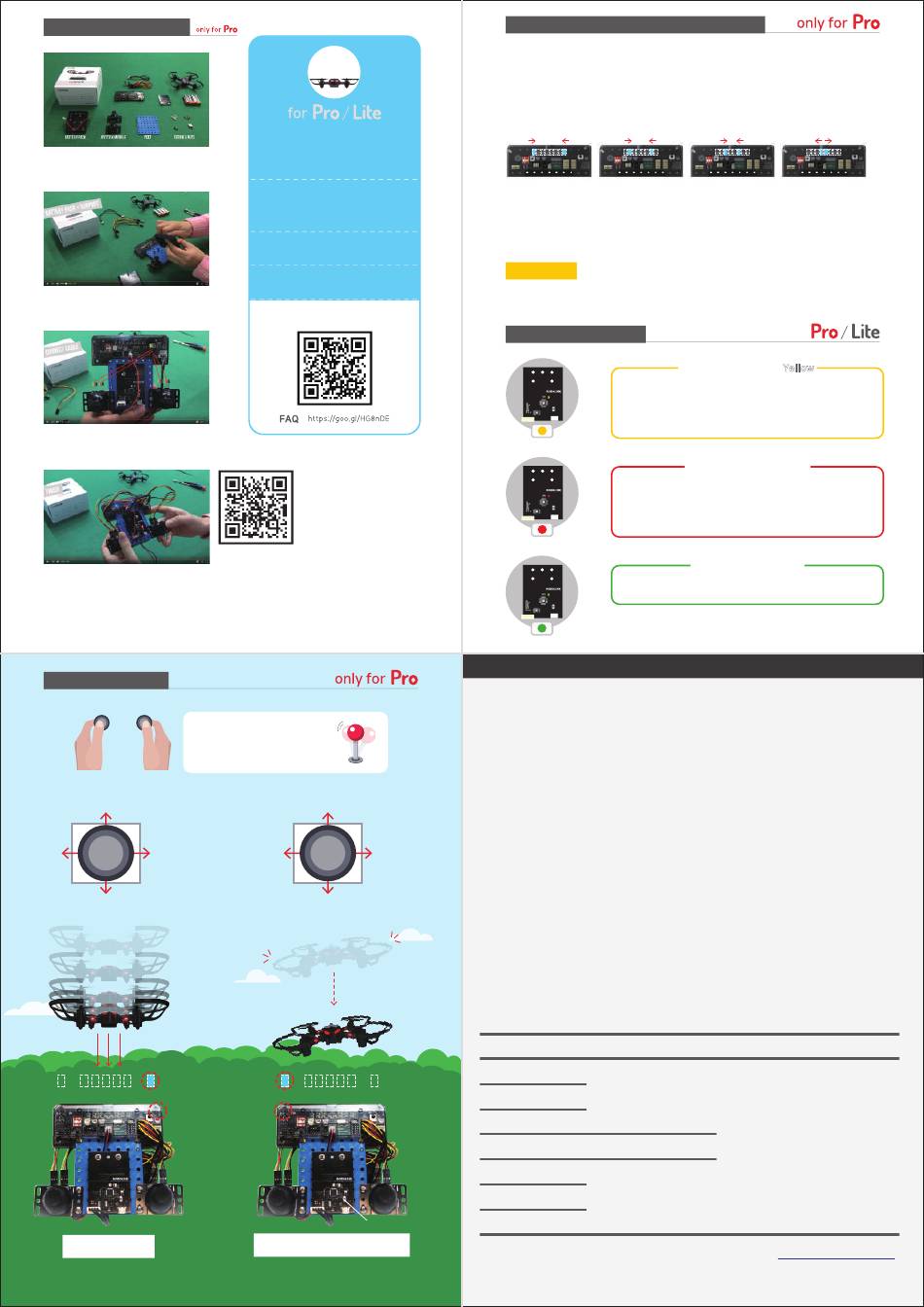

Build it - Assemble
1) Check if all components are prepared.
2) Assemble the controller with compo-
nents.
3) Connect the board and cable while
paying attention to cable's color.
4) Turn on the power of Inventor Board and CoDrone, and then pair each other.
▶ Refer to "Connect CoDrone to Inventor Board" on the next page.
Play it - Control
Control the drone
with joystick
Up
Turn Turn
Left Right
Down
The rightmost
sensor
Landing
FAQ
When CoDrone doesn't do
hovering and keeps going up,
When CoDrone doesn't fly even
though the propeller is turning,
When CoDrone's motor doesn't work,
When the propeller broke,
Check FAQ to solve the problems
Youtube Video
https://youtu.be
/nwFUgs5sKpc
Forward
Left Right
Backward
The leftmost
sensor
Button
Emergency Stop
*In cases of emergency, press BLE Board's
switch twice in a row. The drone will stop
its operation immediately.
Connect CoDrone to Inventor Board
1. Turn on CoDrone's power.
2. Turn on Smart Inventor Board's power.
3. Wait for the connection.
4. LED lights on the Board move to the center and then stop.
5. Bluetooth(BLE) Board's LED light changes to green.
6. CoDrone's LED stops blinking.
7. All pairing processes complete.
Caution
If CoDrone unexpectedly powered off or pairing failed, repeat the procedures 1~7 above.
BLE Board Status
Use the board in proper situations depending on LED lights on the board.
This mode appears at first when you connect the power to BLE Board.
Press the button to change red light to yellow light. This mode is used
to upload Arduino files or connect Rokit Simulator.
This mode used to pair CoDrone and BLE Board. Press the button once
to change yellow light to red light. Press the button for 5 seconds to
make this mode appears first.
Light changes to green when BLE Board and CoDrone pair successfully.
CoDrone Warranty
Quality Certificate
This certificate ensures protecting rights of consumers who bought CoDrone
Package. Our company will provide paid/free service to our customers, as in
the following details.
1. Warranty Details : Robolink will conduct following guarantees, under the
provision of Consumer Compensation Rules by Item. If manufactural defect
or spontaneous failure occurs before the expiration of the term of guarantee,
you are qualified to receive free services from us.
2. Term of Guarantee : Up to 1 year since the purchase date (Each component
in this package has different policies; read the Range of Assurance below)
3. Determination of Assurance : Will be determined after consultations by
telephone or online services, or by direct discussion in exhibitions.
4. Range of Assurance (Refer the table below)
Component Term of Guarantee
CoDrone's Mainboard
1 year since
Smart Inventor Board
the purchase
Charger
Battery
2 months since the purchase
Propellers
Not applied
Propeller's Guard
Propeller Motors
for
(Purple : Operating)
Communication mode Yellow
Pairing Standby mode Red
Pairing Complete Green
Guarantee Exclusions
1. Simply because consumers'change of
mind
2. Maintenance/Repair of devices after
term of guarantee
3. Failure or damage caused by customers'
misuse or mistake
4. Failure not caused from the device itself
5. Arbitrary dismantle or action taken by
customers
6. Problems caused by products from
other companies
