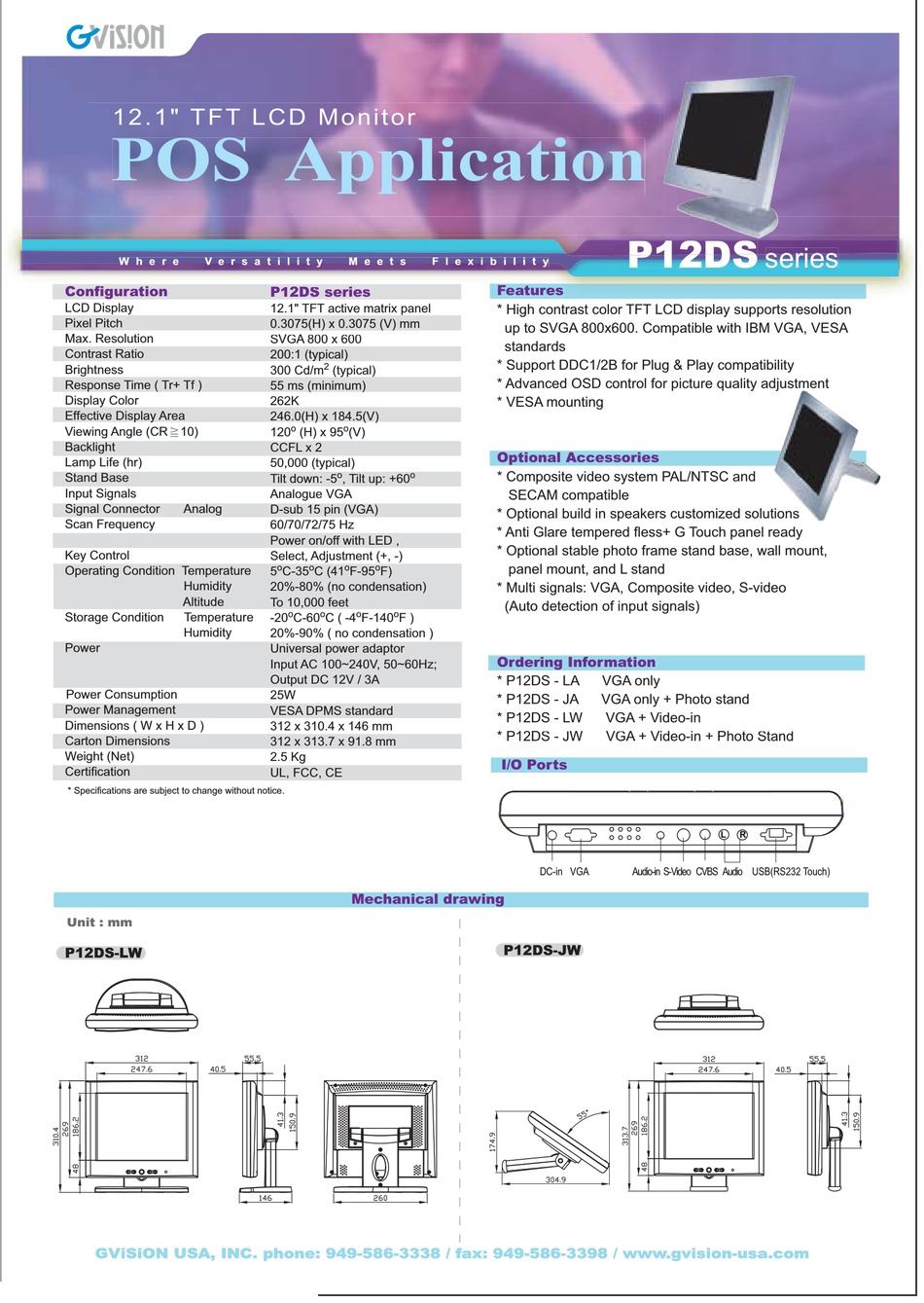

GVision P12DS Series Specifications

1 2 . 1 " T F T L C D M o n i t o r
POS Application
W h e r e W h e r e V e r s a t i l i t y V e r s a t i l i t y
Configuration g
LCD Display
Pixel Pitch
Max. Resolution
Contrast Ratio
Brightness
Response Time ( Tr+ Tf )
Display Color
Effective Display Area
Viewing Angle (CR 10)
Backlight
Lamp Life (hr)
Stand Base
Input Signals
Signal Connector Analog
Scan Frequency
Key Control
Operating Condition Temperature
Humidity
Altitude
Storage Condition Temperature
Humidity
Power
Power Consumption
Power Management
Dimensions ( W x H x D )
Carton Dimensions
Weight (Net)
Certification
* Specifications are subject to change without notice.
Unit : mm
P12DS-LW
GViSiON USA, INC. phone: 949-586-3338 / fax: 949-586-3398 / www.gvision-usa.com
M e e t s M e e t s F l e x i b i l i t y F l e x i b i l i t y
P12DS series
12.1" TFT active matrix panel
0.3075(H) x 0.3075 (V) mm ( ) ( )
SVGA 800 x 600
200:1 (typical)
2
300 Cd/m (typical)
55 ms (minimum)
262K
246.0(H) x 184.5(V)
o o
120 (H) x 95 (V)
CCFL x 2
50,000 (typical)
o o
Tilt down: -5 , Tilt up: +60
Analogue VGA
D-sub 15 pin (VGA)
60/70/72/75 Hz
Power on/off with LED ,
Select, Adjustment (+, -)
o o o o
5 C-35 C (41 F-95 F)
20%-80% (no condensation)
To 10,000 feet
o o o o
-20 C-60 C ( -4 F-140 F )
20%-90% ( no condensation )
Universal power adaptor
Input AC 100~240V, 50~60Hz;
Output DC 12V / 3A
25W
VESA DPMS standard
312 x 310.4 x 146 mm
312 x 313.7 x 91.8 mm
2.5 Kg
UL, FCC, CE
Mechanical drawing
P12DS P12DS P12DS
Features
* High contrast color TFT LCD display supports resolution
up to SVGA 800x600. Compatible with IBM VGA, VESA
standards
* Support DDC1/2B for Plug & Play compatibility
* Advanced OSD control for picture quality adjustment
* VESA mounting
Optional Accessories
* Composite video system PAL/NTSC and
SECAM compatible
* Optional build in speakers customized solutions
* Anti Glare tempered fless+ G Touch panel ready
* Optional stable photo frame stand base, wall mount,
panel mount, and L stand
* Multi signals: VGA, Composite video, S-video
(Auto detection of input signals)
Ordering Information
* P12DS - LA VGA only
* P12DS - JA VGA only + Photo stand
* P12DS - LW VGA + Video-in
* P12DS - JW VGA + Video-in + Photo Stand
I/O Ports
P12DS-JW
series series series
L R
