AxySpin R
Refrigerated Microcentrifuge
Operations Manual
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AxySpin R C2500-R-AXY and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axygen AxySpin R C2500-R-AXY

Summary of Contents for Axygen AxySpin R C2500-R-AXY

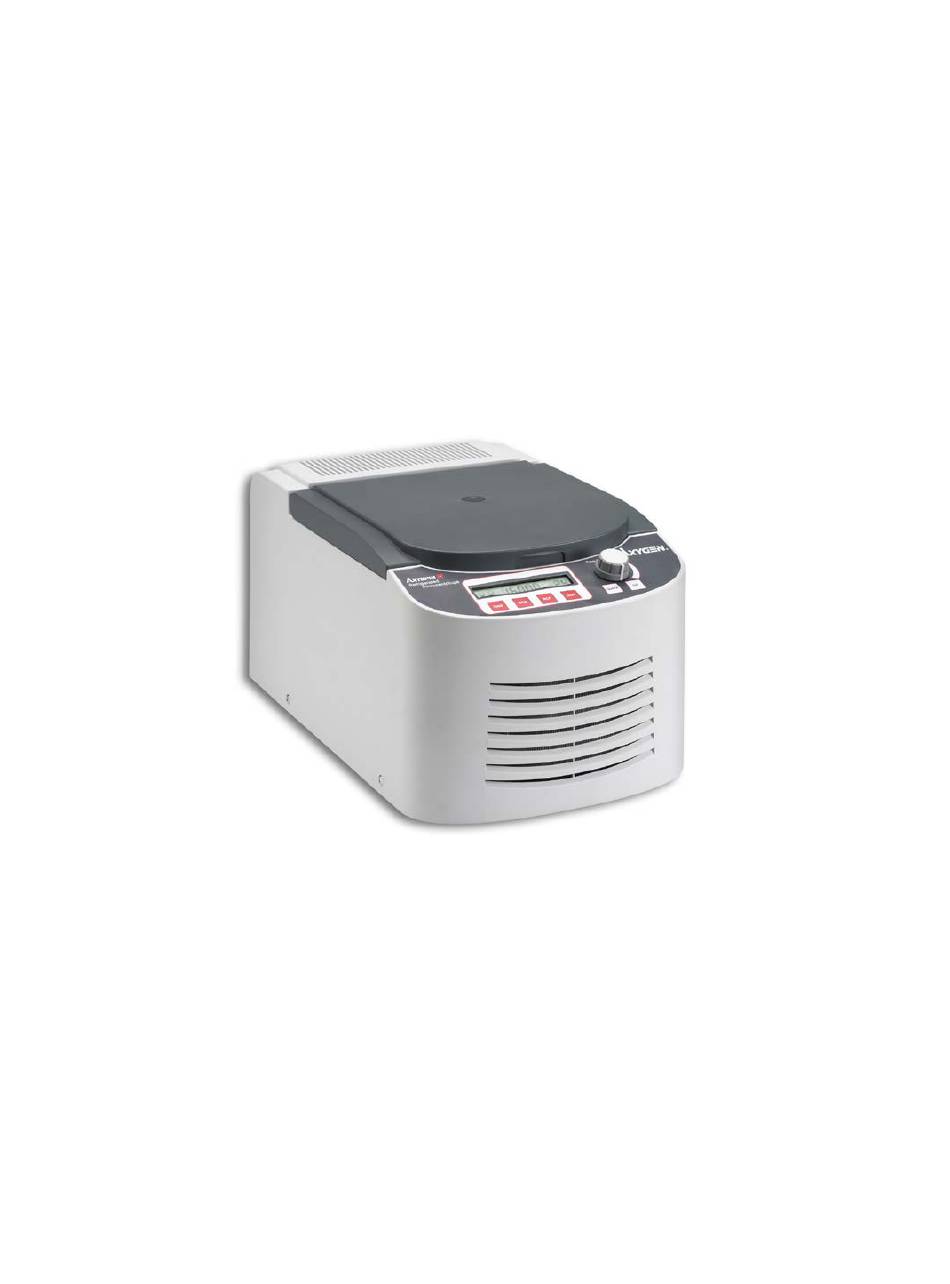

  • Page 1 AxySpin R Refrigerated Microcentrifuge Operations Manual Version 1.0...

  • Page 3: Table Of Contents

    Table of Content Safety Precautions ........1 1.1. Operation Safety Precautions ..... 1 General Description ........2 2.1. Features ..........2 Getting Started .......... 2 3.1. Unpacking ........... 2 3.2. Initial Operation ........2 3.3. Opening and Closing the Lid ....3 3.4.

  • Page 4: Safety Precautions

    To guarantee sufficient ventilation, ensure that the centrifuge has at least 30 cm of free space on all sides, including the rear. Repair should be carried out by Axygen Scientific' authorized service personnel only. Use original spare parts and accessories only.

  • Page 5: General Description

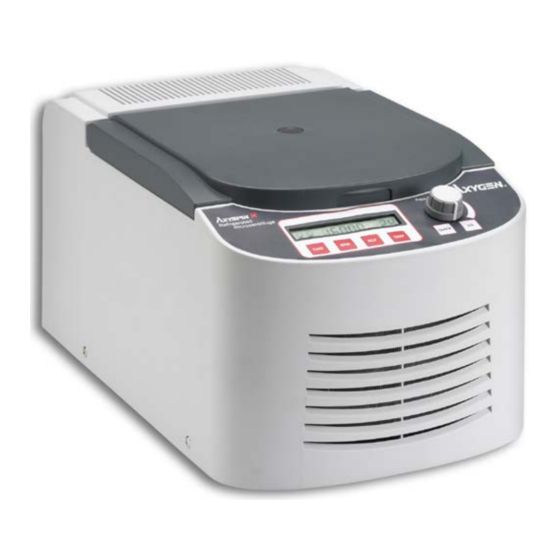

    General Description The AxySpin R refrigerated microcentrifuges is a compact, bench-top centrifuge which is suitable for both research and clinical laboratories. The motor is brushless and requires no routine maintenance. It is supplied with a 24 x 1.5/2.0 ml rotor for micro samples. The maximum speed of AxySpin R is 13,500 rpm (17,135 rcf).

  • Page 6: Opening And Closing The Lid

    Mains power and frequency “MUST” be compatible with the information given on the product label on the rear of the centrifuge. Connect the power cord to the power socket of the centrifuge, then to the power source. Switch the Power On/Off switch to turn on the centrifuge. After the LCD display is on and the buzzer beeps twice, the centrifuge is ready to operate.

  • Page 7: Starting And Stopping A Run

    Starting and Stopping a Run 3.5. Please refer Chapter 5 Operation to set up your preferred settings of time, speed and temperature. To start a run, press down the (START/STOP) knob. When the pre-set time expires, the centrifuge will stop automatically. To stop the centrifuge prior to the expiration of set time, press the (START/STOP) knob again.

  • Page 8: Overview

    Overview This section presents an overview of the AxySpin R microcentrifuge’s various components and control panel (see Figure 2) as well as the symbols and indicators on the LCD display (see Figure 3). Lid lock hole Air vents Power On/Off switch &...
  • Page 9 TEMP button  To adjust temperature setting LID button  Open the lid QUICK button  Quick-Spin centrifugation Audible Signals The audible signals are beneficial when you are familiarizing yourself with the operating procedure of AxySpin R refrigerated microcentrifuge. They can also be disabled if desired by pressing button six times.

  • Page 10: Operation

    Operation Users can pre-set the time, temperature and speed (RPM/RCF) before a run. Attention: Never attempt to operate the centrifuge with rotors or adapters that show signs of corrosion or mechanical damage. Never centrifuge strongly corrosive materials that may damage the rotors, accessories or bowl of the unit. Setting the Time (TIME) 5.1.

  • Page 11: Cooling

    Cooling 5.5. The temperature can be set from -10 °C and + 40 °C. The set temperature can also be changed during the run. Pre-Cooling Pre-Cooling starts a temperature-control run at 6,000RPM. It allows the rotor to be cooled down to the new, pre-set temperature quickly. Cooling down from room temperature to 4 °C takes approximately 8 min.

  • Page 12: Centrifuge Service

    Centrifuge Service 6.1. The brushless motor in the AxySpin R requires no routine maintenance. Any required service should be performed by authorized, qualified personnel only. Repairs performed by unauthorized personnel may void the warranty. Cleaning the Centrifuge 6.2. Always keep the centrifuge housing, rotor chamber, rotor and rotor accessories clean. All parts should be wiped down periodically with a soft cloth.

  • Page 13: Troubleshooting

    If the following solutions are not able to resolve the problem, please contact Axygen Scientific Inc.’ Service Department to arrange for authorized service.

  • Page 14: Appendix A: Technical Specifications

    Centrifuge is not See “Centrifuge will receiving power not start” Appendix A: Technical Specifications Model C2500-R-AXY Max. Speed 13,500 rpm Max. RCF 17,135 g Acceleration Time < 17 seconds Deceleration Time < 18 seconds Temperature Range –10°C to 40°C Max. Rotor Capacity 24 x 2.0/1.5ml tubes Rotor Lid Easy snap-on type...

  • Page 15: Appendix B: Warranty

    A Axygen Scien ntific Inc. The warranty doe es not cover defects ca aused by exce essive wear a and tear or da...
  • Page 16 Declaration of Conformity Number: CE 00502 Manufacturer: Labnet International, Inc, 31 Mayfield Ave., Edison, NJ 08837 Labnet International declares that the devices described below are in conformity with the EC directives listed. In the event of unauthorized modification of any of the devices listed below, this declaration becomes invalid.
  • Page 17 Axygen Scientific. 33210 Central Avenue Union City, CA 94587 U.S.A. TEL: 510-494-8900 FAX; 510-494-0700 EMAIL: SALES@AXYGEN.COM P/N: 401-lrmlab-10, 2008/8 AxySpin R™ Refrigerated Microcentrifuge...
