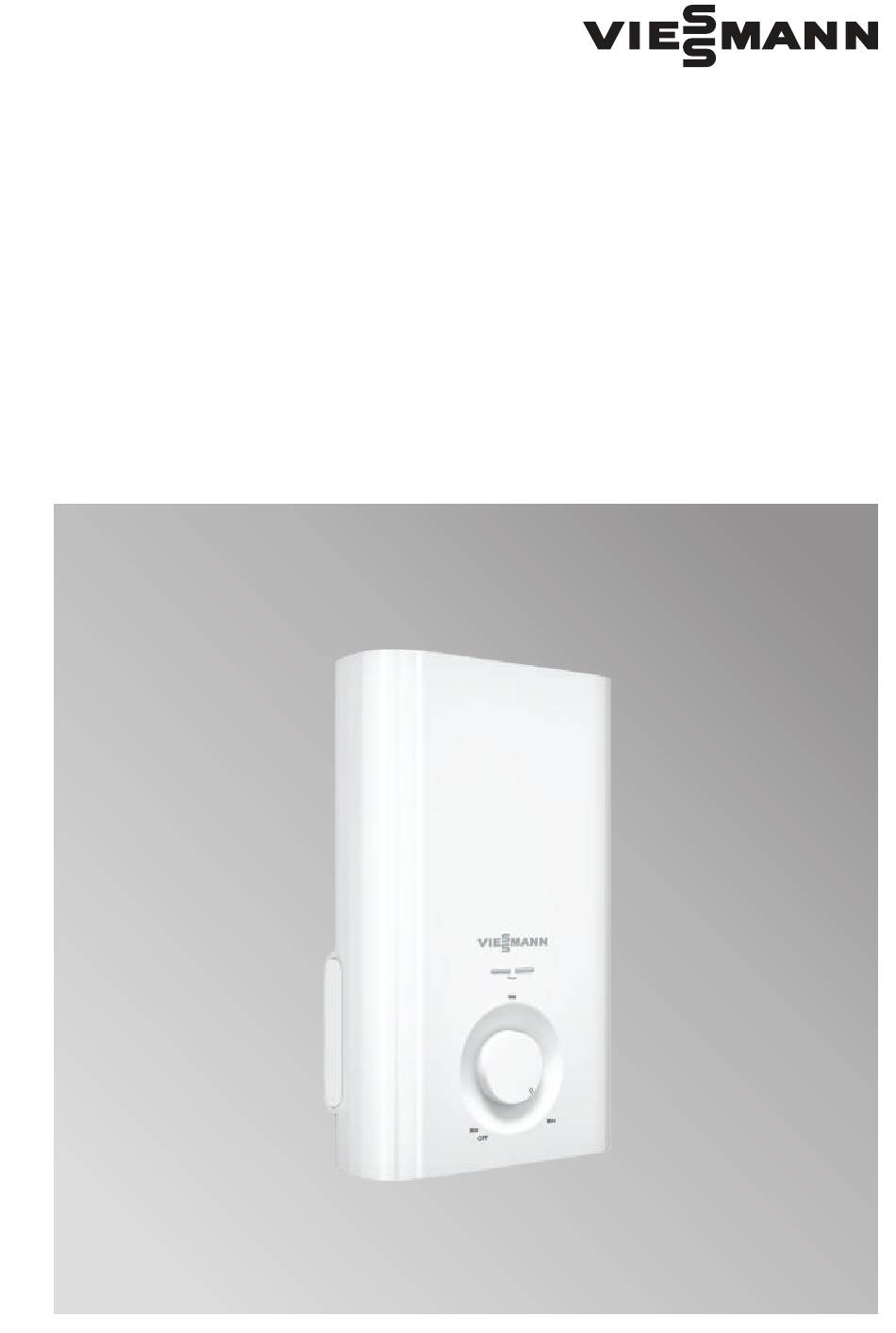

- Page 1 Operation Manual VITOWELL EASY C1 Instant Water Heater VITOWELL EASY C1...
-
Page 2: Parts Identification
Parts Identification Front Cover Thermostat LED Indicators Heater Tank Temperature Control Knob Terminal Block Stop Valve Main PCB Board Rail Support / Wall Bracket Water Outlet Connection Handshower TRIAC Adjustable Shower Holder Water Inlet Connection Slider Rail Reed Switch PVC Hose Mesh Filter Soap Tray LED Board... - Page 3 Important Safety Information In times of lightning/thunder, switch Products manufactured by us are off the electric supply to the instant safe provided they are installed, used water heater in advance to protect the and maintained in good working order instant water heater against possible in accordance with our instructions and damage.
- Page 4 Heater Unit Installation 260 mm 137 mm Rubber Rubber Washe Washe Screw A Select a suitable position in the Insert the Shower Holder and Soap bathroom. Tray into the Slider Rail. Pull out the Temperature Control Mount the Slider Rail to the Rail Knob and then remove the Screw A at Bracket.
- Page 5 Plumbing Procedure This Instant Water Heater is a THE WATER INLET AND OUTLET MUST BE INSTALLED single point system and the CORRECTLY , OTHERWISE IT “Water Outlet” can only MAY CAUSE A DAMAGE TO be fitted to the PVC Hose and THE HEATING ELEMENT.
-
Page 6: Electrical Installation
Electrical Installation Fuse Distributor Board FUSE Miniature Circuit Breaker (MCB) Double PVC cable over 2.5mm² ON/OFF Double Pole Switch ON/OFF Cable Position At Off NOTE: Refer to Table 1. for electrical loading and correct size of wire conductor. BROWN — LIVE (L) or RED BLUE or BLACK —... - Page 7 Electrical Loading Table Minimum Conductor Size (csa) Voltage Power Current On/Off Fuse / (AC) (kW) Switch (A) MCB (A) mm² Conduit Cable Flexible Cable 240~ 50/60Hz (Malaysia Modal) 230~ 50/60Hz 220~ 50/60Hz Test Run Turn on the water supply and Stop Valve, the water will flow through the Handshower.
- Page 8 Handshower Spray Action This innovative adjustable Handshower has 5 different spray actions (STANDARD, SOOTHE, JUMBO, MIX, MASSAGE). The actions are described as above. Clean the Handshower Head holes by using the soft brush from time to time. Recommended once a week. Note: Take care not to damage the holes of the Handshower Head during...
- Page 9 Maintainance FLOW REGULATOR CLOSE OPEN FILTER UNIT CLEANING INTERNAL STRAINER OPEN BUILT-IN FILTER CLOSE MESH FILTER Read the section ‘IMPORTANT SAFETY INFORMATION’ first. CLEANING PRECAUTION! Do not use thinner, alcohol, petrol or any other organic solution to clean the set, use only a damp cloth with mild detergent.
-
Page 10: Troubleshooting
Electric Water supply. supply. If it still fail to operate, contact Heater fail to operate, no power. Viessmann Customer Service Call Centre. Electric Water Heater Check other appliances are having same malfunction. phenomenal and contact local Electricity Supply Company. If it still fail to operate, contact Viessmann Customer Service Call Centre. -
Page 11: Wiring Diagram
Action/Cure Incoming water Adjust the 3 in 1 Stop valve. Electric Water flow too low. Heater no power. Electrical malfunction Contact Viessmann Customer Service of Electric Water Call Centre. Heater. Safety Thermostat Safety Thermostat cut-out operated. cut-out operated. Contact Viessmann Customer Service Call Centre. -
Page 12: Electrical Specification
Electrical Specification 3.3kW 230Va.c. 50/60Hz Min. INLET WATER PRESSURE 0.1 Bar (10kPa) Max. INLET WATER PRESSURE 6 Bar (0.6MPa) 210 x 343 x 87 mm 1.6 Kg (No Pump) - Page 16 #04-01/02...
