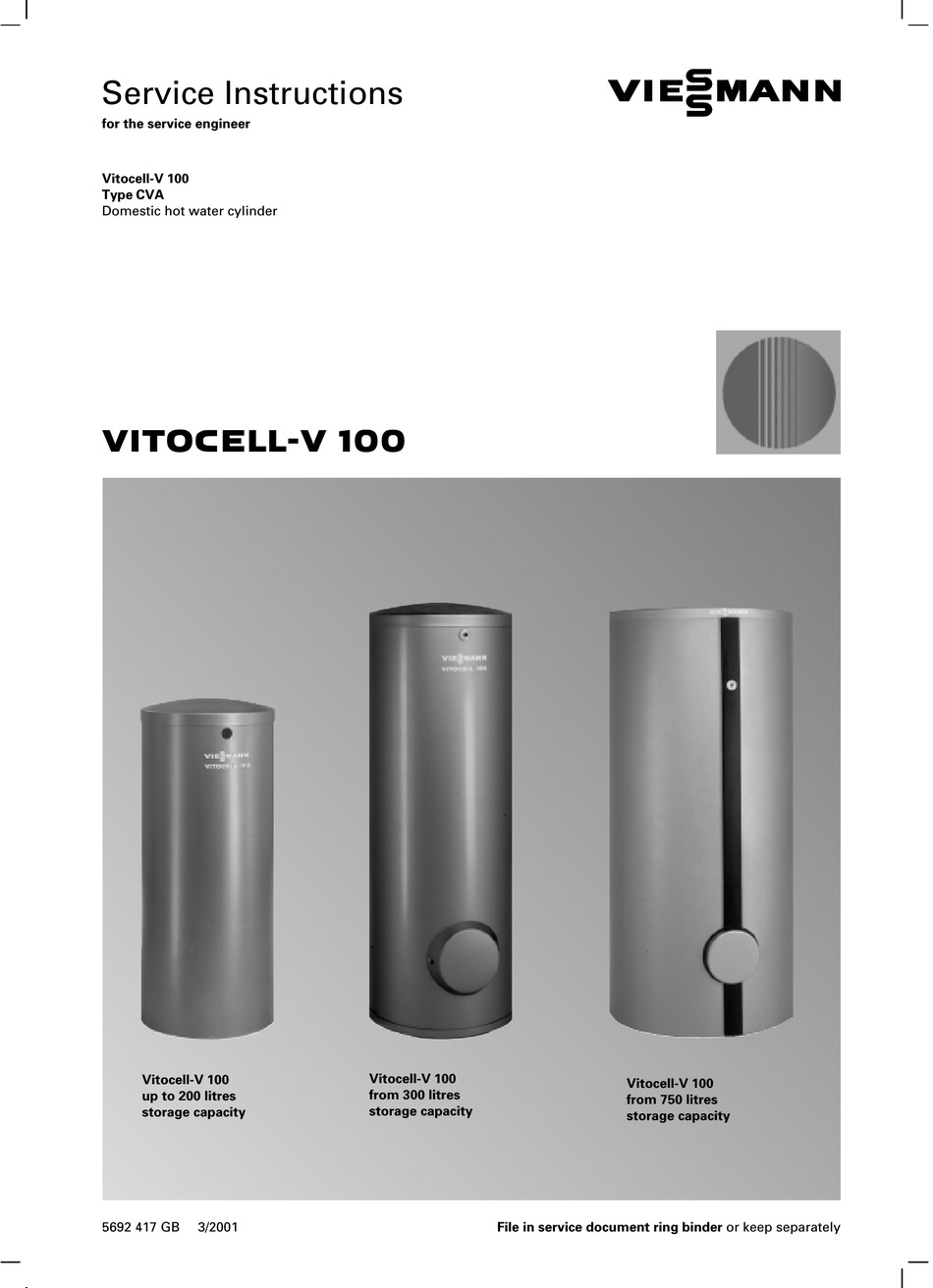

Service Instructions
for the service engineer
Vitocell-V 100
Type CVA
Domestic hot water cylinder
VITOCELL-V 100
Vitocell-V 100
up to 200 litres
storage capacity
5692 417 GB
3/2001
Vitocell-V 100
from 300 litres
storage capacity
File in service document ring binder or keep separately
Vitocell-V 100
from 750 litres
storage capacity
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Viessmann Vitocell-V 100 200
Summary of Contents for Viessmann Vitocell-V 100 200
-
Page 1: Service Instructions
Service Instructions for the service engineer Vitocell-V 100 Type CVA Domestic hot water cylinder VITOCELL-V 100 Vitocell-V 100 Vitocell-V 100 Vitocell-V 100 up to 200 litres from 300 litres from 750 litres storage capacity storage capacity storage capacity 5692 417 GB 3/2001 File in service document ring binder or keep separately... -
Page 2: Safety Instructions
Defective parts must be replaced which must be observed. being switched on again. with the appropriate Viessmann pro Disconnection must be carried out prietary components or equivalent by means of an isolating device parts which have been approved by which simultaneously isolates all Viessmann. - Page 3 Index Page General information Safety instructions ................... . Initial start-up Initial start-up .
-
Page 4: Maintenance
Maintenance Maintenance 160 to 500 litres storage capacity In accordance with DIN 1988 inspection and (if necessary) cleaning should be carried out two years after start-up at the latest and as and when required thereafter. Please note: In addition, we recommend that the condition of the magnesium anode should be checked once a year. - Page 5 Maintenance Maintenance (continued) 160 to 500 litres storage capacity 4. Clean the inside of the DHW cylinder 1. Drain the DHW cylinder on the do mestic hot water side. 2. Remove the hood A and the insu lating mat B. Please note: Cleaning can be carried out via both the top and bottom inspec...
- Page 6 Maintenance Maintenance (continued) 160 to 500 litres storage capacity 6. Start up the domestic hot water cylinder again 1. Connect the domestic hot water cylinder to the piping again. 2. Every time the unit is opened, fit new gaskets A to the flange covers B.
- Page 7 Maintenance Maintenance 750 and 1000 litres storage capacity In accordance with DIN 1988 inspection and (if necessary) cleaning should be carried out two years after start-up at the latest and as and when required thereafter. Please note: In addition, we recommend that the condition of the magnesium anode should be checked once a year.
- Page 8 Maintenance Maintenance (continued) 750 and 1000 litres storage capacity 4. Clean the inside of the DHW cylinder 1. Drain the DHW cylinder on the do mestic hot water side. 2. Remove the hood and the insulat ing mat A. 3. Remove the flange B. 4.
- Page 9 Maintenance Maintenance (continued) 750 and 1000 litres storage capacity 6. Start up the domestic hot water cylinder again 1. Connect the domestic hot water cylinder to the piping again. 2. Every time the unit is opened, fit a new gasket A to the flange cover B.
-
Page 10: Parts List
009 Cover strip (with 350 and 500 litres storage capacity) 010 Top insulation mat 011 Top panel 012 Hood insulation mat 013 Hood 015 Viessmann logotype 016 Vitocell logotype 028 Thermometer cover 029 Centering collar Parts not illustrated 020 Installation instructions... - Page 11 Additional information Parts list 750 to 1000 litres storage capacity Notes on ordering spare parts Parts Parts not illustrated Please state Part No. and Serial No. 002 Cover 020 Installation instructions of the equipment (see nameplate) as 003 Insulating mat, top 021 Operating instructions well as the Item No.
-
Page 12: Commissioning/Service Report
Commissioning/service report Initial start-up Maintenance/service Maintenance/service Maintenance/service Maintenance/service Date: Signature: Maintenance/service Maintenance/service Maintenance/service Maintenance/service Maintenance/service Date: Signature: Viessmann Werke GmbH & Co D-35107 Allendorf Tel: (0 64 52) 70-0 Fax: (0 64 52) 70-27 80 Internet: www.viessmann.de Viessmann Limited Hortonwood 32 Telford, Shropshire TF1 4EU Tel.: (01952) 670261...
