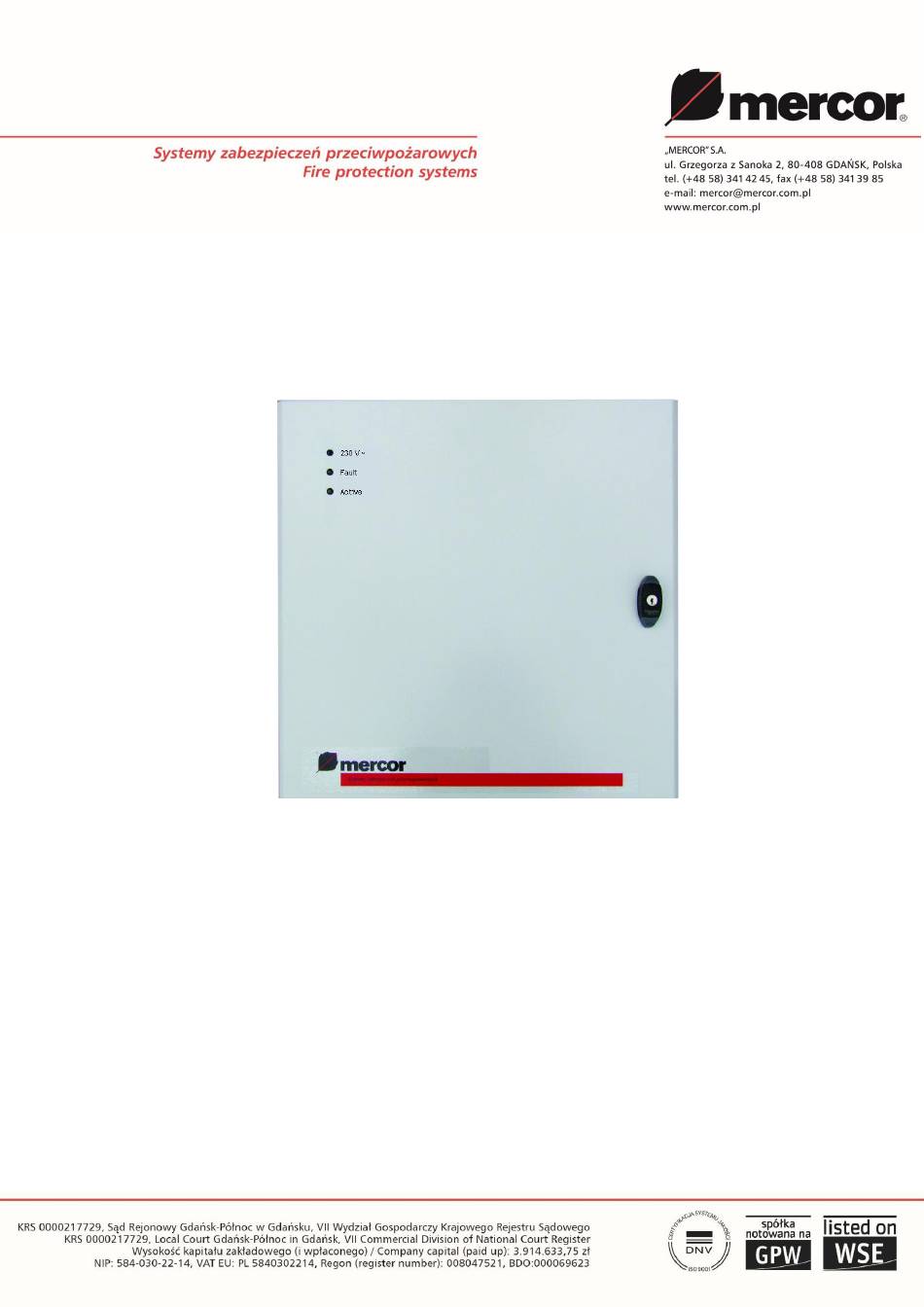

- Page 1 OPERATION AND MAINTENANCE MANUAL Operating instructions Power supply equipment Output Module – Extension Module type: mcr R0424-1 mcr R0424-2 mcr R0448-1 mcr R0448-2 mcr R0448-4 mcr R0424-K mcr R0448-K Nr dok: HO.21.01252 rew.: C Status: Wydany...
-
Page 2: Table Of Contents
This will ensure correct and trouble-free operation. “MERCOR" S.A. is not liable for damages resulting from improper use of the device. “MERCOR" S.A. reserves the right to make changes to this manual without prior notice. -
Page 3: Introduction
Observance of the recommendations included in technical and user documentation will ensure proper functioning of the smoke ventilation systems and safety of the system users. “MERCOR" S.A. reserves the right to make changes in the product or in this document without notice. - Page 4 Output Module - Extension Module Type mcr R04xx. Operation and Maintenance Manual. Fig. 1. Extension module (on the left - view of the door, on the right - inside the enclosure - mcr R0448-4 version). The unit's steel enclosure, painted light gray (~RAL7035), is designed for surface mounting, with the option of leading the wires out from the top or back.
-
Page 5: Transport, Delivery, Storage
(or is suspected to have lasted) for more than 72 hours, an authorised "MERCOR" S.A. service centre should be called to check the batteries' condition. In case of using the module to power mcr PROSMOKE FS CE curtains, this time is up to 6.5 h (see operation and maintenance manual for mcr... -
Page 6: Service And Maintenance
“MERCOR” S.A. shall remove them within 21 days of the written notification, subject to paragraph 6. 3. “MERCOR” S.A. reserves the right to lengthen the repair time in the event of complicated repairs or those that require non-standard sub-assemblies [elements] or spare parts to be purchased. - Page 7 Any interference of unauthorized persons – except activities connected with normal operation of the equipment. 11. Moreover, in the cases specified in par. 10, “MERCOR” S.A. has no warranty obligations. As regards matters not regulated by these "Warranty terms and conditions", relevant regulations in the Civil Code, and in particular Art.
-
Page 8: Technical Specification
Number of control groups Load capacity and number of output lines mcr R0424-2 2x output lines of max 12 A mcr R0424-1 1x output line of max 24 A mcr R0448-4 4x output lines of max 12 A mcr R0448-2... -
Page 9: Wiring Diagrams
Output Module - Extension Module Type mcr R04xx. Operation and Maintenance Manual. 10. Wiring diagrams Fig. 2. Wiring diagram for mcr R0424-1 module for use with smoke vent actuators. Strona 9 z 19... - Page 10 Output Module - Extension Module Type mcr R04xx. Operation and Maintenance Manual. Fig. 3. Wiring diagram for mcr R0424-1 module for use with mcr PROSMOKE FS CE curtain unit PM - installation box (in close proximity to mcr PROSMOKE FS CE curtains).
- Page 11 Output Module - Extension Module Type mcr R04xx. Operation and Maintenance Manual. Fig. 4. Wiring diagram for mcr R0424-2 module Strona 11 z 19...
- Page 12 Output Module - Extension Module Type mcr R04xx. Operation and Maintenance Manual. Fig. 5. Wiring diagram for mcr R0448-1 module Strona 12 z 19...
- Page 13 Output Module - Extension Module Type mcr R04xx. Operation and Maintenance Manual. Fig. 6. Wiring diagram for mcr R0448-2 module Strona 13 z 19...
- Page 14 Output Module - Extension Module Type mcr R04xx. Operation and Maintenance Manual. Fig. 7. Wiring diagram for mcr R0448-4 module Strona 14 z 19...
- Page 15 Output Module - Extension Module Type mcr R04xx. Operation and Maintenance Manual. No. on actuator lines Fig. 8. Wiring diagram for mcr R0424-K module No. on actuator lines Fig. 9. Wiring diagram for mcr R0448-K module Strona 15 z 19...
-
Page 16: Certificate Of Approval
Output Module - Extension Module Type mcr R04xx. Operation and Maintenance Manual. Certificate of approval Strona 16 z 19... - Page 17 Output Module - Extension Module Type mcr R04xx. Operation and Maintenance Manual. Strona 17 z 19...
- Page 18 Output Module - Extension Module Type mcr R04xx. Operation and Maintenance Manual. Strona 18 z 19...
- Page 19 Output Module - Extension Module Type mcr R04xx. Operation and Maintenance Manual. Strona 19 z 19...
