AVG-UDA2 DA

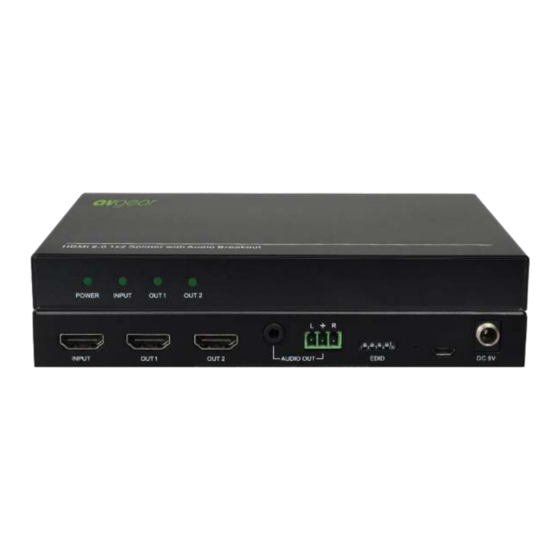

The AVG-UDA2 DA is a 4K HDMI splitter with the
ability to transmit an HDMI or DVI source to two
displays simultaneously. Compliant with HDMI2.0 &
HDCP2.2, the AVG-UDA2 DA provides
comprehensive resolution capability up to 4K, 1080p
& 3D. It will also de-embed digital stereo audio from
the HDMI and output the audio to two analogue
audio outputs.
Features
▪ Two simultaneous HDMI outputs
▪ Supports resolutions up to
4Kx2K@60Hz 4:4:4
▪ Fully compliant with HDMI2.0 &
HDCP2.2.
▪ Transmits 4Kx2K HDMI up to
10m
▪ High bandwidth: 18Gbps
▪ 3.5mm mini jack and a 3-pin
Phoenix plug for audio de-
embedding.
▪ Features smart EDID
management. Multiple presets
and customised settings allowed.
▪ Supports two-way CEC control.
▪ Supports Hot plugging.
▪ Easy firmware update
Advertisement
Table of Contents
Related Manuals for AVGear AVG-UDA2 DA
Summary of Contents for AVGear AVG-UDA2 DA
- Page 1 ▪ 3.5mm mini jack and a 3-pin Phoenix plug for audio de- embedding. ▪ Features smart EDID The AVG-UDA2 DA is a 4K HDMI splitter with the management. Multiple presets ability to transmit an HDMI or DVI source to two and customised settings allowed.
- Page 2 AVG-UDA2 DA PLEASE READ THIS PRODUCT MANUAL CAREFULLY BEFORE USING THIS PRODUCT. This manual is only for operation instruction only, and not to be used in a maintenance capacity. The functions described in this version are current till April 2018. Any changes of functions and operational parameters will be updated in future manual versions.
- Page 3 AVG-UDA2 DA SAFETY OPERATION GUIDE In order to guarantee the reliable operation of the equipment and safety of the user, please abide by the following procedures in installation, use and maintenance: 1. The system must be earthed properly. Please do not use two blade plugs and ensure the AC power supply ranges from 100v to 240v and from 50Hz to 60Hz.
-
Page 4: Table Of Contents
Introduction ......................1 Introduction to the AVG-UDA2 DA ..............1.1 Features ....................... 1.2 Whats in the Box ..……………………………………………………………………2 Product Appearance of the AVG-UDA2 DA ............3 System Connection ....................4 Usage Precautions ..................4.1 Connection Diagram ..................4.2 Connection Procedure .................. 4.3 EDID Management .................. -
Page 5: Introduction
1. Introduction 1.1. Introduction to the AVG-UDA2 DA The AVG-UDA2 DA is a 4K HDMI splitter with the ability to transmit an HDMI or DVI source to two displays simultaneously. Compliant with HDMI2.0 & HDCP2.2. The AVG-UDA2 DA provides comprehensive resolution capabilities up to 4K, 1080p &... - Page 6 The AVG-UDA2 DA can switch input signal formats per the displays. For example, when the input signal is HDMI and the display can only support a DVI signal, the AVG-UDA2 DA will change the signal to the DVI format. e) EDID Management: automatically manages the output signal (e.g. output...
-
Page 7: System Connection
▪ All of the power switches, plugs, sockets and power cords should be insulated and safe. ▪ All devices should be connected before powering on. 4.2 Connection Diagram The following diagram illustrates typical input and output connections that can be utilised with the AVG-UDA2 DA. HDMI: AUDIO: Speaker 4K Blu-ray... -
Page 8: Connection Procedure
DA with HDMI cables. Step3. Plug a DC 5V power adapter to the power port of AVG-UDA2 DA. Note: All the ports support hot-plugging. It’s important to know that hot plugging a display may result in a splash screen at the output ends. -
Page 9: Application
5 times. If it still fails, the input LED will go out and the source device will still save the previous EDID data. 4.5 Applications Robust performance for signal transmission makes the AVG-UDA2 DA ideal in the custom installation industry, IT computer space, signal monitoring, big screen displays, conference systems, television broadcast, education, banking and security institutions etc. -
Page 10: Specifications
AVG-UDA2 DA 5. Specification Video Input Input (1) HDMI Input Connector (1) Female type A HDMI HDMI Input Up to 4Kx2K@60Hz 4:4:4 Resolution HDMI Standard HDCP Version Video Output Output (2) HDMI Output Connector (2) Female type A HDMI HDMI Output... -
Page 11: Panel Drawing
AVG-UDA2 DA 6. Panel Drawing... -
Page 12: Troubleshooting & Maintenance
Check whether the cables may not be connected are connected correctly No HDMI signal output correctly or it may be and in working condition. from the AVG-UDA2 DA broken. while the local HDMI input is in a normal working state Poor quality connecting...
