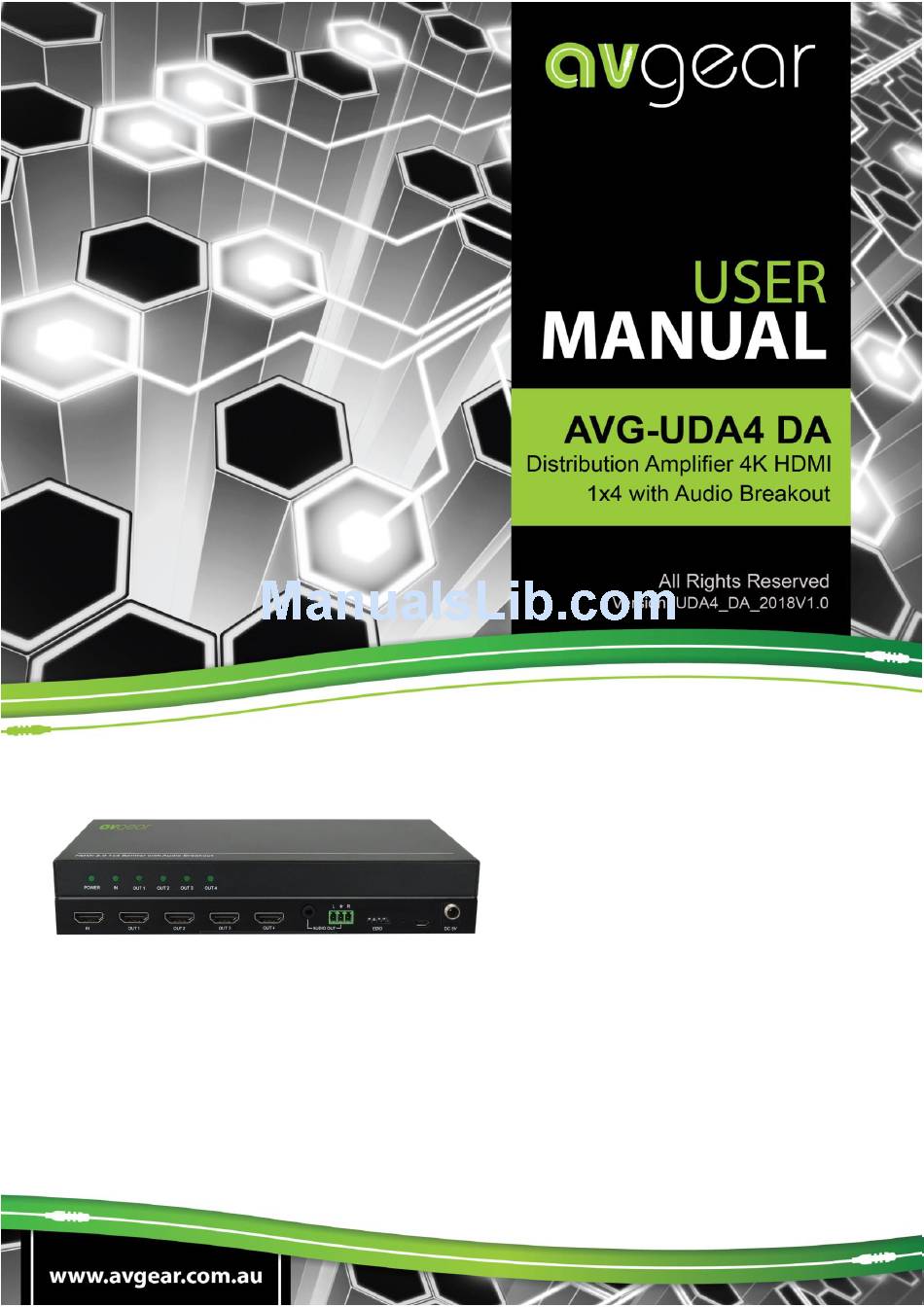

AVGear AVG-UDA4 DA User Manual

Distribution amplifier 4k hdmi 1x4 with audio breakout
Hide thumbs Also See for AVG-UDA4 DA:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
AVG-UDA4 DA
f
The AVG-UDA4 DA is a 4K HDMI splitter with
the ability to transmit an HDMI or DVI source to
four displays simultaneously. Compliant with
HDMI2.0 & HDCP2.2, the AVG-UDA4 DA
provides comprehensive resolution capabilities
up to 4K, 1080p & 3D. It will also de-embed
digital stereo audio to two analogue audio
outputs.
Features
▪ Four simultaneous HDMI outputs
▪ Supports resolution up to
4Kx2K@60Hz 4:4:4
▪ Fully compliant with HDMI2.0 &
HDCP2.2.
▪ Transmits 4Kx2K HDMI up to
10m
▪ High bandwidth: 18Gbps
▪ 3.5mm mini jack and a 3-pin
Phoenix plug for audio de-
embedding.
▪ Features smart EDID
management. Multiple presets
and customised settings allowed.
▪ Supports two-way CEC control.
▪ Supports Hot plugging.
▪ Easy firmware update

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVG-UDA4 DA and is the answer not in the manual?

Questions and answers

Related Manuals for AVGear AVG-UDA4 DA

Summary of Contents for AVGear AVG-UDA4 DA

  • Page 1 ▪ Transmits 4Kx2K HDMI up to ▪ High bandwidth: 18Gbps ▪ 3.5mm mini jack and a 3-pin The AVG-UDA4 DA is a 4K HDMI splitter with Phoenix plug for audio de- the ability to transmit an HDMI or DVI source to embedding.
  • Page 2 AVG-UDA4 DA PLEASE READ THIS PRODUCT MANUAL CAREFULLY BEFORE USING THIS PRODUCT. This manual is only for operation instruction only, and not to be used in a maintenance capacity. The functions described in this version are current as at April 2018. Any changes of functions and operational parameters will be updated in future manual versions.
  • Page 3 AVG-UDA4 DA SAFETY OPERATION GUIDE In order to guarantee the reliable operation of the equipment and safety of the user, please abide by the following procedures in installation, use and maintenance: 1. The system must be earthed properly. Please do not use two blade plugs and ensure the AC power supply ranges from 100v to 240v and from 50Hz to 60Hz.

  • Page 4: Table Of Contents

    Introduction ......................1 Introduction to the AVG-UDA4 DA ..............1.1 Features ....................... 1.2 What’s in the Box ..……………………………………………………………………2 Product Appearance of the AVG-UDA4 DA ............3 System Connection ....................4 Usage Precautions ..................4.1 Connection Diagram ..................4.2 Connection Procedure ................. 4.3 EDID Management ..................

  • Page 5: Introduction

    1. Introduction 1.1. Introduction to the AVG-UDA4 DA The AVG-UDA4 DA is a 4K HDMI splitter with the ability to transmit an HDMI or DVI source to four displays simultaneously. Compliant with HDMI2.0 & HDCP2.2, the AVG-UDA4 DA provides comprehensive resolution capacities up to 4K, 1080p & 3D.
  • Page 6 AVG-UDA4 DA 3. Product Appearance Front Panel OUT 1 OUT 2 OUT 3 OUTT 4 ① Power LED: The LED illuminates green when power is applied. ② INPUT LED: The LED illuminates green when there is an input signal present.

  • Page 7: System Connection

    DA with HDMI cables. Step3. Plug a DC 5V power adapter to the power port of AVG-UDA4 DA. Note: All the ports support hot-plugging. It’s important to know that hot plugging a display may result in a splash screen at the output end.

  • Page 8: Edid Management

    AVG-UDA4 DA 4.4 EDID Management The Extended Display Identification Data (EDID) is used by the source device to match its video resolution with the connected display. Predefined EDID settings ⚫ The 4-pin DIP switch on the rear panel can be used to set the EDID to a fixed value.

  • Page 9: Applications

    AVG-UDA4 DA 4.5 Application Robust performance for signal transmission makes the AVG-UDA4 DA ideal in the custom installation industry, IT computer space, signal monitoring, big screen displays, conference systems, television broadcast, education, banking and security institutions etc. 4.6 Firmware Upgrade...

  • Page 10: Specifications

    AVG-UDA4 DA 5. Specifications Video Input Input (1) HDMI Input Connector (1) Female type A HDMI HDMI Input Up to 4Kx2K@60Hz 4:4:4 Resolution HDMI Standard HDCP Version Video Output Output (4) HDMI Output Connector (4) Female type A HDMI HDMI Output...

  • Page 11: Panel Drawing

    AVG-UDA4 DA 6. Panel Drawing...

  • Page 12: Troubleshooting & Maintenance

    AVG-UDA4 DA 7. Troubleshooting & Maintenance Problems Causes Solutions The Connection of the Check whether the cables cabling may be incorrect are connected correctly Color loss or no video or faulty and in working condition. signal output Make sure the connection...
