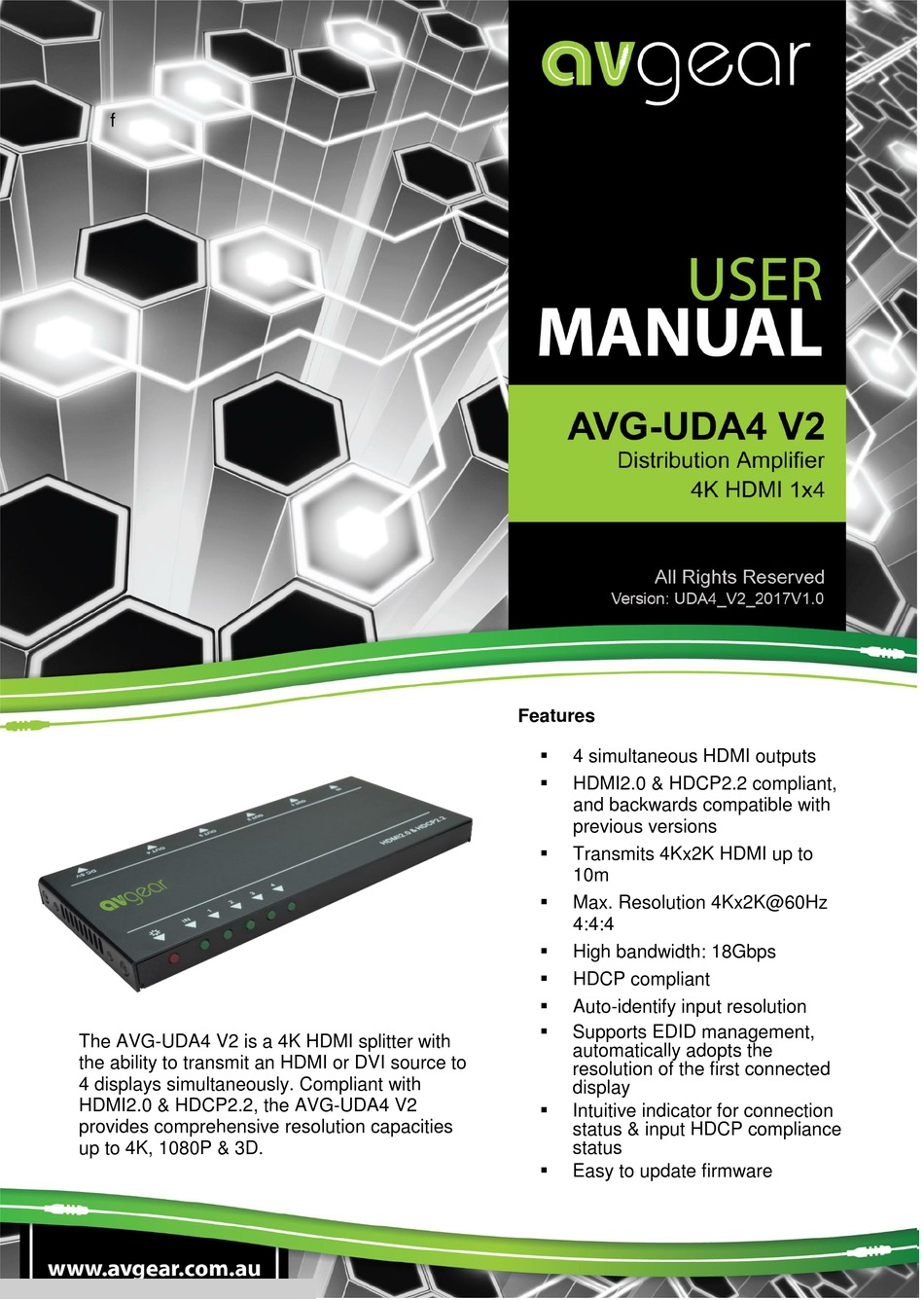

AVG-UDA4 V2
f
The AVG-UDA4 V2 is a 4K HDMI splitter with
the ability to transmit an HDMI or DVI source to
4 displays simultaneously. Compliant with
HDMI2.0 & HDCP2.2, the AVG-UDA4 V2
provides comprehensive resolution capacities
up to 4K, 1080P & 3D.
Features
4 simultaneous HDMI outputs
HDMI2.0 & HDCP2.2 compliant,
and backwards compatible with
previous versions
Transmits 4Kx2K HDMI up to
10m
Max. Resolution 4Kx2K@60Hz
4:4:4
High bandwidth: 18Gbps
HDCP compliant
Auto-identify input resolution
Supports EDID management,
automatically adopts the
resolution of the first connected
display
Intuitive indicator for connection
status & input HDCP compliance
status
Easy to update firmware
Advertisement
Table of Contents
Related Manuals for AVGear AVG-UDA4 V2
Summary of Contents for AVGear AVG-UDA4 V2
- Page 1 Auto-identify input resolution Supports EDID management, The AVG-UDA4 V2 is a 4K HDMI splitter with automatically adopts the the ability to transmit an HDMI or DVI source to resolution of the first connected 4 displays simultaneously. Compliant with display HDMI2.0 &...
- Page 2 AVG-UDA4 V2 PLEASE READ THIS PRODUCT MANUAL CAREFULLY BEFORE USING THIS PRODUCT. This manual is only for operation instruction only, and not to be used in a maintenance capacity. The functions described in this version are current as at May 2017. Any changes of functions and operational parameters will be updated in future manual versions.
- Page 3 AVG-UDA4 V2 SAFETY OPERATION GUIDE In order to guarantee the reliable operation of the equipment and safety of the user, please abide by the following procedures in installation, use and maintenance: 1. The system must be earthed properly. Please do not use two blade plugs and ensure the AC power supply ranges from 100v to 240v and from 50Hz to 60Hz.
-
Page 4: Table Of Contents
Introduction ......................1 Introduction to the AVG-UDA4 V2 ..............1.1 Features ....................... 1.2 What’s in the Box ..……………………………………………………………………2 Product Appearance of the AVG-UDA4 V2 ............3 System Connection ....................4 Usage Precautions ..................4.1 Connection Diagram ..................4.2 Connection Procedure ................. 4.3 EDID Management .................. -
Page 5: Introduction
1. Introduction 1.1. Introduction to the AVG-UDA4 V2 The AVG-UDA4 V2 is a 4K HDMI splitter with the ability to transmit an HDMI or DVI source to 4 displays simultaneously. Compliant with HDMI2.0 & HDCP2.2, the AVG- UDA4 V2 provides comprehensive resolution capacities up to 4K and 1080p 3D. It’s capable of automatically recognising the resolution and the HDCP compliant status of the input signal. - Page 6 AVG-UDA4 V2 3. Product Appearance DC 5V OUT 4 OUT 3 OUT 2 OUT 1 Name Description Power ① Illuminates red once powered on indicator Indicates the HDCP compliant status of the input signal Input HDCP Iluminates green when the input signal has HDCP ...
- Page 7 Dolby Digital, DTS, DTS-HD), while the DVI signal contains only a video signal. d) The AVG-UDA4 V2 can switch input signal formats according to the displays. For example, when the input signal is HDMI and the display can only support a DVI signal, the AVG-UDA4 V2 will change the signal to the DVI format.
-
Page 8: System Connection
HDMI cables. Step3. Plug a DC 5V power adapter to the power port of AVG-UDA4 V2. Note: All the ports support hot-plug. It’s important to know that hot plugging a display may result in splash screen at the output ends. -
Page 9: Edid Management
AVG-UDA4 V2 4.4 EDID Management The AVG-UDA4 V2 features 1 HDMI input port and 2 HDMI output ports. It also features built-in EDID management. 1. When all output ports are connected to the displays, the source device will acquire the EDID data from the display connected to the output 1 port. At this point, if you disconnect the output 1 display and want the source device to gain the EDID from output 2, the AVG-UDA4 V2 will need to be restarted. -
Page 10: Specifications
AVG-UDA4 V2 5. Specification Video Input Input 1 HDMI Input Connector 1 female type A HDMI 2.0 Video Output Output 4 HDMI Output Connector 4 female type A HDMI 2.0 Video General 18 Gbit/s Max data rate 4Kx2K@60Hz 4:4:4 Max Resolution Compliant with HDCP2.2 and is backwards compatible with... -
Page 11: Supported Input Video Formats
3840 x 2160@30Hz 3840 x 2160@60Hz 1080P 3D@60Hz Note: The AVG-UDA4 V2 supports 4K and 3D HDMI signals, please use good quality HDMI cables compliant with HDMI2.0 for reliable operation when connecting 4K or 3D sources. -
Page 12: Panel Drawing
AVG-UDA4 V2 6. Panel Drawing... -
Page 13: Troubleshooting & Maintenance
AVG-UDA4 V2 7. Troubleshooting & Maintenance Problems Causes Solutions The Connection of the Check whether the cables cabling may be incorrect are connected correctly Color loss or no video or faulty and in working condition. signal output Make sure the connection...
