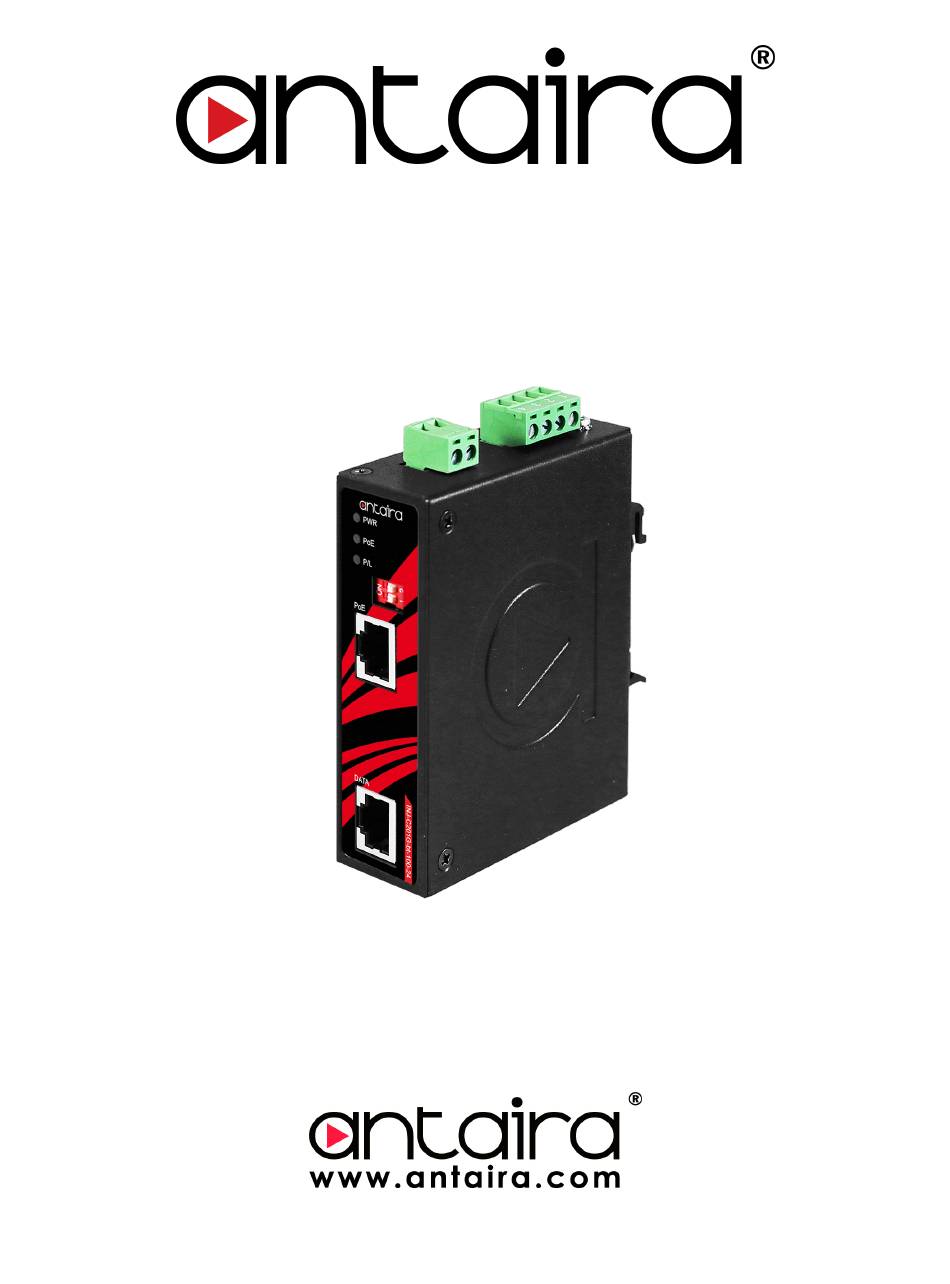

- Page 1 INJ-C201G-bt-100-24-T Industrial Gigabit Enhanced PoE++ Injector, with 1*10/100/1000Base-T(X) with Enhanced PoE-PSE (100W/Port) and 1*10/100/1000Base-T(X), Booster Version, 9~55VDC; EOT: -40°C ~ 75°C Hardware Manual Version 1.0 (November 2021)
- Page 2 Antaira Technologies, LLC may make improvements and/or changes to the product and/or specifications of the product described in this manual, without prior notice. Antaira Technologies, LLC will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
- Page 3 Antaira Technologies - Industrial Gigabit PoE++ Injector INJ-C201G-bt-100-24-T - Hardware Manual - v1.0 ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is ●...
- Page 4 Industrial Grade PoE++ Injector Hardware Manual Version 1.0 (November 2021) The manual supports the following models: INJ-C201G-bt-100-24-T ● This document is the current official release hardware manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 5: Table Of Contents
Antaira Technologies - Industrial Gigabit PoE++ Injector INJ-C201G-bt-100-24-T - Hardware Manual - v1.0 Table of Contents 1 Overview 1.1 Product Hardware Features 1.2 Package Contents 1.3 Safety Precaution 2 Hardware Description 2.1 Physical Dimensions 2.2 Front View Panel 2.3 Top View Panel 2.4 LED Indicators... -
Page 6: Overview
PD device. PoE injector is a brilliant low-cost solution for the case that only one side of devices is supporting PoE function. Therefore, INJ-C201G-bt-100-24-T will be your best choice to deal with the lack of PoE function cases. -
Page 7: Package Contents
Antaira Technologies - Industrial Gigabit PoE++ Injector INJ-C201G-bt-100-24-T - Hardware Manual - v1.0 1.2 Package Contents INJ-C201G-bt-100-24-T Quick Installation Guide Wall mounting bracket set with screws DC cable - 18AWG & DC jack 5.5 x 2.1mm **Wire: White (+) / Black (-) Dust cover set 1.3 Safety Precaution... - Page 8 Antaira Technologies - Industrial Gigabit PoE++ Injector INJ-C201G-bt-100-24-T - Hardware Manual - v1.0 Warning Labels The caution label means that you should check certain information on the user manual when working with the device. (Shown in Figure 1.1) Étiquettes d'avertissement L'étiquette d'avertissement signifie que vous devez vérifier certaines informations du manuel d'utilisation...
-
Page 9: Hardware Description
Antaira Technologies - Industrial Gigabit PoE++ Injector INJ-C201G-bt-100-24-T - Hardware Manual - v1.0 2 Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of this product series: (W x D x H) is 30mm x 75mm x 95mm... -
Page 10: Front View Panel
Antaira Technologies - Industrial Gigabit PoE++ Injector INJ-C201G-bt-100-24-T - Hardware Manual - v1.0 2.2 Front View Panel Figure 2.2, below, shows the front panel of the product series: Figure 2.2 - Front View Panel 2.3 Top View Panel Figure 2.3, below, shows the top panel of the product series:... -
Page 11: Led Indicators
Antaira Technologies - Industrial Gigabit PoE++ Injector INJ-C201G-bt-100-24-T - Hardware Manual - v1.0 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial PoE injector that display the power status and network status. Each LED indicator has a different color and has its specific meaning, see below in Table 2.1. -
Page 12: Dip Switch
Antaira Technologies - Industrial Gigabit PoE++ Injector INJ-C201G-bt-100-24-T - Hardware Manual - v1.0 2.5 DIP Switch There is a 2-set DIP switch in the front panel that can be used for setting the PoE Mode and Dual PD Check functions. The default setting for all DIP switches is “OFF”. See Table 2.2 and description below for more details. -
Page 13: Relay Contact Alarm Warning
Antaira Technologies - Industrial Gigabit PoE++ Injector INJ-C201G-bt-100-24-T - Hardware Manual - v1.0 2.6 Relay Contact Alarm Warning The relay contact alarm supports power redundancy failed, PoE total output watts >100% warning and PoE over current or cable short warning. There are 5 key trigger events, please follow the below rules: The relay contact alarm will be triggered when any of the listed events occurs. -
Page 14: Cabling
Antaira Technologies - Industrial Gigabit PoE++ Injector INJ-C201G-bt-100-24-T - Hardware Manual - v1.0 Crossover Cable Straight Through Cable Pin Number / Signal Pin Number / Signal Pin Number / Signal Pin Number / Signal 1 / TP0+ 3 / TP1+... -
Page 15: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Gigabit PoE++ Injector INJ-C201G-bt-100-24-T - Hardware Manual - v1.0 Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure 2.5. Figure 2.5 - Power Terminal Block Caution: Only use copper conductors, 125°C, tighten to 5 lbs. -
Page 16: Grounding Note
Antaira Technologies - Industrial Gigabit PoE++ Injector INJ-C201G-bt-100-24-T - Hardware Manual - v1.0 2.11 Grounding Note Grounding and wire routing help limit the effects of noise due to Electromagnetic Interference (EMI). Run the ground connection from the ground screw to the grounding surface before connecting devices. The grounding screw symbol is shown below in Figure 2.7. -
Page 17: Mounting Installation
Antaira Technologies - Industrial Gigabit PoE++ Injector INJ-C201G-bt-100-24-T - Hardware Manual - v1.0 3 Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial PoE injector from the factory. If the DIN-Rail is not on the industrial PoE injector, please see Figure 3.1 to learn how to install the DIN-Rail on the injector. -
Page 18: Wall Mounting
Antaira Technologies - Industrial Gigabit PoE++ Injector INJ-C201G-bt-100-24-T - Hardware Manual - v1.0 Figure 3.2 - Insert the Injector on the DIN-Rail Figure 3.3 - Stable the Injector on the DIN-Rail 3.2 Wall Mounting Follow the steps below to mount the industrial PoE injector using the wall mounting bracket as shown below in Figure 3.4. - Page 19 Antaira Technologies - Industrial Gigabit PoE++ Injector INJ-C201G-bt-100-24-T - Hardware Manual - v1.0 Figure 3.4 - Remove DIN-Rail bracket from the Injector Below, in Figure 3.5 are the dimensions of the wall mounting bracket. Figure 3.5 - Wall Mounting Bracket Dimensions...
-
Page 20: Hardware Installation
Antaira Technologies - Industrial Gigabit PoE++ Injector INJ-C201G-bt-100-24-T - Hardware Manual - v1.0 4 Hardware Installation 4.1 Installation Steps This section will explain how to install the industrial PoE injector: Caution: This device is intended for indoor use. Attention: Cet appareil est destiné à une utilisation en intérieur. -
Page 21: Maintenance And Service
Check for loose power connections, power losses, or surges at the power outlet. ○ Please contact Antaira for technical support service if the problem still cannot be resolved. ● If the industrial injector LED indicators are normal and the connected cables are correct but the... -
Page 22: Technical Specifications
Antaira Technologies - Industrial Gigabit PoE++ Injector INJ-C201G-bt-100-24-T - Hardware Manual - v1.0 5 Technical Specifications Table 5.1 has the technical specifications for this product series. Technology IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet Standards IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3af/at/bt Power over Ethernet... - Page 23 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) +48-22-862-88-81 (Antaira Asia Office) +886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
