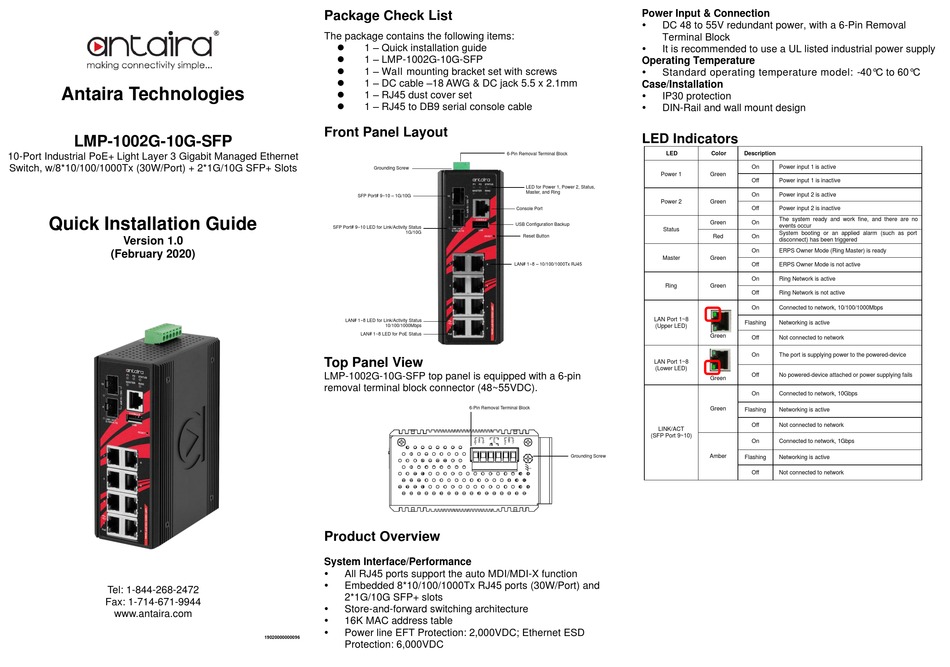

ANTAIRA LMP-1002G-10G-SFP Quick Installation Manual

Antaira Technologies
LMP-1002G-10G-SFP
10-Port Industrial PoE+ Light Layer 3 Gigabit Managed Ethernet
Switch, w/8*10/100/1000Tx (30W/Port) + 2*1G/10G SFP+ Slots
Quick Installation Guide
Version 1.0
(February 2020)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
⚫ 1 – Quick installation guide
⚫ 1 – LMP-1002G-10G-SFP
⚫ 1 – Wall mounting bracket set with screws
⚫ 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
⚫ 1 – RJ45 dust cover set
⚫ 1 – RJ45 to DB9 serial console cable
Front Panel Layout
Grounding Screw
SFP Port# 9~10 – 1G/10G
SFP Port# 9~10 LED for Link/Activity Status
1G/10G
LAN# 1~8 LED for Link/Activity Status
10/100/1000Mbps
LAN# 1~8 LED for PoE Status
Top Panel View
LMP-1002G-10G-SFP top panel is equipped with a 6-pin
removal terminal block connector (48~55VDC).
Product Overview
System Interface/Performance

All RJ45 ports support the auto MDI/MDI-X function

Embedded 8*10/100/1000Tx RJ45 ports (30W/Port) and
2*1G/10G SFP+ slots

Store-and-forward switching architecture

16K MAC address table

Power line EFT Protection: 2,000VDC; Ethernet ESD
19020000000096
Protection: 6,000VDC
Power Input & Connection


Operating Temperature

Case/Installation


LED Indicators
6-Pin Removal Terminal Block
LED for Power 1, Power 2, Status,
Master, and Ring
Console Port
USB Configuration Backup
Reset Button
LAN# 1~8 – 10/100/1000Tx RJ45
6-Pin Removal Terminal Block
Grounding Screw
DC 48 to 55V redundant power, with a 6-Pin Removal
Terminal Block
It is recommended to use a UL listed industrial power supply
Standard operating temperature model: -40°C to 60°C
IP30 protection
DIN-Rail and wall mount design
LED Color Description
On Power input 1 is active
Power 1 Green
Off Power input 1 is inactive
On Power input 2 is active
Power 2 Green
Off Power input 2 is inactive
The system ready and work fine, and there are no
Green On
events occur
Status
System booting or an applied alarm (such as port
Red On
disconnect) has been triggered
On ERPS Owner Mode (Ring Master) is ready
Master Green
Off ERPS Owner Mode is not active
On Ring Network is active
Ring Green
Off Ring Network is not active
On Connected to network, 10/100/1000Mbps
LAN Port 1~8
Flashing Networking is active
(Upper LED)
Green
Off Not connected to network
On The port is supplying power to the powered-device
LAN Port 1~8
(Lower LED)
Off No powered-device attached or power supplying fails
Green
On Connected to network, 10Gbps
Green
Flashing Networking is active
Off Not connected to network
LINK/ACT
(SFP Port 9~10)
On Connected to network, 1Gbps
Amber
Flashing Networking is active
Off Not connected to network
