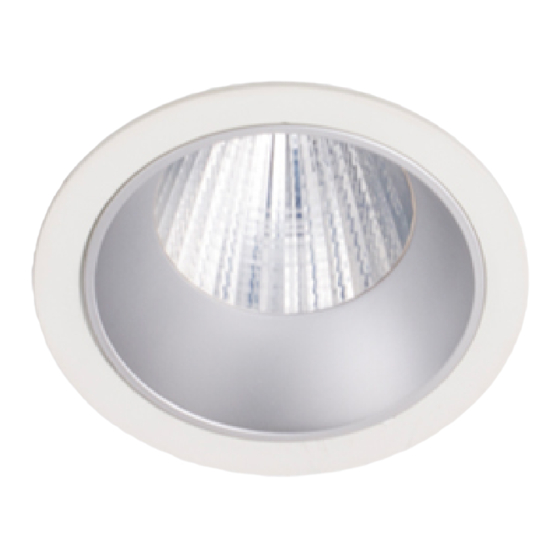

Sistemalux V68 Installation Sheet

V68
MODEL : V68 - NC/RF
NEW CONSTRUCTION WITH PLASTER FRAME (NC) / REMODEL (RF) , NON-IC RATED
INTEGRAL DRIVER (120 / 277V)
DIMMING TRIAC/ELV - 0-10V
A- REMOVE THE PHILLIPS HEAD SCREW (INCLUDED) OF THE CONNECTION HOUSING AND REMOVE COVER.
B- INSTALL BX CABLES (BY OTHERS) WITH 6" OF WIRE IN THE CONNECTION BOX.
C- MAKE ALL NECESSARY CONNECTIONS (SEE WIRING DIAGRAM). * DAISY CHAIN CONNECTIONS NOT POSSIBLE FOR 0-10V DIMMING.
D- CLOSE CONNECTION BOX COVER AND SECURE WITH THE PHILLIPS HEAD SCREW.
A + B
RETAINING
CABLE
POWER
CABLE
QUICK
CONNECTOR
FLEXIBLE CONDUIT
CONNECTION BOX
E- CONNECT THE FIXTURE TO THE LED DRIVER HOUSING USING THE QUICK CONNECTOR.
F- STARTING WITH THE CONNECTION BOX, CAREFULLY INSERT THE ASSEMBLY THROUGH THE CUT-OUT.
CLOSE FIXATION BRACKETS TO FIT INSIDE CUT-OUT.
G- INSERT FIXTURE INTO THE CEILING. TO SECURE THE FIXTURE INSIDE THE HOUSING SCREW THE FIXATION BRACKET ADJUSTMENT
SCREW (2) WITH A DRILL (RECOMMENDED). FIXATION BRACKETS WILL OPEN AUTOMATICALLY WHILE SCREWING.
*FOR WALL WASHER OPTIC, ORIENT THE TRIM ARROW MARK TOWARDS THE WALL.
E + F
CONNECTION
BOX
F
E
INS-615
PHILLIPS HEAD
SCREW
COVER
BX CONNECTOR
BX CABLE
CEILING
PLASTER FRAME (NC)
CUT-OUT
LED DRIVER
HOUSING
QUICK
CONNECTOR
INSTALLATION SHEET
C
WIRING DIAGRAM
DIMMING (LTE)
TRIAC/ELV (120V ONLY)
LIVE
(black)
GROUND
NEUTRAL
(green)
(white)
FIXTURE CABLES
QUICK
CONNECTOR
(INCLUDED)
G
FIXATION
BRACKETS
FIXATION BRACKET
ADJUSTMENT SCREW
DIMMING 0-10V
120-277V
LIVE
(black)
GROUND
NEUTRAL
(green)
(white)
FIXTURE CABLES
CONNECTION
BOX
WALL WASHER
BEAM ORIENTATION
LAST UPDATE: February 28, 2020 LAST UPDATE: February 28, 2020
9320 Boul. St-Laurent, suite 100, Montréal (Québec) Canada H2N 1N7 9320 Boul. St-Laurent, suite 100, Montréal (Québec) Canada H2N 1N7
P.: 514.523.1339 F.: 514.525.6107 www.sistemalux.com P.: 514.523.1339 F.: 514.525.6107 www.sistemalux.com
PAGE: 1 OF 2
DIM +
(purple)
DIM -
(gray)
CONNECTION
BLOCK
WALL
BEAM
TRIM
ARROW MARK
JP - R2 JP - R2
