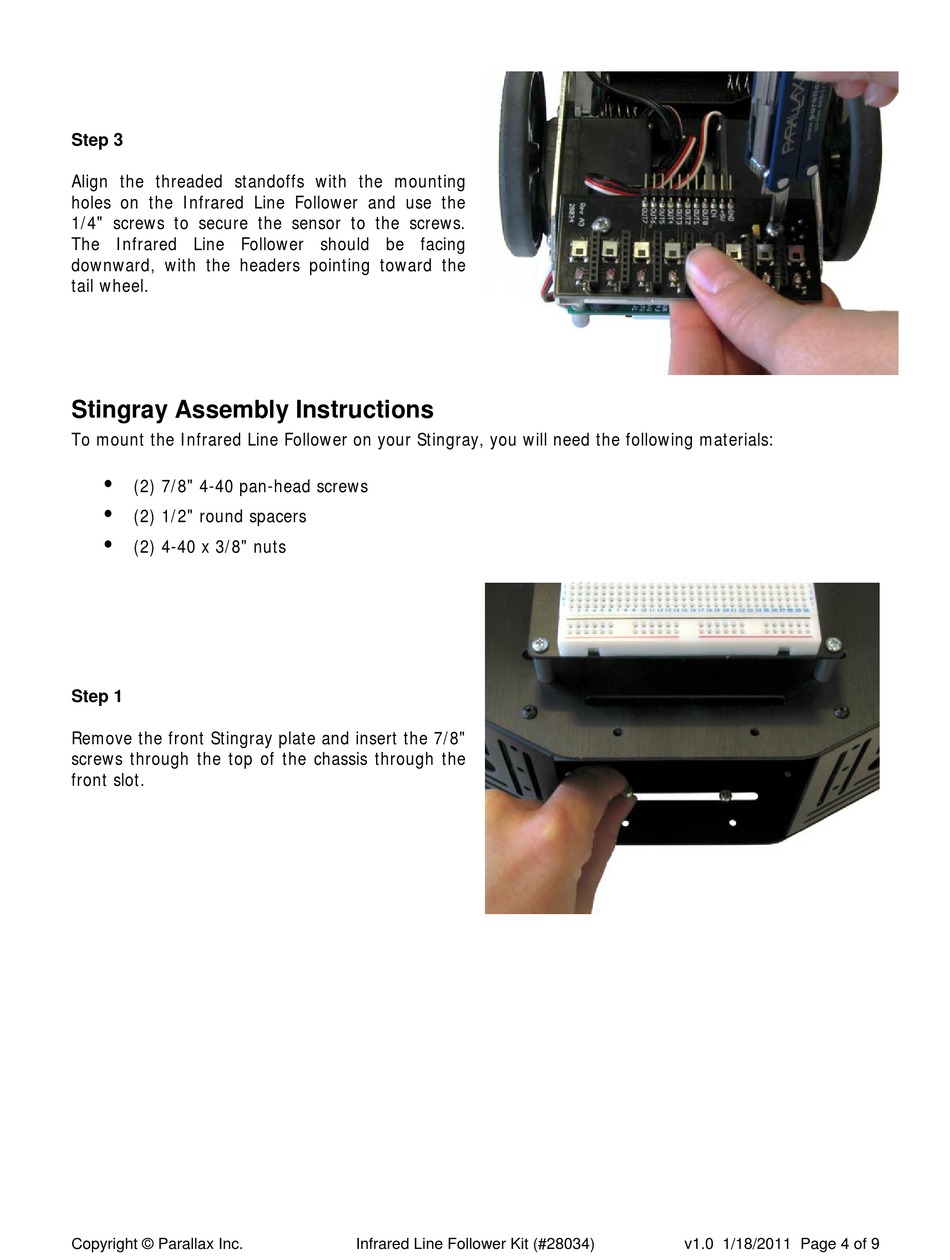

Step 3
Align the threaded standoffs with the mounting
holes on the Infrared Line Follower and use the
1/4" screws to secure the sensor to the screws.
The Infrared Line Follower should be facing
downward, with the headers pointing toward the
tail wheel.
Stingray Assembly Instructions
To mount the Infrared Line Follower on your Stingray, you will need the following materials:

(2) 7/8" 4-40 pan-head screws

(2) 1/2" round spacers

(2) 4-40 x 3/8" nuts
Step 1
Remove the front Stingray plate and insert the 7/8"
screws through the top of the chassis through the
front slot.
