Urban Coop Company Round-TopWalk-InCoop Harvey's Hen House Assembly Instructions Manual

Advertisement

Quick Links

Assembly Instructions
Round-Top Walk-In
These written instructions, as
provided with your purchase, will
always be the latest iteration of the
instructions and match the coop
shipped and provide the most
complete up-to-date information.
We depend on feedback about our
instructions to implement changes
to future versions. Please know
that we value your input to that
ongoing process and endeavor to
produce instructions that are as
effective as possible for a wide
variety of customers.
Assembly
Overview...
Use your phones camera to read QR Code.
Representation of procedure... not instructions.
Copyright ® Urban Coop Company all rights reserved. This document is provided to you for your own personal limited use as a paying customer to assemble your coop. We
Summer
consider these instructions company intellectual property and are granting you limited personal use only. Do not copy or distribute without written permission of Urban Coop
V-M
2019
Company. We claim all available Federal protection for the name Round-Top Coop™, our protected designs and trade dress as is allowed by any and all Federal intellectual
property protection laws. We invest heavily in your coop and work very hard to do a good job and it is only fair that our workers benefit for their hard work.
Coop™
Help Text-line: 512-596-5200
EMAIL: support@urbancoopcompany.com re: Assembly Support
VOICE: 877-741-COOP | Assembly Support ext 3

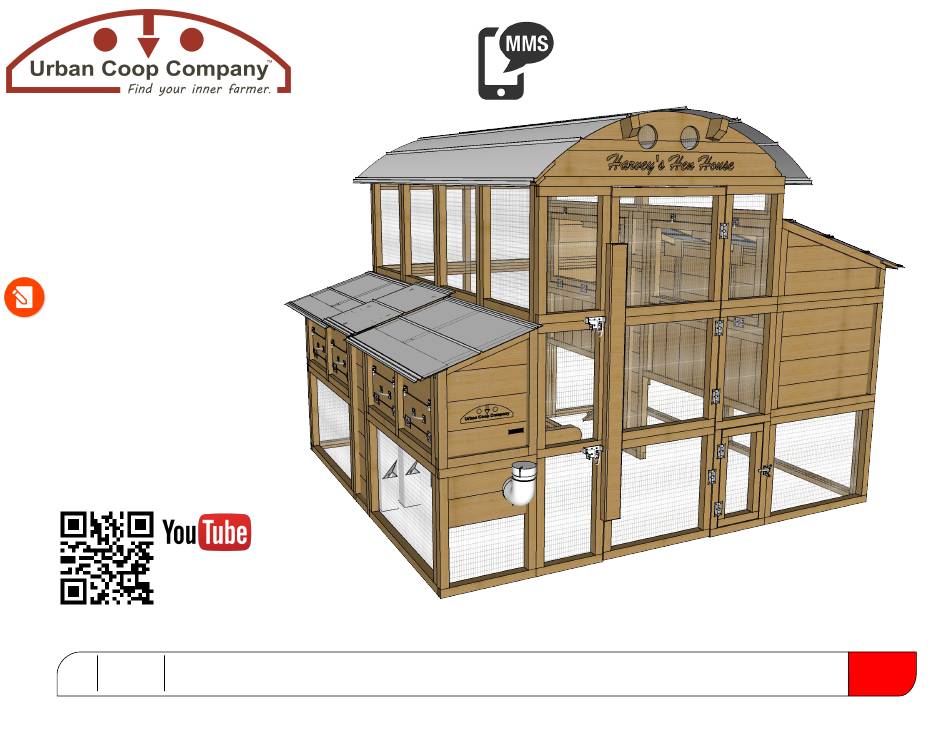

Shown With Optional Waterer & Feeder

Advertisement

loading
Need help?

Need help?

Do you have a question about the Round-TopWalk-InCoop Harvey's Hen House and is the answer not in the manual?

Questions and answers

Summary of Contents for Urban Coop Company Round-TopWalk-InCoop Harvey's Hen House

  • Page 1 Use your phones camera to read QR Code. Representation of procedure... not instructions. Copyright ® Urban Coop Company all rights reserved. This document is provided to you for your own personal limited use as a paying customer to assemble your coop. We Summer consider these instructions company intellectual property and are granting you limited personal use only.
  • Page 2 Front Left Roost Area Egg Boxes Turn-Out Door Run Door Optional Waterer Run Roof Page Right Back We recommend having the right side of your coop facing North in weather intense locations.
  • Page 3 119-5/8" 22 x 11 3/8 Optional Waterer Turn-Out Door Optional Feeders Exterior measurements Sun Room Option are to the outside edges of the ground foot print. Ground contact panels are 1¾ inches wide. Page...
  • Page 4 Some things you should know... Understanding these concepts / conventions will help guide you through the instructions. Mating edges of parts to be flush and tight (when called for) will keep measurements in tolerance as the coop grows in size. �...
  • Page 5: Please Be Careful

    Please Be Careful Coop is designed to be assembled by two people of ordinary skill. Some of the steps will need to be performed from a six foot or taller step ladder. If you are not comfortable and experienced standing on and working from a ladder you may want to get some help for those steps.
  • Page 6 Tools & Loose Parts QTY Description Gold T-25 4½" Screws Brown T-25 3” Screws Green T-20 1 5/8” Screws Bolt Style Gate Latch Locking Clip Door Handles (if not attached) Eye Bolt & Hooks Neoprene Washer Roof Screws 3” Door Hinges & ~24 #8 Flat Head Screws Bit Holder T-25 Bit T-20 Bit...
  • Page 7: Front Wall

    Front Wall Back Wall A4 Front Arc D2 Back Arc A3 L A3 R A1 Up D1 Up A1 Mid D1 Mid A1 Low D1 Low Door shipped with retainer screw, A5 Door A2 R latch hardware installed by customer. Handle A2 L Hinge locations...
  • Page 8 B6 Drip Flashing Beveled Top Edge B1 L B1 ML B1 MR B1 R Wire Side B2-R B2-L Looking From Inside B 5.4 B 5.3 B 5.1 B 5.2 Page...
  • Page 9 Wire side Beveled Looking From Inside Top Edge 2 Stock CoroClear® storm panels with magnets installed to offer wind protection for C2L and C2R panels. Page...
  • Page 10 E2 Roof Supports E1 Mid-Arc E3 Eaves 2 Sets of 3 Magnet Beveled Top Edges Magnet Page...
  • Page 11 Beveled Edge G10-ML G10-R G10-L G10-MR G9-L G9-R Wire On Backside Looking From Outside Page...
  • Page 12 Back Front G2 Front G2 Back Flush Edge Roost Bar G3 Back Support Bracket G3 Front Wire to the Inside Mirrored Sets Page...
  • Page 13 G15 Upper Roost Roof Metal G15 Lower Roost Roof Metal G12 Roof Supports 3X Trimmed Edge G13 Roof Support Brackets 3X 3X G11 Eave Boards Looking From Under side Page...
  • Page 14 G4 Roost Bars 4X G7 Roost Ramp Supports 2X G8 Mid Roost Bar Support G14 Mid Roost Bar Support Bracket Hinges G5 Longer Ramp G5 Upper Ramp 2X G6 Roost Ramp Landing Page...
  • Page 15 Beveled Top Edges F10 L F10 R 12-1/2" Wire to Back Looking From Outside Page...
  • Page 16 Front Back Wire Side Hole For Optional Waterer Mirrored Parts Page...
  • Page 17 F7 Inner Dividers Magnets F6 Outer Dividers F8 Egg Box Floor F9 Feeder Bracket For Optional Feeders Page...
  • Page 18 F15 Left Eggbox Roof F16 Feeder Area Roof F15 Right Eggbox Roof Lipped Edge Lipped Edge Magnet F14 Eave F13 Eave Beveled Edge Page...
  • Page 19 F3 Optional Feeders Standard Poultry Nipples F5 Waterer Brackets F4 Optional Waterer (delivered in 2 sections) Page...
  • Page 20 Must be built on level ground. Finished coop will weigh 800+ pounds and is not designed to be moved. Showing back side of finished run as if you ordered the double-door option. Front and back would be the same. If you did not order double door kit, it will be solid as illustrated in the following section.
  • Page 21 T25 Bit Bit Holder T25 Brown Screw Included Your Drill Included Included If you bought order of double door kit, there are no "D" assembly panels. Build another Green arrows indicate "A" panel wall just a Brown T25 Screw like in front on back too and its direction.
  • Page 22 Same On Front And Open Doors To Access Back Flush Tops Screw Holes. Swing Inward Bottom Edge C1L Lines Up Wire To Seam Between C2-L D Panels, about 25 inches up from bottom C2-R C1-L C1-R Back No D-Wall If You Have Double Door Option.
  • Page 23 D1 Upper Panel Bevel Slant Out B1MR B1ML Open Doors Screws Back Access These Screws From Other Side If you don't see screw holes check other Front side of board. If we goofed up and missed a hole, we include a drill bit.
  • Page 24 Wire Facing In Open C2 Doors A3-R Bevel Out D1 Top to Access Screws C3-R C3-L C2-R C2-L Access These Two Screws From Other Side Front Wire Side Back Page...
  • Page 25 E2 Roof Supports D2 back Lock into notches. arc screw in up from A4 Front D1 top Arc. Front After installing E2 supports slide up E1 mid roof support from bottom, centered, and affix to underside of E2 supports with screws. Fit best way...
  • Page 26 Using provided level Door Side Stakes double check top edges... Hammer Door Stakes Into Should be pretty close. Pre Drilled Holes To Pin Door Width Into Place All 4 Inside Corners your Should Be hammer. 90° Angles Use your measuring tape in step 1.
  • Page 27 Beveled Edge Top Flush On B1's Edge Push Up To Here Screw Middle E3 Eave Is Centered Into Top Magnet Helps Supports Edge Hold Roof of B1's Eave Boards - Repeat other side While Installing ~3¾ Over- Hang Use Bit Holder No Bit Long E3 Eave T-20 In Middle...
  • Page 28 Instructions going forward will omit some complexity as HOPEFULLY we did a good job laying some common foundations and you are catching on to the techniques and our lingo. You can always call our support hotline at 877- 741-2667 or text your questions and photos to 512-596-5200.
  • Page 29 Overhangs About ½" Each End Install center G11 eave first. Then outer eaves. Beveled edge to top. Flush with edges of G10's G10R G10MR G10ML G10L Overhang Beveled Edge Flush Repeat Back Side See Next Page Page Repeat Back Side Wire Out If You Ordered Sunroom Option...
  • Page 30 Skip Page If You Did Not Order Sunroom Option. Centered Front Support panel in place of G9's. G9's will get used in Sunroom. Page See Sun-Room instructions addendum for additional details to be completed after this packet.
  • Page 31 G13 Bracket Brackets flush with Measured to center slant of eaves of cut-out on bracket Centered Center at 41 3/4 to top of G14 Bracket Top Edges Flush 1¼ T-20 Torx Illustrated without the sunroom Don't over-drive support panel for remainder of screws or they instructions until end when may stick out...
  • Page 32 Roof screws along edges Roof Screw and on supports into Tighten only enough to compress pre-drilled holes. rubber washer. 2 G15 Roof Panels 103" Tap G12 roost roof supports in to place and secure into place as illustrated in Fig 1. Lip Out Top edge of upper roof panel jambs up against...
  • Page 33 G8 mid roost support. Screw in from front and back sides. Place roost bars with notches towards outside. Place G7 Roost Ramp Supports In Roost Bar Notches Attach G5 Longer ramp to G6 platform with E5 screws. Either side is fine, towards front is best.
  • Page 34 Page...
  • Page 35 Screws on this end same as other end. Lower F1 panel is all wire. Attach front & back F2 panels. Front F1 has water cutout. Drop doors Attach left and right to access screw door panels. holes. F10L Flush F10R F11L Logo Attach bottom...
  • Page 36 Screw in 4 eye hooks where indicated. Cup hooks can hold open doors when hooked into the wire panels above. 4 B5 Jump Bar brackets. E4 screws from back side, two for each bracket. 2 B4 Bars (same) Bottom edge of brackets flush with door frame and door side.
  • Page 37 All this row of screws Back edge of floor installs flush from outside... with bottom board of egg box door panels, screws in from outside. Wire Facing Down Install Flush With Bottom Edge With Wire On This Side Screw on from sides and back.
  • Page 38 Ledge boards of both inner F6 F6 outer divider Gently tap upper dividers face outwards. Have no magnets. F9 into center area wire side down to inside, about 4 inches down Slide dividers downward. and level. Tap into place if needed. Bottom out to the floor.
  • Page 39 Insert feeders... B2 screws Shorter feeders. in to F6's on both sides. Taller feeders. After glue is dried, insert water tube into the position shown and have someone hold in place. Egg box center support Attach both F5 support brackets from bottom into center support of egg box floor to where it Install...
  • Page 40 Lipped Fold to inside on F15's Edge Out F16 panel covers feeders and is held in place by magnets. Force up against edge of coop. Screw in place with back edge flush the 2 F13 outer eave boards and the center F14 eave board.
  • Page 41 An extra hook and eye set Handle Center A5 door handle on left rail of door. is provided if you want to Screws It will overhang about an inch on both sides. install inside of coop. In from back side of door.
  • Page 42 Some things to know about using your new Round-Top Walk-In™ Chicken Coop Egg Box Liners: You will need to put some sort of a liner in the bottom of the egg boxes. We recommend a cut up doormat that can be washed.
