- Page 1 Votre distributeur en France MS- ‐ AlbedoQuickStartGuide ForallMS- ‐ 80/60/40models...
-
Page 2: Included Items

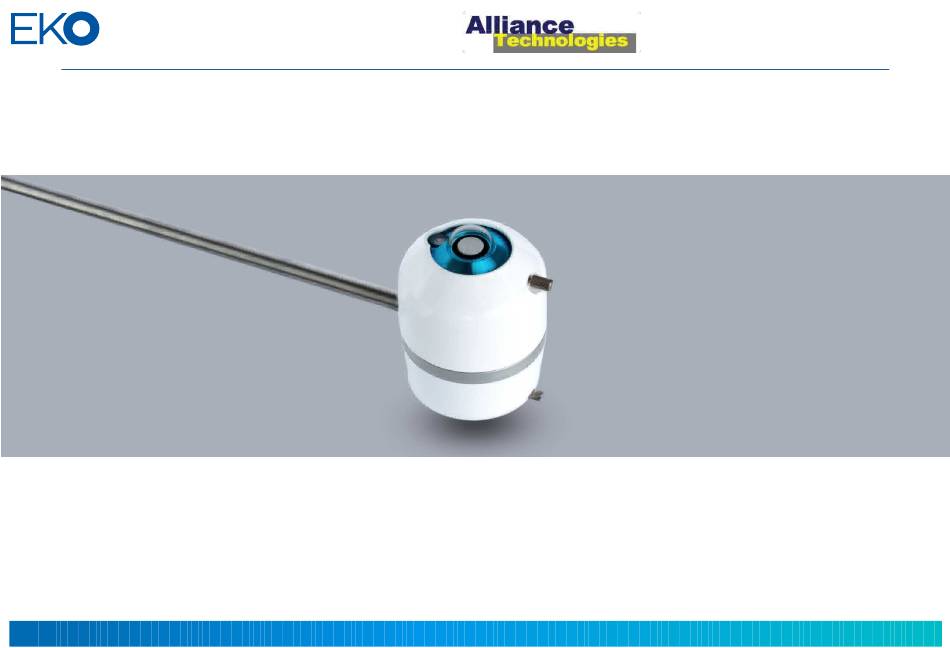

Votre distributeur en France Outline Thank you for using EKO Products. For installa(on of the pyranometers in combina(on w the MS- ‐Albedo plate the instruc(ons are in the Quick Start Guide. 1. Included items 2. Setup loca(on 3. Assembly 1.Includeditems •... - Page 3 Votre distributeur en France 2.Set- ‐ uplocaFon The MS- ‐Albedo configura(on can be setup onsite. Use a solid base to mount the arm i horizontal or (lted posi(on with the arm oriented towards the nearest pole (horizontal posi(on). The op(mal height and (lt* posi(on depend on the applica(on. *An op(onal (lt bracket is available to mount in horizontal or (lt posi(on.
- Page 4 Votre distributeur en France 3.Assembly 1. AXach the albedo arm to a solid base (Pole, frame, table). Alliance Technologies, 13 rue de Boisbonnard, 37150 Dierre France - 0247303345 - contact@alliance-technologies.net...
- Page 5 Votre distributeur en France 3.Assembly 2. Remove the sunscreen and leveling feet from the 2 pyranometers. The pyranometers can be directly mounted to the plate. Alliance Technologies, 13 rue de Boisbonnard, 37150 Dierre France - 0247303345 - contact@alliance-technologies.net...
- Page 6 Votre distributeur en France 3.Assembly 3. AXach the pyranometers to the plate using the M5 bolts, washers and nuts provided the pyranometers (step 1- ‐4). Flip plate with sensor Alliance Technologies, 13 rue de Boisbonnard, 37150 Dierre France - 0247303345 - contact@alliance-technologies.net...
- Page 7 Votre distributeur en France 3.Assembly 4. AXach the glare- ‐screen* to the sunscreen. *Only for the downward facing sensor 1. Insert 2. Put in posi(on 3. Rotate 90 degrees Alliance Technologies, 13 rue de Boisbonnard, 37150 Dierre France - 0247303345 - contact@alliance-technologies.net...
- Page 8 Votre distributeur en France 3.Assembly 5. AXach the two sunscreens. Alliance Technologies, 13 rue de Boisbonnard, 37150 Dierre France - 0247303345 - contact@alliance-technologies.net...
