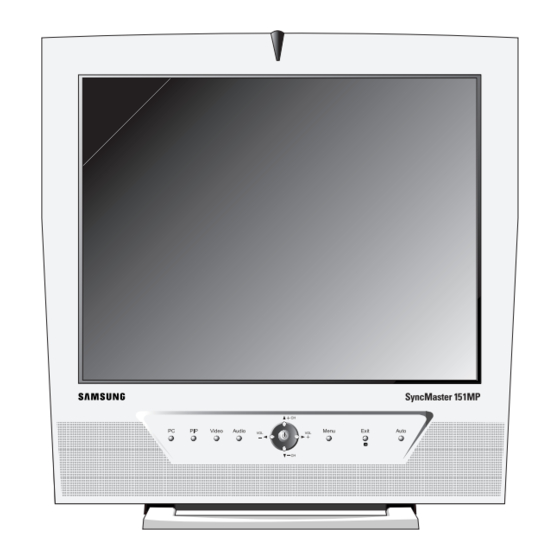

Samsung RB15AS Service Manual

Tft-lcd monitor
Hide thumbs

Advertisement

Quick Links

SERVICE
TFT-LCD MONITOR
TFT-LCD MONITOR
RB15AS
RB15NS
Manual
CONTENTS
4. Alignment & Adjustments
7. Electrical Parts List
11. Panel Description

Advertisement

loading
Need help?

Need help?

Do you have a question about the RB15AS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Samsung RB15AS

Summary of Contents for Samsung RB15AS

  • Page 1: Table Of Contents

    TFT-LCD MONITOR RB15AS RB15NS SERVICE Manual TFT-LCD MONITOR CONTENTS 1. Precautions 2. Product Specifications 3. Disassembly & Reassembly 4. Alignment & Adjustments 5. Troubleshooting 6. Exploded View & Parts List 7. Electrical Parts List 8. Block Diagram 9. Wiring Diagram 10.
  • Page 2 Samsung Electronics Co.,Ltd. 416, Maetan-3Dong, Paldal-Gu, Suwon City, Kyungki-Do, Korea. Printed in Korea P/N : BN68-00220A-00 http://www.samsungmonitor.com (SyncMaster Worldwide) http://www.samsung-monitor.com (SyncMaster USA) http://www.samtron.com (SAMTRON Worldwide) http://www.sec.co.kr/monitor (Korea)

  • Page 3: Precautions

    A substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire and / or other hazards. Product safety is under review continuously and new instructions are issued whenever appropriate. RB15AS/RB15NS...
  • Page 4 Use only an anti-static solder removal device. Some brushing clothes together, or lifting your foot from solder removal devices not classified as “anti-static” a carpeted floor can generate enough static can generate electrical charges sufficient to damage electricity to damage an ESD. ESDs. RB15AS/RB15NS...

  • Page 5: Product Specifications

    Operating Temperature : 50 °F ~ 104 °F (10 °C ~ 40 °C) Humidity : 10 % ~ 80 % Storage Temperature : -13 °F ~ 113 °F (-25 °C ~ 45 °C) Humidity : 5 % ~ 95 % RB15NS RB15AS Tunning Frequency Synthesize Frequency Synthesize TV System...
  • Page 6 Not Used Not Used DDC Clock DDC Clock DDC Clock Sync Type DTV 15pin connector Pin No. Red , Y Green , Pb Blue , Pr GND-Red GND-Green GND-Blue No Connection No Connection Horizontal sync. Vertical sync. No Connection RB15NS/RB15AS...
  • Page 7 0.026ms 0.027ms Sync. width 0.064ms 0.064ms 0.064ms 0.079ms 0.080ms Back porch 1.716ms 0.858ms 0.794ms 0.528ms 0.427ms Sync. polarity Negative Positive Negative Negative Negative Dot Clock 25.175MHz 28.322MHz 25.175MHz 31.500MHz 31.500MHz Sync. Type Separate Separate Separate Separate Separate Scan Type RB15NS/RB15AS...
  • Page 8 12.549ms Data time 0.017ms 0.086ms 0.020ms Front porch 0.050ms 0.086ms 0.060ms Sync. width 0.466ms 1.114ms 0.784ms Back porch Positive Negative Negative Sync. polarity 30.240MHz 57.284MHz 78.750MHz Dot Clock Separate Separate Separate Sync. Type Composite Composite Sync.-on-G Sync.-on-G Scan Type RB15NS/RB15AS...
  • Page 9 60Hz Total time 33.333ms 16.667ms 16.683ms Border (T / B) 0.000ms 0.000ms 0.000ms Data time 16.000ms 15.349ms Front porch 0.059ms 0.111ms 0.191ms Sync. width 0.148ms 0.111ms 0.191ms Back porch 0.444ms 0.444ms 0.953ms Sync. polarity Dot Clock 75MHz 75MHz 27MHz RB15NS/RB15AS...
  • Page 10 2 Product Specifications Memo RB15NS/RB15AS...

  • Page 11: Disassembly & Reassembly

    3 Disassembly and Reassembly This section of the service manual describes the disassembly and reassembly procedures for the RB15AS/15NS monitor. WARNING: This monitor contains electrostatically sensitive devices. Use caution when handling these components. 3-1 Disassembly Cautions:1. Disconnect the monitor from the power source before disassembly.
  • Page 12 LCD module : opposite process 2 and 3 Replacement of lamp unit should be done at the power off state and recommended clean bench condition. 3-3 Reassembly Reassembly procedures are in the reverse order of Disassembly procedures. RB15AS/RB15NS...
  • Page 13 6. Do not attempt to connect or disconnect any wire while the TV is turned on. Make sure that the power cord is disconnected before replacing any parts. 7. To protect aganist shock hazard,use an isolation transform. RB15AS/RB15NS...
  • Page 14 4 Alignments and Adjustments Memo RB15AS/RB15NS...

  • Page 15: Troubleshooting

    Does proper DC 12V appear at Check IC109. Pin 2 of IC109? Does proper DC 3.3 V appear at Check IC120. Pin 1 of IC120? Does proper DC 2.5 V appear at Check IC120. Pin 3 of IC120? Check IC122. RB15AS/RB15NS...
  • Page 16 RA100 ~ RA105? Does the clock pulse appear at Check IC106 and related circuit of IC106. Pin 37 ~ 48 of IC106? Does the clock pulse appear at Replace FT105 ~ FT114. output of FT105 ~ 114? Replace LCD Panel. RB15AS/RB15NS...
  • Page 17 5-3 No Picture (TV, Video, S-Video) Check Pin 9 (5V_TUNER) Check CN137 and related circuit of IC137. of CN113. Check Pin 1 (RF_CVBS) of CN113. Replace Tuner. Check related circuit of IC121 Check IC121 (VPC3230D). and replace IC121. Check IC119 (PW264A) and replace mainboard. RB15AS/RB15NS...
  • Page 18 Pin 16 of IC151? and Headphone output. Check Pin 10 and 13 of Replace IC151. IC151(TA1101B)? Check Pin 67 of Replace IC112 (MSP3451 or 21). IC112 (MSP3451 or 21)? Check CN113 and tuner and related circuit of CN113 and tuner. RB15AS/RB15NS...
  • Page 19 RA110 ~ RA117? Does the clock pulse appear at Check IC106 and related circuit of IC106. Pin 37 ~ 48 of IC106? Does the clock pulse appear at Replace FT105 ~ FT114. output of FT105 ~ FT114? Replace LCD Panel. RB15AS/RB15NS...
  • Page 20 5 Troubleshooting Memo RB15AS/RB15NS...
  • Page 21 6 Exploded View and Parts List RB15AS/RB15NS...

  • Page 22: Exploded View & Parts List

    6 Exploded View & Parts List Memo RB15AS/RB15NS...
  • Page 23 7 Electrical Parts List 7-1 RB15AS Main PCB Parts Loc. No. Code No. Description Specification Remarks C501 2401-001363 C-AL 470uF,20%,16V,GP,TP,10x12.5,5 0201-001223 ADHESIVE-TS HT-130S,RED,700+/- 50,- BN75-00155B UNIT-SHIELD, DSUB RB15AS,-,SPTE T0.5,-,-,-,- BN46-00007X MICOM-S/W,REMBRANT15 RB15AS(REMBRANT),-,-,-,-,-,- CN100 3711-000057 CONNECTOR-HEADER BOX,3P,1R,2.5mm,ANGLE,SN CN107 3711-004270 CONNECTOR-HEADER BOX,2P,1R,2MM,ANGLE,SN...
  • Page 24 2203-000701 C-CERAMIC,CHIP 0.002nF,0.25pF,50V,NP0,TP,2012 C201 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 C202 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C203 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C204 2203-001077 C-CERAMIC,CHIP 0.056nF,5%,50V,NP0,TP,2012 C205 2203-001077 C-CERAMIC,CHIP 0.056nF,5%,50V,NP0,TP,2012 C206 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C207 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C208 2203-000701 C-CERAMIC,CHIP 0.002nF,0.25pF,50V,NP0,TP,2012 C209 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 RB15AS/RB15NS...
  • Page 25 2203-000626 C-CERAMIC,CHIP 0.022nF,5%,50V,NP0,TP,1608 C256 2203-000626 C-CERAMIC,CHIP 0.022nF,5%,50V,NP0,TP,1608 C257 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C258 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, C260 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C261 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm C263 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, C264 2203-000989 C-CERAMIC,CHIP 47nF,10%,50V,X7R,TP,2012 C265 2203-000140 C-CERAMIC,CHIP 1.5nF,10%,50V,X7R,TP,1608,- C266 2402-000135 C-AL,SMD 22uF,20%,16V,GP,TP,5.3x5.3x5.4 RB15AS/RB15NS...
  • Page 26 2402-000170 C-AL,SMD 1uF,20%,50V,GP,TP,4.3x4.3x5.4, C309 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, C310 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, C311 2402-000179 C-AL,SMD 47uF,20%,16V,GP,TP,6.6x6.6x5.4 C312 2203-005189 C-CERAMIC,CHIP 680nF,+80-20%,16V,Y5V,TP,2012, C313 2203-000972 C-CERAMIC,CHIP 47nF,10%,16V,X7R,TP,1608 C314 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, C315 2203-001402 C-CERAMIC,CHIP 220nF,+80-20%,16V,Y5V,TP,1608 C316 2409-001029 C-ORGANIC 120uF,20%,6.3V,WT,TP,10.3x10.3x10.3mm,9 C317 2203-000903 C-CERAMIC,CHIP 0.0047nF,0.25pF,50V,NP0,TP,1608 RB15AS/RB15NS...
  • Page 27 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C361 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C366 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C367 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 C368 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C374 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C381 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm C382 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C383 2203-000815 C-CERAMIC,CHIP 0.033nF,5%,50V,NP0,TP,1608 C384 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 RB15AS/RB15NS...
  • Page 28 2203-000903 C-CERAMIC,CHIP 0.0047nF,0.25pF,50V,NP0,TP,1608 C453 2409-001029 C-ORGANIC 120uF,20%,6.3V,WT,TP,10.3x10.3x10.3mm,9 C454 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C457 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C458 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C459 2203-001158 C-CERAMIC,CHIP 0.068nF,5%,50V,NP0,TP,2012 C460 2203-001158 C-CERAMIC,CHIP 0.068nF,5%,50V,NP0,TP,2012 C461 2203-001630 C-CERAMIC,CHIP 330nF,+80-20%,16V,Y5V,TP,1608 C462 2203-001630 C-CERAMIC,CHIP 330nF,+80-20%,16V,Y5V,TP,1608 C463 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm RB15AS/RB15NS...
  • Page 29 2203-001391 C-CERAMIC,CHIP 150nF,10%,25V,X7R,TP,2012,- C552 2203-001391 C-CERAMIC,CHIP 150nF,10%,25V,X7R,TP,2012,- C553 2203-001391 C-CERAMIC,CHIP 150nF,10%,25V,X7R,TP,2012,- C554 2203-001391 C-CERAMIC,CHIP 150nF,10%,25V,X7R,TP,2012,- C555 2203-001391 C-CERAMIC,CHIP 150nF,10%,25V,X7R,TP,2012,- C556 2203-001391 C-CERAMIC,CHIP 150nF,10%,25V,X7R,TP,2012,- C557 2203-001391 C-CERAMIC,CHIP 150nF,10%,25V,X7R,TP,2012,- C558 2203-001391 C-CERAMIC,CHIP 150nF,10%,25V,X7R,TP,2012,- C559 2203-001391 C-CERAMIC,CHIP 150nF,10%,25V,X7R,TP,2012,- C560 2203-001391 C-CERAMIC,CHIP 150nF,10%,25V,X7R,TP,2012,- RB15AS/RB15NS...
  • Page 30 2503-001018 C-NETWORK 15PFX4,10%,50V,- CA130 2503-001019 C-NETWORK 33PFX4,10%,50V,CHIP CA131 2503-001019 C-NETWORK 33PFX4,10%,50V,CHIP CN102 3711-003161 CONNECTOR-HEADER BOX,20P,1R,1.25mm,ANGLE,SN CN105 3711-002046 CONNECTOR-HEADER 3WALL,12P,1R,1.25mm,SMD-S,SN CN109 3711-002127 CONNECTOR-HEADER BOX,8P,1R,1.25mm,SMD-A,SN CN114 3711-003938 CONNECTOR-HEADER 3WALL,15P,1R,1.25mm,SMD-S,SN D102 0402-000553 DIODE-RECTIFIER SS24,40V,2.0A,DO-214AA D103 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,600mA,SOT-23,TP D104 0403-001052 DIODE-ZENER RD8.2MB,8.2V,7.7-8.64V,200mW,S RB15AS/RB15NS...
  • Page 31 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- FT133 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1 FT134 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1 FT135 2901-001133 FILTER-EMI SMD 25V,0.15A,-,33pF,2x1.25x0.8mm,TP FT136 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1 FT137 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1 FT139 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1 FT140 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- RB15AS/RB15NS...
  • Page 32 74LCX32,OR GATE,SOIC,14P,150MI IC124 1205-002002 IC-MULTIPLIER ICS512MT,SOIC,8P,153MIL,PLASTIC,7V,-,0TO+70C,TP,PLL CLOCK MULTIPLIER IC125 1205-002002 IC-MULTIPLIER ICS512MT,SOIC,8P,153MIL,PLASTIC,7V,-,0TO+70C,TP,PLL CLOCK MULTIPLIER IC127 1103-000138 IC-EEPROM 24C16,2Kx8BIT,SOP,8P,150MIL,10 IC128 1203-001109 IC-VOL. DETECTOR 7045,SOT-89,3P,-,PLASTIC,4.3/4 IC129 0801-002267 IC-CMOS LOGIC 74LCX14,-,SOIC,14P,150MIL,-,TP,-,-,-,3.6V,-40TO+85C,-,5.5V,-,-,24MA IC130 1103-001164 IC-EEPROM 24LC21A,128X8BIT,SOP,8P,150MIL,-,5V,10%,PLASTIC,0 TO +70C,100UA,CMOS,TP IC134 1002-001179 IC-A/D CONVERTER AD9884,8BIT,QFP,128P,-,1/2LSB,TR,CMOS,PLASTIC,4V,0TO+85C,500MW,- 7-10 RB15AS/RB15NS...
  • Page 33 Q112 0501-002080 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270 Q113 0501-002080 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270 R100 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608 R101 2007-000102 R-CHIP 100Kohm,5%,1/16W,DA,TP,1608 R102 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608 R103 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608 R104 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608 R105 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608 R106 2007-000102 R-CHIP 100Kohm,5%,1/16W,DA,TP,1608 RB15AS/RB15NS 7-11...
  • Page 34 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R164 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R165 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R166 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R168 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R169 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R172 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608 R173 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608 R174 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608 R175 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608 7-12 RB15AS/RB15NS...
  • Page 35 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R221 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R222 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R223 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608 R224 2007-000075 R-CHIP 220ohm,5%,1/16W,DA,TP,1608 R225 2007-000075 R-CHIP 220ohm,5%,1/16W,DA,TP,1608 R227 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608 R228 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608 R229 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608 R230 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608 RB15AS/RB15NS 7-13...
  • Page 36 R-CHIP 1Kohm,5%,1/16W,DA,TP,1608 R285 2007-001167 R-CHIP 75ohm,5%,1/16W,DA,TP,1608 R286 2007-000078 R-CHIP 1Kohm,5%,1/16W,DA,TP,1608 R287 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608 R288 2007-000078 R-CHIP 1Kohm,5%,1/16W,DA,TP,1608 R289 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608 R290 2007-000078 R-CHIP 1Kohm,5%,1/16W,DA,TP,1608 R291 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R292 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R293 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 7-14 RB15AS/RB15NS...
  • Page 37 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R333 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R334 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608 R335 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R336 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608 R337 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R338 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R339 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R340 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R341 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 RB15AS/RB15NS 7-15...
  • Page 38 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608 R389 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R390 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608 R391 2007-000102 R-CHIP 100Kohm,5%,1/16W,DA,TP,1608 R392 2007-000078 R-CHIP 1Kohm,5%,1/16W,DA,TP,1608 R393 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R394 2007-001167 R-CHIP 75ohm,5%,1/16W,DA,TP,1608 R395 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R396 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R397 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 7-16 RB15AS/RB15NS...
  • Page 39 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R455 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R456 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R457 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R462 2007-000078 R-CHIP 1Kohm,5%,1/16W,DA,TP,1608 R463 2007-000072 R-CHIP 47ohm,5%,1/16W,DA,TP,1608 R465 2007-000082 R-CHIP 3.3Kohm,5%,1/16W,DA,TP,1608 R469 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R470 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R471 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608 RB15AS/RB15NS 7-17...
  • Page 40 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608 R549 2007-000113 R-CHIP 33ohm,5%,1/16W,DA,TP,1608 R557 2007-000077 R-CHIP 470ohm,5%,1/16W,DA,TP,1608 R559 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R560 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608 R561 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608 R562 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608 R564 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608 R565 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608 R566 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608 7-18 RB15AS/RB15NS...
  • Page 41 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP RA104 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP RA105 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP RA106 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP RA107 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP RA108 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP RA109 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP RA110 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP RA111 2011-000585 R-NETWORK 47ohm,5%,63mW,L,CHIP,8P,TP RA112 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP RB15AS/RB15NS 7-19...
  • Page 42 DIODE-ZENER RD8.2MB,8.2V,7.7-8.64V,200mW,S ZD119 0403-001052 DIODE-ZENER RD8.2MB,8.2V,7.7-8.64V,200mW,S ZD120 0403-001052 DIODE-ZENER RD8.2MB,8.2V,7.7-8.64V,200mW,S ZD121 0403-001052 DIODE-ZENER RD8.2MB,8.2V,7.7-8.64V,200mW,S ZD126 0403-001052 DIODE-ZENER RD8.2MB,8.2V,7.7-8.64V,200mW,S ZD127 0403-001052 DIODE-ZENER RD8.2MB,8.2V,7.7-8.64V,200mW,S ZD128 0403-001052 DIODE-ZENER RD8.2MB,8.2V,7.7-8.64V,200mW,S ZD129 0403-001052 DIODE-ZENER RD8.2MB,8.2V,7.7-8.64V,200mW,S ZD130 0403-001052 DIODE-ZENER RD8.2MB,8.2V,7.7-8.64V,200mW,S ZD131 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23 7-20 RB15AS/RB15NS...
  • Page 43 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C117 2402-000170 C-AL,SMD 1uF,20%,50V,GP,TP,4.3x4.3x5.4, C118 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C120 2203-000626 C-CERAMIC,CHIP 0.022nF,5%,50V,NP0,TP,1608 C121 2203-000626 C-CERAMIC,CHIP 0.022nF,5%,50V,NP0,TP,1608 C122 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm C134 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C140 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm C147 2203-000440 C-CERAMIC,CHIP 1nF,10%,50V,X7R,TP,1608,- C151 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 RB15AS/RB15NS 7-21...
  • Page 44 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C196 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C198 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C199 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C200 2203-000701 C-CERAMIC,CHIP 0.002nF,0.25pF,50V,NP0,TP,2012 C201 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 C202 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C203 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C204 2203-001077 C-CERAMIC,CHIP 0.056nF,5%,50V,NP0,TP,2012 C205 2203-001077 C-CERAMIC,CHIP 0.056nF,5%,50V,NP0,TP,2012 7-22 RB15AS/RB15NS...
  • Page 45 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C246 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C247 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, C248 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, C249 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, C250 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, C251 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, C252 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, C253 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 C254 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, RB15AS/RB15NS 7-23...
  • Page 46 C-CERAMIC,CHIP 1.5nF,10%,50V,X7R,TP,1608,- C298 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, C299 2203-000839 C-CERAMIC,CHIP 0.39nF,5%,50V,NP0,TP,2012 C300 2203-000140 C-CERAMIC,CHIP 1.5nF,10%,50V,X7R,TP,1608,- C301 2203-001402 C-CERAMIC,CHIP 220nF,+80-20%,16V,Y5V,TP,1608 C302 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, C303 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, C304 2203-000491 C-CERAMIC,CHIP 2.2nF,10%,50V,X7R,TP,1608,- C305 2203-001402 C-CERAMIC,CHIP 220nF,+80-20%,16V,Y5V,TP,1608 C306 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 7-24 RB15AS/RB15NS...
  • Page 47 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, C348 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C349 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C350 2402-000179 C-AL,SMD 47uF,20%,16V,GP,TP,6.6x6.6x5.4 C351 2203-000257 C-CERAMIC,CHIP 10nF,10%,50V,X7R,TP,1608 C352 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C353 2402-000144 C-AL,SMD 3.3uF,20%,50V,GP,TP,4.3x4.3x5. C354 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C355 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm C356 2203-000189 C-CERAMIC,CHIP 100nF,+80-20%,25V,Y5V,TP,1608, RB15AS/RB15NS 7-25...
  • Page 48 C-AL,SMD 1uF,20%,50V,GP,TP,4.3x4.3x5.4, C398 2203-000726 C-CERAMIC,CHIP 3.9nF,10%,50V,X7R,TP,1608,- C400 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C401 2203-005065 C-CERAMIC,CHIP 1000nF,+80-20%,10V,Y5V,TP,1608 C402 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C403 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 C404 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C405 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C406 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C407 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 7-26 RB15AS/RB15NS...
  • Page 49 C-CERAMIC,CHIP 0.0047nF,0.25pF,50V,NP0,TP,1608 C449 2203-000903 C-CERAMIC,CHIP 0.0047nF,0.25pF,50V,NP0,TP,1608 C450 2203-000972 C-CERAMIC,CHIP 47nF,10%,16V,X7R,TP,1608 C451 2203-000972 C-CERAMIC,CHIP 47nF,10%,16V,X7R,TP,1608 C452 2203-000903 C-CERAMIC,CHIP 0.0047nF,0.25pF,50V,NP0,TP,1608 C453 2409-001029 C-ORGANIC 120uF,20%,6.3V,WT,TP,10.3x10.3x10.3mm,9 C454 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C455 2203-001158 C-CERAMIC,CHIP 0.068nF,5%,50V,NP0,TP,2012 C456 2203-001158 C-CERAMIC,CHIP 0.068nF,5%,50V,NP0,TP,2012 C457 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 RB15AS/RB15NS 7-27...
  • Page 50 C-CERAMIC,CHIP 0.0047nF,0.25pF,50V,NP0,TP,1608 C500 2203-005005 C-CERAMIC,CHIP 100nF,10%,16V,X7R,TP,1608 C503 2409-001029 C-ORGANIC 120uF,20%,6.3V,WT,TP,10.3x10.3x10.3mm,9 C514 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 C527 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm C528 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm C529 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm C530 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm C531 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm C532 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4mm 7-28 RB15AS/RB15NS...
  • Page 51 C-CERAMIC,CHIP 0.1nF,5%,50V,NP0,TP,1608 CA100 2503-001018 C-NETWORK 15PFX4,10%,50V,- CA101 2503-001018 C-NETWORK 15PFX4,10%,50V,- CA102 2503-001018 C-NETWORK 15PFX4,10%,50V,- CA103 2503-001018 C-NETWORK 15PFX4,10%,50V,- CA104 2503-001018 C-NETWORK 15PFX4,10%,50V,- CA105 2503-001018 C-NETWORK 15PFX4,10%,50V,- CA106 2503-001018 C-NETWORK 15PFX4,10%,50V,- CA107 2503-001018 C-NETWORK 15PFX4,10%,50V,- CA108 2503-001018 C-NETWORK 15PFX4,10%,50V,- RB15AS/RB15NS 7-29...
  • Page 52 DIODE-SWITCHING MMBD4148SE,75V,600mA,SOT-23,TP D113 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,600mA,SOT-23,TP D114 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,600mA,SOT-23,TP D115 0403-001052 DIODE-ZENER RD8.2MB,8.2V,7.7-8.64V,200mW,S D116 0403-001052 DIODE-ZENER RD8.2MB,8.2V,7.7-8.64V,200mW,S D117 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,600mA,SOT-23,TP D118 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,600mA,SOT-23,TP D119 0401-001056 DIODE-SWITCHING MMBD4148SE,75V,600mA,SOT-23,TP D120 0403-001052 DIODE-ZENER RD8.2MB,8.2V,7.7-8.64V,200mW,S D121 0403-001052 DIODE-ZENER RD8.2MB,8.2V,7.7-8.64V,200mW,S 7-30 RB15AS/RB15NS...
  • Page 53 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1 FT143 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1 FT144 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1 FT145 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1 FT147 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1 FT148 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1 FT149 2901-001114 FILTER-EMI SMD 25VDC,2.0ADC,-,100nF,3.2x1.6x1 FT150 3301-001145 CORE-FERRITE BEAD AB,4.5x1.6x1.6mm,-,- RB15AS/RB15NS 7-31...
  • Page 54 ICS512MT,SOIC,8P,153MIL,PLASTIC,7V,-,0TO+70C,TP,PLL CLOCK MULTIPLIER IC125 1205-002002 IC-MULTIPLIER ICS512MT,SOIC,8P,153MIL,PLASTIC,7V,-,0TO+70C,TP,PLL CLOCK MULTIPLIER IC126 0802-001007 IC-BICMOS LOGIC 74LCX244,BUFFER,TSSOP,20P,173MIL,OCTAL,TP,PLASTIC,TRI-STATE,-,0.55V,-40TO+85C,-, IC127 1103-000138 IC-EEPROM 24C16,2Kx8BIT,SOP,8P,150MIL,10 IC128 1203-001109 IC-VOL. DETECTOR 7045,SOT-89,3P,-,PLASTIC,4.3/4 IC129 0801-002267 IC-CMOS LOGIC 74LCX14,-,SOIC,14P,150MIL,-,TP,-,-,-,3.6V,-40TO+85C,-,5.5V,-,-,24MA IC130 1103-001164 IC-EEPROM 24LC21A,128X8BIT,SOP,8P,150MIL,-,5V,10%,PLASTIC,0 TO +70C,100UA,CMOS,TP IC131 0801-002171 IC-CMOS LOGIC 74LCX125,BUS BUFFER,SOP,14P,15 7-32 RB15AS/RB15NS...
  • Page 55 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270 Q102 0501-002080 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270 Q104 0501-002080 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270 Q106 0501-002080 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270 Q107 0501-002080 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270 Q108 0501-002080 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270 Q109 0501-002080 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270 Q110 0501-002080 TR-SMALL SIGNAL 2SC2412K,NPN,200mW,SC-59,TP,120-270 RB15AS/RB15NS 7-33...
  • Page 56 R-CHIP 3.3Kohm,5%,1/16W,DA,TP,1608 R151 2007-000082 R-CHIP 3.3Kohm,5%,1/16W,DA,TP,1608 R152 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R153 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R155 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608 R158 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608 R159 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608 R160 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R161 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R162 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 7-34 RB15AS/RB15NS...
  • Page 57 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R211 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R212 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R213 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R214 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R215 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R216 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R217 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R218 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608 R219 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 RB15AS/RB15NS 7-35...
  • Page 58 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R262 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R263 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R264 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608 R265 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R266 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R267 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R268 2007-000077 R-CHIP 470ohm,5%,1/16W,DA,TP,1608 R269 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608 R270 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 7-36 RB15AS/RB15NS...
  • Page 59 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R309 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R310 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R311 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R312 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R314 2007-000078 R-CHIP 1Kohm,5%,1/16W,DA,TP,1608 R315 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608 R316 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R317 2007-000084 R-CHIP 4.7Kohm,5%,1/16W,DA,TP,1608 R318 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 RB15AS/RB15NS 7-37...
  • Page 60 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R357 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R358 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R359 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R360 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R364 2007-000078 R-CHIP 1Kohm,5%,1/16W,DA,TP,1608 R365 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R366 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R367 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R368 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 7-38 RB15AS/RB15NS...
  • Page 61 R-CHIP 1Kohm,5%,1/16W,DA,TP,1608 R409 2007-001167 R-CHIP 75ohm,5%,1/16W,DA,TP,1608 R410 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608 R411 2007-000097 R-CHIP 47Kohm,5%,1/16W,DA,TP,1608 R412 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608 R413 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608 R414 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608 R415 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608 R416 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608 R417 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 RB15AS/RB15NS 7-39...
  • Page 62 R-CHIP 0ohm,5%,1/16W,DA,TP,1608 R465 2007-000082 R-CHIP 3.3Kohm,5%,1/16W,DA,TP,1608 R466 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608 R468 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608 R469 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R470 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R471 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608 R472 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608 R473 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R474 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608 7-40 RB15AS/RB15NS...
  • Page 63 R-CHIP 75ohm,5%,1/16W,DA,TP,1608 R516 2007-000102 R-CHIP 100Kohm,5%,1/16W,DA,TP,1608 R517 2007-000102 R-CHIP 100Kohm,5%,1/16W,DA,TP,1608 R518 2007-000082 R-CHIP 3.3Kohm,5%,1/16W,DA,TP,1608 R519 2007-000116 R-CHIP 120ohm,5%,1/16W,DA,TP,1608 R520 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608 R523 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608 R524 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608 R525 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608 R526 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608 RB15AS/RB15NS 7-41...
  • Page 64 R-CHIP 0ohm,5%,1/16W,DA,TP,1608 R630 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608 R631 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608 R632 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608 R633 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608 R634 2007-000070 R-CHIP 0ohm,5%,1/16W,DA,TP,1608 R635 2007-000074 R-CHIP 100ohm,5%,1/16W,DA,TP,1608 R636 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608 R637 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608 R638 2007-000090 R-CHIP 10Kohm,5%,1/16W,DA,TP,1608 7-42 RB15AS/RB15NS...
  • Page 65 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP RA117 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP RA118 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP RA119 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP RA120 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP RA121 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP RA122 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP RA123 2011-000002 R-NETWORK 22ohm,5%,63mW,L,CHIP,8P,TP X100 2801-003773 CRYSTAL-SMD 12MHZ,30PPM,28-AAN,20PF,50OHM,TP X101 2801-003843 CRYSTAL-SMD 18.432MHz,30ppm,28-AAN,20pF,50ohm,TP RB15AS/RB15NS 7-43...
  • Page 66 DIODE-ZENER RD8.2MB,8.2V,7.7-8.64V,200mW,S ZD124 0403-001052 DIODE-ZENER RD8.2MB,8.2V,7.7-8.64V,200mW,S ZD125 0403-001052 DIODE-ZENER RD8.2MB,8.2V,7.7-8.64V,200mW,S ZD126 0403-001052 DIODE-ZENER RD8.2MB,8.2V,7.7-8.64V,200mW,S ZD127 0403-001052 DIODE-ZENER RD8.2MB,8.2V,7.7-8.64V,200mW,S ZD128 0403-001052 DIODE-ZENER RD8.2MB,8.2V,7.7-8.64V,200mW,S ZD129 0403-001052 DIODE-ZENER RD8.2MB,8.2V,7.7-8.64V,200mW,S ZD130 0403-001052 DIODE-ZENER RD8.2MB,8.2V,7.7-8.64V,200mW,S ZD131 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23 ZD201 0403-000579 DIODE-ZENER BZX84C5V1,5.1V,5%,200mW,SOT-23 7-44 RB15AS/RB15NS...

  • Page 67: Block Diagram

    8 Block Diagram RB15AS/RB15NS...
  • Page 68 8 Block Diagrams Memo RB15AS/RB15NS...

  • Page 69: Wiring Diagram

    9 Wiring Diagram RB15AS/RB15NS...
  • Page 70 9 Schematic Diagrams Memo RB15AS/RB15NS...

  • Page 71: Schematic Diagrams

    PANEL_ON +3.3V_A +3.3V_B +3.3V_C +3.3V_P +3.3V_A +3.3V_P +3.3V GRE(7:0) +3.3V +3.3V GRO(7:0) GGE(7:0) +3.3V_A PLL_H GCOAST GBLKSPL GGO(7:0) CHK_DSUB GHSFOUT HSYNC_PC VSYNC_PC GBE(7:0) GREEN BLUE GBO(7:0) +3.3V GREEN GCLK BLUE HSYNC_PC +3.3V_A MAINPWB TXRX_ON SOG_EN GFBK VSYNC_PC *SOG_EN RB15AS/RB15NS 10-1...
  • Page 72 10 Schematic Diagrams 10-2 RB15AS/RB15NS...
  • Page 73 DTV_VC V_DVT_SM SCL3M DTV_VSYNC +3.3_DTV_ADC DTV_CS2 HSYNC_DTV VSYNC_DTV DTV_HSYNC SYNC_RY RYIN SDA5M GPbIN SCL5M SDA_M_5 +3.3_DTV_ADC SBCS# BPrIN M_SDA SCL_M_5 M_SCL +3.3V_D DTV_CS DTV_CS20 DTV_HOUT2 DTV_CS2 SCL5M +3.3V SDA5M DTV_CS DTV_FIELD DTV_DCLK2 SYNC_RY DTV_VC H_DVT_SM HSYNC_DTV V_DVT_SM VSYNC_DTV RB15AS/RB15NS 10-3...
  • Page 74 10 Schematic Diagrams 10-4 RB15AS/RB15NS...
  • Page 75 DTV_FIELD +3.3V_D DTV_HREF +5V_A +5V_A +5V_A DTVRED(7:0) +3.3V_S CVBS_CAP +3.3V_S +5V_A LLC1 LLC2 +3.3V_S +3.3V_D FFIE RESET_AV5 SDA3M SCL3M LVSYNC LHSYNC +3.3V_S SBCS# M_SDA NTSC M_SCL +5V_D +5V_CPLL DTV_PDEN +5V_A +5V_CPLL +5V_A +3.3V_S +3.3V_S HS_CAPTION_5 +5V_CPLL DTV_CLAMP +3.3V_S RB15AS/RB15NS 10-5...
  • Page 76 10 Schematic Diagrams 10-6 RB15AS/RB15NS...
  • Page 77 +2.5V +3.3V +5V_LIVE +5V_D +3.3V +5V_D +5V_D +3.3V_PW165 ADDRESS(19:1) +3.3V_PW165 +3.3V SCL_M_3.3 EXT_INT0_3.3 EXT_INT0_5 SDA_M_3.3 TXRX_ON WR0n WR1n SDA_e MAINPWB SCL_e SCL_M_5 SDA_M_5 +3.3V BOOTWE ROMWEn ROMOEn DATA(15:0) MCKEXT +3.3V +3.3V_D +3.3V +5V_LIVE DCKEXT DTV_CSYNCEN *DTV_CSYNCEN RESETn RESET RB15AS/RB15NS 10-7...
  • Page 78 10 Schematic Diagrams 10-8 RB15AS/RB15NS...
  • Page 79 10 Schematic Diagrams 10-5 Peripheral Part Schematic Diagram +5V_LIVE +3.3V +5V_LIVE +5V_D KEY(6:0) BUZZER +5V_LIVE +5V_LIVE LEDGRN BRIGHT LEDRED INVERTER_ON NTSC RF_CVBS QSS_IF +3.3V SCL5M CHK_VIDEO SDA5M CHK_TUNER CHK_TUNER_PW +5V_TUNER RB15AS/RB15NS 10-9...
  • Page 80 10 Schematic Diagrams 10-10 RB15AS/RB15NS...
  • Page 81 10 Schematic Diagrams 10-6 Audio Part Schematic Diagram +12V_AUDIO MSP_INT +12V_T +12V_AUDIO RB15AS/RB15NS 10-11...
  • Page 82 10 Schematic Diagrams 10-12 RB15AS/RB15NS...
