Summary of Contents for Outsunny 845-243

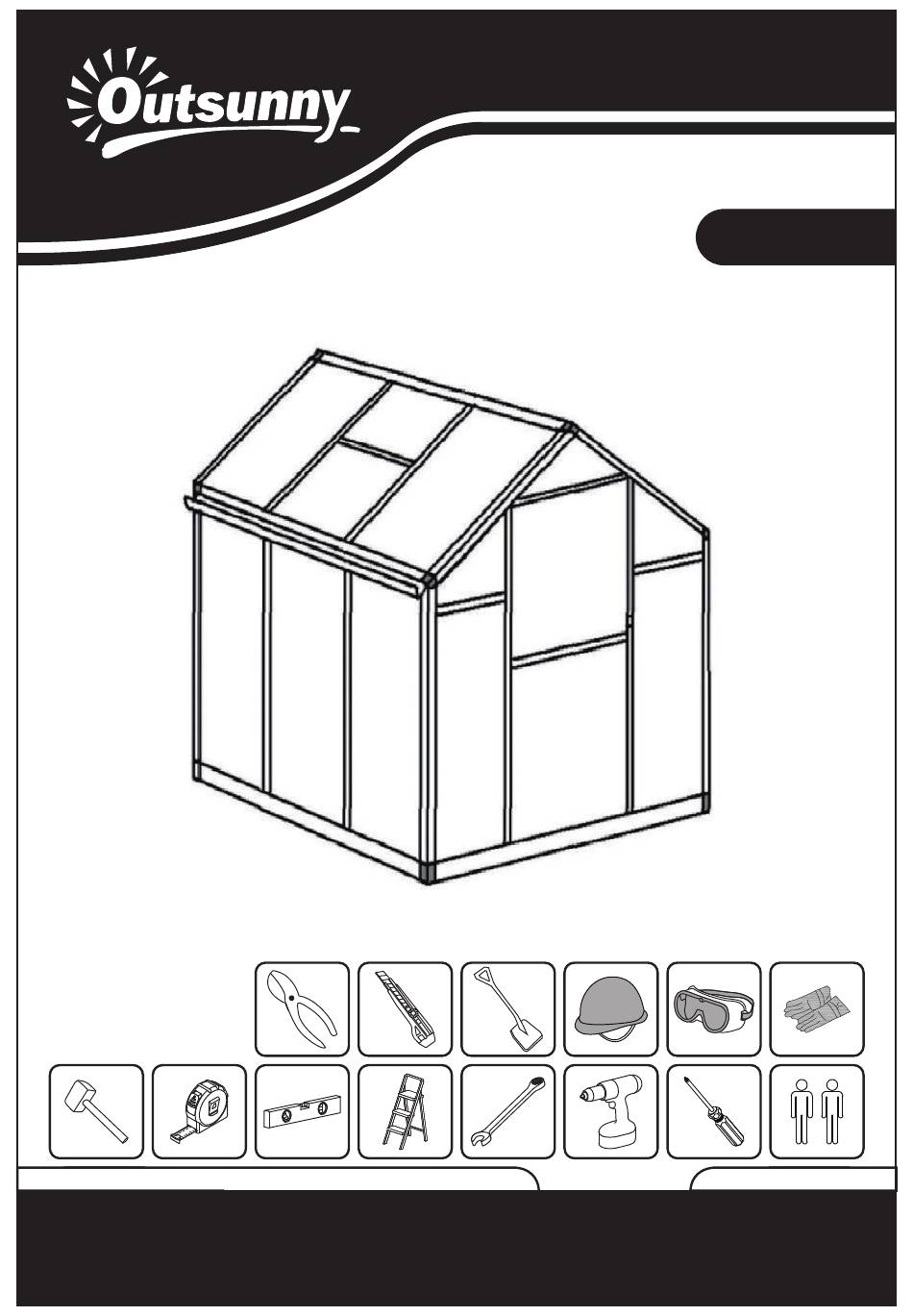

- Page 1 INbfc010V01 US 845-243 READ AND SAVE THIS INSTRUCTIONS FOR FUTURE USE Tools Recommended ASSEMBLY & INSTRUCTION MANUAL...
- Page 3 PACKING DETALS:TOTAL 2 BOXES BOX-1/2 BOX-1/2 BOX-1/2 BOX-2/2 PARTS PARTS PARTS PARTS 33-1 33-2...
- Page 4 PART...
- Page 5 PART...
- Page 6 PART...
- Page 7 put 2 parts 5 connect with the base part 3 by plastic connector 32 , In order to enhance the fastness of greenhouse，adjust the screws. put 12 and 13 connect with 3 by screw...
- Page 8 slide PC panel G into groove 5 and 12 13 connect 19 with 5 by screw 39...
- Page 9 Slide sunlight panels H into the grooves of 5 and 12,13, then tighten the screws Connect 8 with 9 by plastic connector 34, then connect 8,9 with 5 by connector 33- 1/33-2...
- Page 10 Slide PC panel I into grooves of 8,9 ,then connect 21 with 12 and 13,then tighten the screws The door: Connect 25 and 27 by plastic connector ; slide one PC panel K into the groove of 27and 28; slide 28 with its groove to connect with K; then slide the other K into the groove of 26, 28 and 29...
- Page 11 According to the above step, assemble other side of greenhouse stand greenhouse, connect 1,2 with front and back by connector 32...
- Page 12 connect 6,7 with both ends of 5 by plastic connector 33-1/33-2 Connect both ends of 23 with 8,9/10,11 by plastic connector 34; slide the window into the groove of 23...
- Page 13 Connect 23 with plastic connector 34 by screw 42 Connect 16,17,18 with 6 ,7, 23 by screws, but keep the screws loose for later PC panels assembly; then connect 18 with 24...
- Page 14 Slide PC panels A(the wall), B(the roof), and J(the roof) into the grooves of 17and 18, then tighten the screws...
- Page 15 Connect dewatering profile with 6,7 by screw;Connect 31 with 6,7 by screw 38 Push the plastic cover onto the top plastic connector...
- Page 16 Put 44 on inside 4 base corner, then connect screw 46 and 45 fixed in to the floor...
