- Page 1 4-INS-730 INSTALLATION, OPERATION AND CARE MANUAL REMEMBER TO COMPLETE THE ONLINE WARRANTY REGISTRATION www.scientific.co.za...
- Page 2 REGISTER ONLINE TODAY Register your warranty on-line at www.scientific.co.za today and learn how to get the best out of your Scientech product. NO WEB ACCESS? If you do not have access to the Web, register by completing this form and Email it to the Scientific head office in South Africa.
-
Page 3: Limited Warranty
In these cases,repairs will be made at a reasonable cost. Work performed by unauthorized personnel or unauthorized service agencies voids this Warranty. INSTALLATION OPERATION AND CARE OF LABORATORY HOTPLATES MODELS: 730, 731 and 732 4-INS-730 R01... -

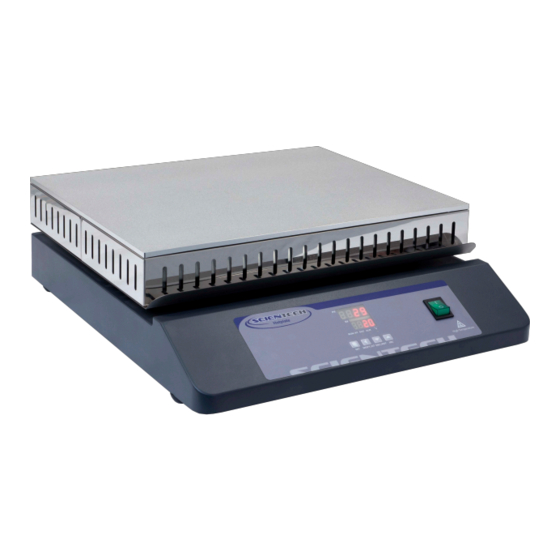

Page 4: Product Description
UNPACKING Unpack the product and check for any damage incurred during transit. This should be reported to the responsible carrier, railway or postal authority, and a request for a damage report should be made. THESE INSTRUCTIONS MUST BE FOLLOWED FOR US TO GUARANTEE OUR FULL SUPPORT OF YOUR CLAIM FOR PROTECTING AGAINST LOSS FROM CONCEALED DAMAGE. -
Page 5: Controller Diagram
CONTROLLER DIAGRAM Actual temperature value ˚C 1 0 0 Set temperature 1 0 0 value 5. The set temperature is displayed in the lower “SV” display window. The actual temperature is displayed in the upper “PV” window. 7. While the unit is heating up the small LED “out” is illuminated. Once the plate has reached the set temperature, this LED switches off. - Page 6 CLEANING ALUMINIUM HOT PLATE MODEL CODE 730 • Care should be taken when operating this appliance as hot surfaces are present which may cause burns. ITEM Description • Ensure that the power supply cord does not come into contact ALUMINIUM TOP PLATE CHASSIS PLATE with hot surfaces.
- Page 7 EXPLODED DIAGRAM LABORATORY HOT PLATES WARNING Electric Shock Hazard. Keep water and other liquids from entering the inside of the equipment. Liquid inside the equipment could cause an electrical shock Do not spray water or cleaning products. Liquid could contact the electrical components and cause a short circuit or an electrical shock.
- Page 8 POSITIONING DIAGRAM ELECTRICAL AND TECHNICAL INFORMATION LABORATORY HOT PLATE MODELS: 730/731/732 MODEL DESCRIPTION VOLTS POWER (V/Hz) (WATTS) HOTPLATE 300mm 230/50 1200 HOTPLATE 450mm 230/50 1800 HOTPLATE 600mm 230/50 3000 THE CONTROL COMPARTMENT OF THIS UNIT CONTAINS DANGEROUS VOLTAGES. MAINTENANCE AND SERVICING REQUIRING THE REMOVAL OF ANY PANELS OR COVERS SHOULD BE DONE BY QUALIFIED SERVICE PERSONNEL ONLY.
