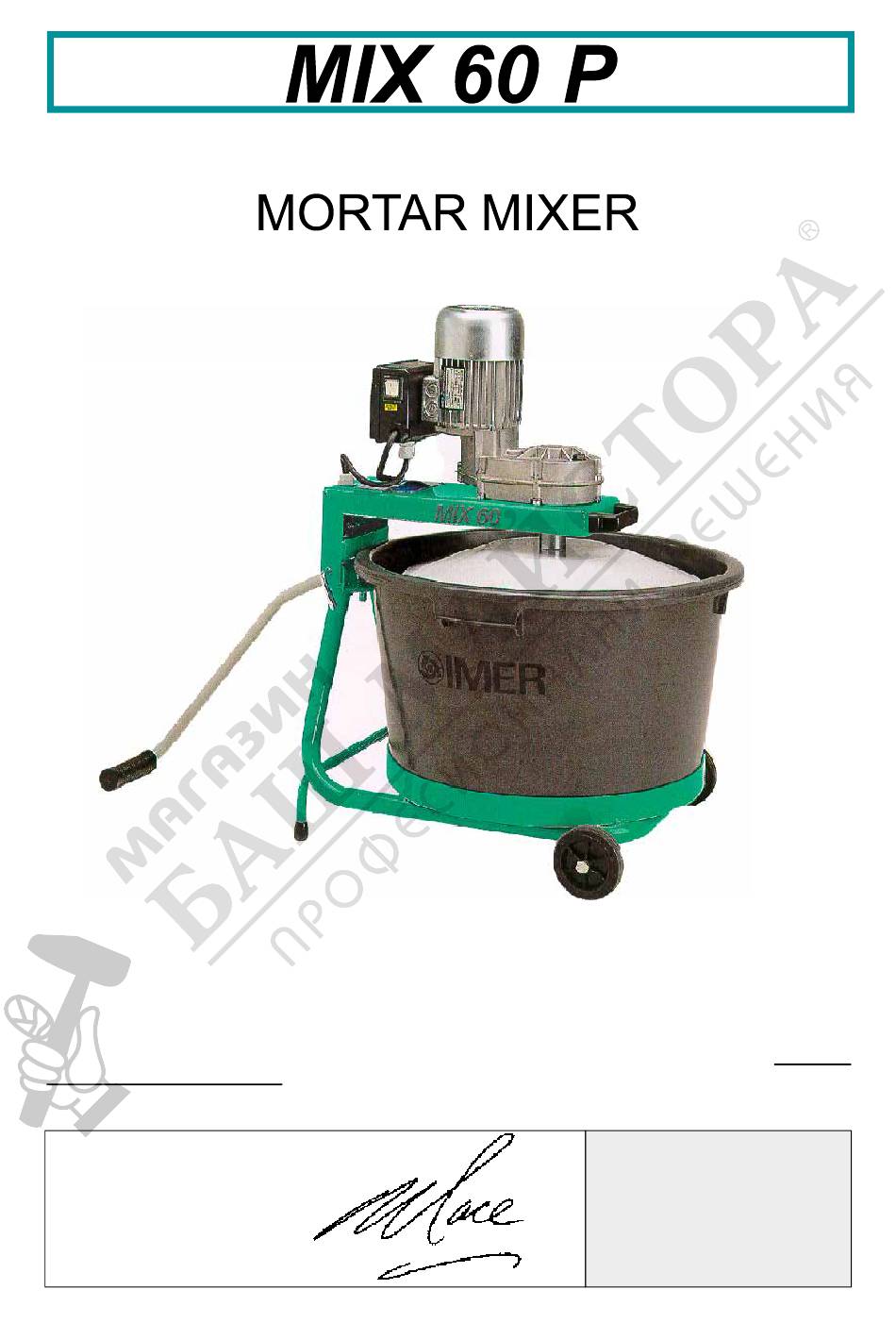

Page 1
1193981 (115V-60Hz) At IMER U.S.A we continually search for ways to better serve our customers.Should you have an idea or thought to share with us regarding this product we would apppreciate hearing from you. Our motto is Tools and Services for the 21st Century. We look forward to delivering the goods.
Page 2
4. OPERATION SAFETY and observe all safety standards currently in force for the prevention - The Imer MIX 60 cement mixer may only be used when fitted with of accidents at work (use of safety footwear and gloves in accordance all required safety devices which must be in perfect working condition.
Page 3
- Repairs to the electrical installation must be carried out exclusively by qualified personnel. Replacement parts must be original IMER spare parts and must not be modified in any way. The IMER MIX 60 is designed for minimum maintenance requirements. However, we recommend changing the reduction unit oil after 3000 hours continuous duty with SAE 40 oil.
Page 4
IMER U.S.A. Inc. MIX 60 WIRING DIAGRAMS SWITCH FINECORSA COPERCHIO (115V - 60Hz) SONDA TERMICA MOTORE CONDENSATORE CONNETTORE MOTORE CONDUTTORE LINEA DI PROTEZIONE CONDUTTORE LINEA NEUTRO CONDUTTORE LINEA FASE AM AVVOLGIMENTO MOTORE MARCIA AVVOLGIMENTO MOTORE AVVIAMENTO RELÉ Fig.3 Fig.2 EARTH SCREW EARTH CABLE Fig.5...
