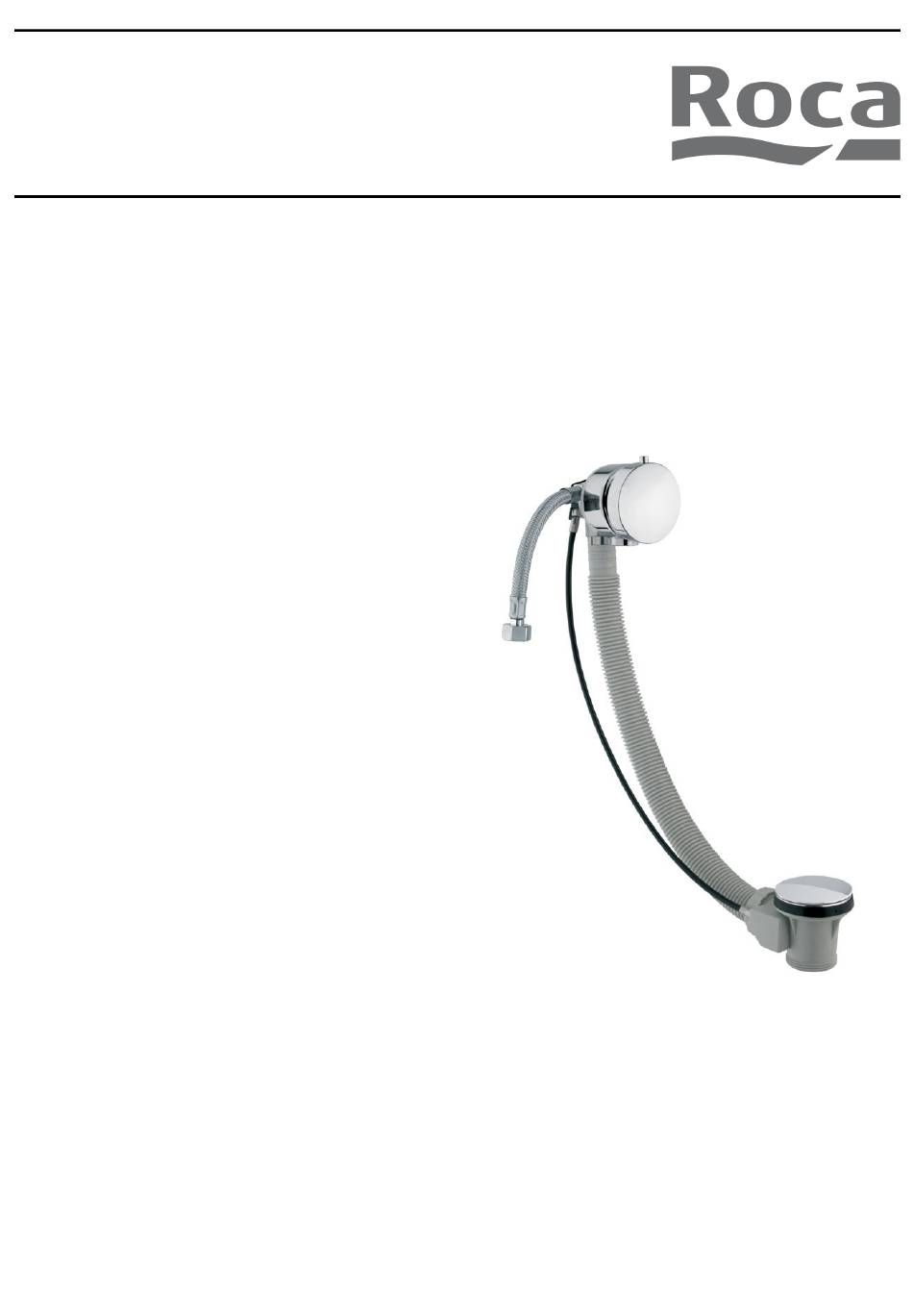

- Page 1 Maxiflow Overflow Bath Filler And Waste D50010008 Installation And Operating Instructions Technical Specification Working Pressure: Min: 0.5 Bar 5.0 Bar Max: Operating Temperature: 70⁰C Hot: 5⁰C Cold: Inlet Connections: 1½" Features • Operated by over flow allowing hands free drainage...
- Page 2 I I M M P P O O R R T T A A N N T T : : Please read all of the instructions before installation. Roca recommends this product is installed by a competent person in compliance with all relevant regional regulations.
- Page 3 L L i i n n e e D D r r a a w w i i n n g g G 1” 1/2...
- Page 4 I I n n s s t t a a l l l l a a t t i i o o n n o o f f o o v v e e r r f f l l o o w w 1, Connect flexible tube to outlet.
- Page 5 6, Fasten the .. to the rear of the handle, 7, Place handle and fixing through the tight and secure into place with allen key. hole in overflow waste body. 8, Click into place...
- Page 6 9, Fit the waste body and flange to the bath securing using screw and washer; ensure sealing washer is placed through the bath before this is done as shown on diagram. Use a pure Silicon sealant where necessary. <6mm 9, Cut any excess tube and fit into waste body using washer and nut provided.
- Page 7 >1,5° 1,5°...
- Page 8 *Please see www.uk.roca.com for full terms and conditions of warranty C C l l e e a a n n i i n n g g Your product has a high-quality finish and should be treated with care to preserve the visible surfaces.
