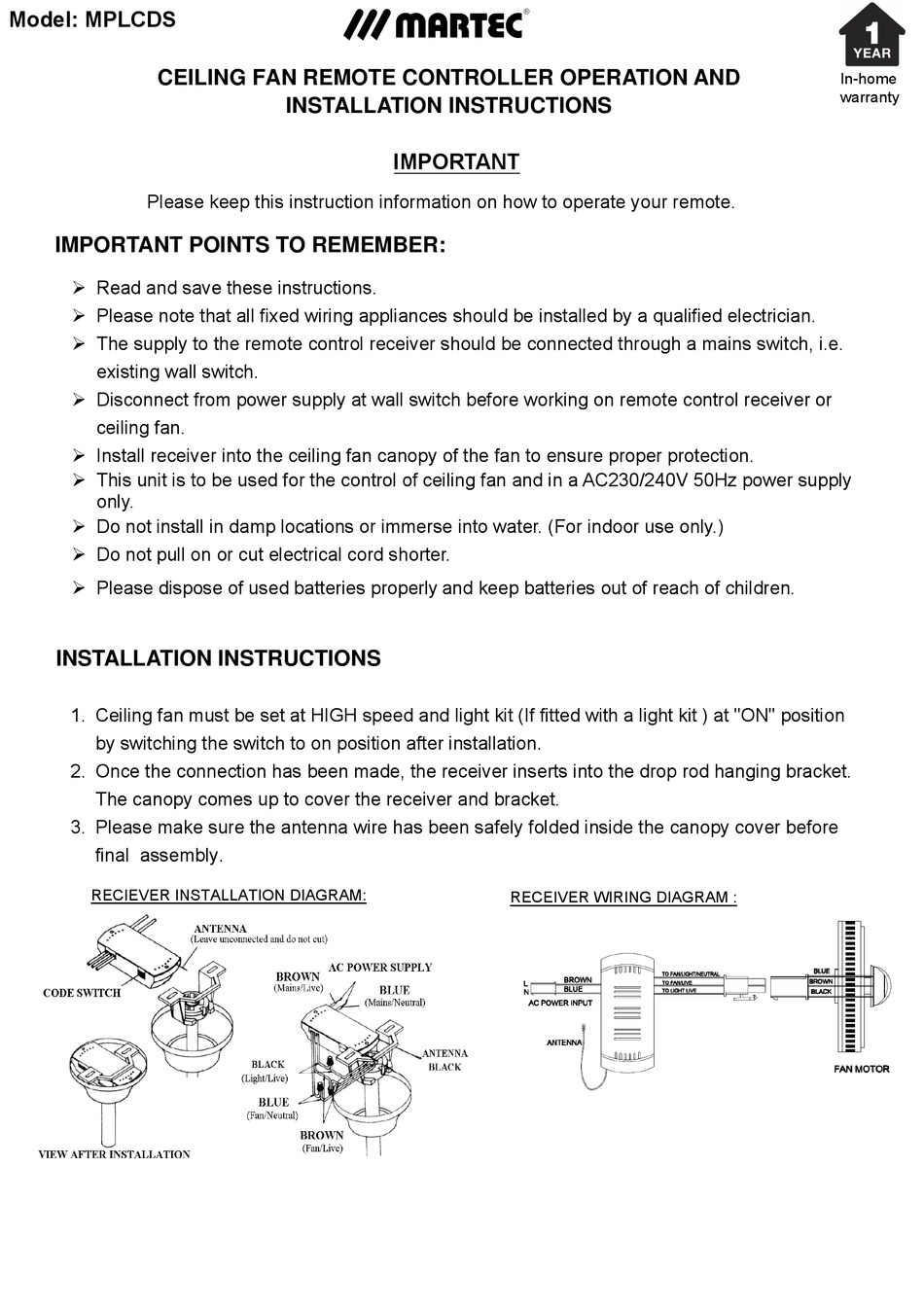

Martec MPLCDS Operation And Installation Instructions

Model: MPLCDS
CEILING FAN REMOTE CONTROLLER OPERATION AND
Please keep this instruction information on how to operate your remote.

IMPORTANT POINTS TO REMEMBER:

 Read and save these instructions.
 Please note that all fixed wiring appliances should be installed by a qualified electrician.
 The supply to the remote control receiver should be connected through a mains switch, i.e.
existing wall switch.
 Disconnect from power supply at wall switch before working on remote control receiver or
ceiling fan.
 Install receiver into the ceiling fan canopy of the fan to ensure proper protection.
 This unit is to be used for the control of ceiling fan and in a AC230/240V 50Hz power supply
only.
 Do not install in damp locations or immerse into water. (For indoor use only.)
 Do not pull on or cut electrical cord shorter.
 Please dispose of used batteries properly and keep batteries out of reach of children.

INSTALLATION INSTRUCTIONS

1. Ceiling fan must be set at HIGH speed and light kit (If fitted with a light kit ) at "ON" position
by switching the switch to on position after installation.
2. Once the connection has been made, the receiver inserts into the drop rod hanging bracket.
The canopy comes up to cover the receiver and bracket.
3. Please make sure the antenna wire has been safely folded inside the canopy cover before
final assembly.
RECIEVER INSTALLATION DIAGRAM:
INSTALLATION INSTRUCTIONS
IMPORTANT
RECEIVER WIRING DIAGRAM :
In-home
warranty
