GE Profile CustomStyle PSW23PSTSS Dimensions And Installation Information page 2

PSW23PST
GE Profile CustomStyle
with Integrated Dispenser

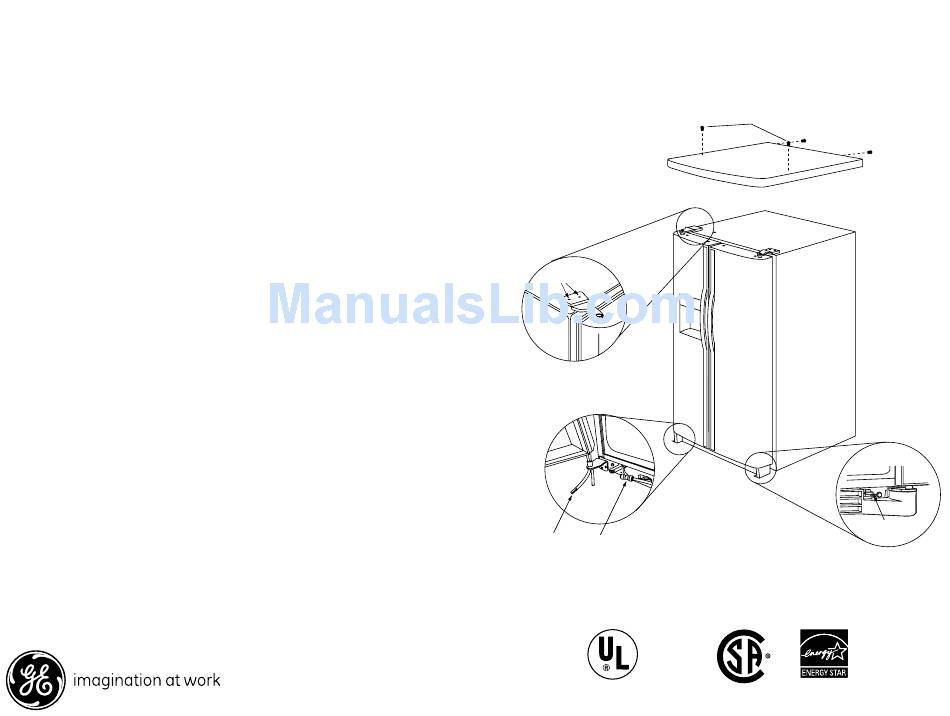

To Remove Top Caps and Doors on PSW23PST
Step 1: the refrigerator. Remove two screws, one on each side at the rear of the top
cap. Lift off and remove top cap.
Step 2: Open both doors. Remove one screw on each side of the toekick. Pull forward
to remove toekick.
Step 3: On the freezer door, disconnect water line coupler by pushing against the collar
on the left side. Disconnect wire harness.
Step 4: Use a Torx T-20 screwdriver to remove 2 screws holding the top hinge. Carefully
remove hinge while supporting door. Lift door up and off bottom hinge. Remove fresh
food door in the same manner. Note: Do not remove bottom hinges! Door alignment
will be difficult if bottom hinges are removed.
Step 5: Place refrigerator onto a hand truck, upright and against one side.
Move refrigerator to the installation location.
Step 6: Carefully lower doors onto bottom hinges. Be sure to route the tubing and
electrical connector through the bottom hinge. Reinstall top hinges.
Step 7: Place cap over the top of the refrigerator. Reinstall the original screws in the top
and back of the cap.
Step 8: Reconnect the wiring harness and waterline.
