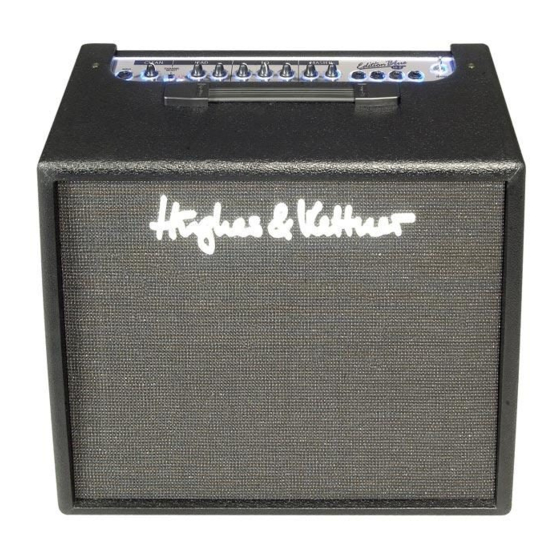

Hughes & Kettner Edition Blue 60-R Series Service Documents

Hughes & Kettner Edition Blue 60-R Series Service Documents

Hide thumbs Also See for Edition Blue 60-R Series:

Advertisement

Quick Links

Service Documents
Confidential, for authorized service technicians only!
Do not disclose this information to or share these documents
Vertraulich! Nur für autorisierte Servicetechniker!
Nicht zur Weitergabe an Dritte freigegeben!
Edition Blue
Note!
The components used in this product - particularly parts
affecting safety as well as speakers and transformers -
were developed and manufactured to certain specifications.
Please use original spare parts only to ensure the product
remains fully functional and safe.
TECHNICAL SERVICE:
Stamer Musikanlagen GmbH • Magdeburger Str. 8 • 66606 St.Wendel • Germany
Music & Sales P.E. GmbH • Leipziger Str. 3 • 66606 St.Wendel • Germany
with third parties.
Series
60R
Achtung!
Die in diesem Produkt verwendeten Komponenten, insbeson-
dere sicherheitsrelevante Teile, Lautsprecher und Transforma-
toren wurden nach spezifischen Vorgaben entwickelt und ge-
fertigt. Bitte benutzen Sie ausschließlich Original-Ersatzteile –
nur so ist die volle Funktionalität und Sicherheit gewährleistet.
2006/07/19

Advertisement

loading
Need help?

Need help?

Do you have a question about the Edition Blue 60-R Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Hughes & Kettner Edition Blue 60-R Series

  • Page 1 2006/07/19 Service Documents Confidential, for authorized service technicians only! Do not disclose this information to or share these documents with third parties. Vertraulich! Nur für autorisierte Servicetechniker! Nicht zur Weitergabe an Dritte freigegeben! Edition Blue Series Note! Achtung! The components used in this product - particularly parts Die in diesem Produkt verwendeten Komponenten, insbeson- affecting safety as well as speakers and transformers - dere sicherheitsrelevante Teile, Lautsprecher und Transforma-...
  • Page 2 Directory features page: drawing-numbers-example page: standard for single wire confection page: HU0403-EDITION BLUE 60R page: exploded drawings: complete Rev.: A page: 10-11 chassis Rev.: A page: electronics Rev.: A page: 13-14 cabling Rev.: A page: 15-16 spare parts list Rev.: A page: 17-18 circuit diagrams...
  • Page 3 EDITION BLUE 60-R-MANUAL - Check that the local current and the amp's AC power rating are identical before you plug the power cord into an AC outlet. - Ensure that air can circulate freely around your amp's ventilation ducts. - Place the amp on a stable platform where it is not exposed to mechanical shocks and temperature extremes which may damage the amp or endanger CONGRATULATIONS AND THANK YOU...
  • Page 4: Jacks And Control Features

    EDITION BLUE 60-R-MANUAL 2.0 JACKS AND CONTROL FEATURES 2.1. FRONT PANEL: INPUT: Input sensitivity is broad enough to handle guitars FOOTSWITCH: This jack is for a standard footswitch (e.g. equipped with humbuckers, active pickups, or single Hughes & Kettner FS-1) and it allows you to switch back coils.
  • Page 5: Service And Preventive Maintenance

    EDITION BLUE 60-R-MANUAL 4.0 OPERATING THE EDITION BLUE 60-R • If you are using several processors or stomp boxes, ensure you connect them in the proper order. 4.1 SELECTING CHANNELS Use the CHANNEL SELECT switch or an external foot- 4.4 THE EDITION BLUE 60-R AND MIXING switch to change channels.
  • Page 6: Troubleshooting

    EDITION BLUE 60-R-MANUAL 6.0 TROUBLESHOOTING 7.0 TECHNICAL DATA 1) The EDITION BLUE 60-R will not switch on: PREAMP SECTION • The amp is not getting any AC power. Check the CLEAN + LEAD solid state channels mains cable to see if it is connected properly. •...
  • Page 7 DRAWING-NUMBERS EXAMPLE HK0106-EX-R01-1A REVISION VERSION SERIAL NUMBER DEPARTMENT: R = R&D CHARACTER: BL = SHEET METAL / BLECH EX = EXPLODED DRAWING / EXPLOSIONSZEICHNUNG HZ = CABINET / HOLZGEHÄUSE KU = PLASTIC / KUNSTSTOFF LP = PCB / LEITERPLATTEN SO = MISCELLANEOUS / SONSTIGES SP = SCHEMATIC / SCHALTPLÄNE TR = TRANSFORMER / TRANSFORMATOR GK = WIRING DIAGRAM / GERÄTEVERKABELUNG...
  • Page 8 Stand 17. Jun 04 Standard for single wire confection. 485 W 1015 style 1015 according UL specifications I = completely insulated with black shrinktube or appropriate sleeve IT = partly insulated; only crimp connection insulated. no marking = without insulation Z = with additional junction no marking = without additional junction W = angled faston...
  • Page 9 Service Documents HU0403 Edition Blue Confidential, for authorized service technicians only! Do not disclose this information to or share these documents with third parties. TECHNICAL SERVICE: Stamer Musikanlagen GmbH • Magdeburger Str. 8 • 66606 St.Wendel • Germany Music & Sales P.E. GmbH • Leipziger Str. 3 • 66606 St.Wendel • Germany...
  • Page 10 Pos. Artikel-Nr 1 Artikel-Nr 2 Artikel-Nr 3 Description Bezeichnung Menge C90024 complete ED BLUE 60R wooden cabinet komplettes Holzgehäuse Edition Blue 60R C90033 ED BLUE 60R sheet metal chassis Chassis Edition Blue C90025 ED BLUE H&K strap handle Edition Blue H&K Griff C90025 ED BLUE H&K strap handle Edition Blue H&K Griff...
  • Page 11 TITEL: HU0403 Ex-Zeichnung Edition Blue 60R Pos. Artikel-Nr 1 Artikel-Nr 2 Artikel-Nr 3 Description Bezeichnung Menge 66606 St. Wendel / Germany C90026 corner Ecke ZEICHNUNGS-NR.: VERSION: REVISION: HU0403-EX-R01-1A C90030 Edition Blue 60R Clothing Editon Blue 60R Bespannstoff BLATT: ERSTELLT VON: Martin Drumm 09.06.2006 C90012...
  • Page 12 Pos. Artikel-Nr 1 Artikel-Nr 2 Artikel-Nr 3 Description Bezeichnung Menge 1 C90146 jack nut Gegenmutter Klinkenbuchse 2 C90107 ED BLUE poti-knob Potiknopf 3 C90147 volume nut Poti Mutter M7 4 C90148 volume washer Kunststoffring Poti 5 C90034 ED BLUE 60R plexiglas Plexiglas 6 C90149 nut M12 mainswitch ring...
  • Page 13 TITEL: Pos. Artikel-Nr 1 Artikel-Nr 2 Artikel-Nr 3 Description Bezeichnung Menge HU0403 Ex-Zeichnung 1 C90014 LED 5mm, color red LED 5mm, Farbe rot 2 C90015 mono jack Mono Klinkenbuchse Edition Blue 60R 66606 St. Wendel / Germany 3 C90016 stereo jack Stereo Klinkenbuchse ZEICHNUNGS-NR.: VERSION:...
  • Page 14 10 10 9 10 Pos. Artikel-Nr 1 Artikel-Nr 2 Artikel-Nr 3 Description Bezeichnung Menge 1 938009 NPN transistor BC 546B (TR1, TR2) NPN Transistor BC 546B 2 938022 PNP transistor BD 238 (TR3) PNP Transistor BD 238 3 C90108 NPN transistor BD 679A or DB 681 (molding type) (TR4) NPN Transistor BD 679A oder DB 681(formgepresst) 4 938034 NPN transistor BDX 53C (or Tip132) (TR5) NPN Transistor BDX 53C oder Tip132...
  • Page 15 Pos. Artikel-Nr 1 Artikel-Nr 2 Artikel-Nr 3 Description Bezeichnung Menge TITEL: 1 C90138 CON5: FLAT WIRE UL1007 AWG26 L=200m/m: W5 Litze sw HU0403 Ex-Zeichnung 2 C90139 CON4: FLAT WIRE UL1007 AWG26 L=200m/m: W4 Litze rot Edition Blue 60R 3 C90140 CON+1: FLAT WIRE UL 1007 AWG26 230m/m : C ON6 Litze sw/weiß...
  • Page 16 TITEL: HU0403 Ex-Zeichnung Edition Blue 60R 66606 St. Wendel / Germany ZEICHNUNGS-NR.: VERSION: REVISION: HU0403-EX-R01-1A BLATT: ERSTELLT VON: Martin Drumm 09.06.2006 ZEICHNER INDEX ÄNDERUNG GEPRÜFT/ BLÄTTER FREIGEGEBEN VON: WERKSTOFF: OBERFLÄCHE: DATEINAME: HU0403-EX-R01-1A-GESAMT...
  • Page 17 HU0403-EX-R01-1A-COMPLETE (PAGE 1, 2) part-no. 1 (230V) part-no. 2 (117V) part-no. 3 (100V) Description Bezeichnung Quantity C90024 complete ED BLUE 60R wooden cabinet komplettes Holzgehäuse Edition Blue 60R C90025 ED BLUE H&K strap handle Edition Blue H&K Griff C90026 corner Ecke C90027 ED BLUE ruber foot 30/25/16mm...
  • Page 18 C90110 IC1, IC2, IC4 dual of amp IC NJM072D Amp IC NJM072D C90111 dual of amp IC NJM4558DD Amp IC NJM4558DD (IC5) C90112 D1, D2, D5 silicon switching diode 1N4148, T Silliziumdiode 1N4148, T (D1, D2, D5) C90113 D17, D18, D19, D20 silicon rectifier diode 1N4002, T Silliziumgleichrichterdiode 1N4002, T C90114...
  • Page 19 TITLE: HU0403-Schaltplan Edition Blue 60R 66606 St. Wendel / Germany DRAWING-NO.: VERSION: REVISION: DATE: PAGE: DRAWN BY: Martin Drumm 20.07.2006 INDEX CHANGES RESP. CHECKED BY: DATE: PAGES MATERIAL: FINISH: FILENAME: Schematic_ED60R...
