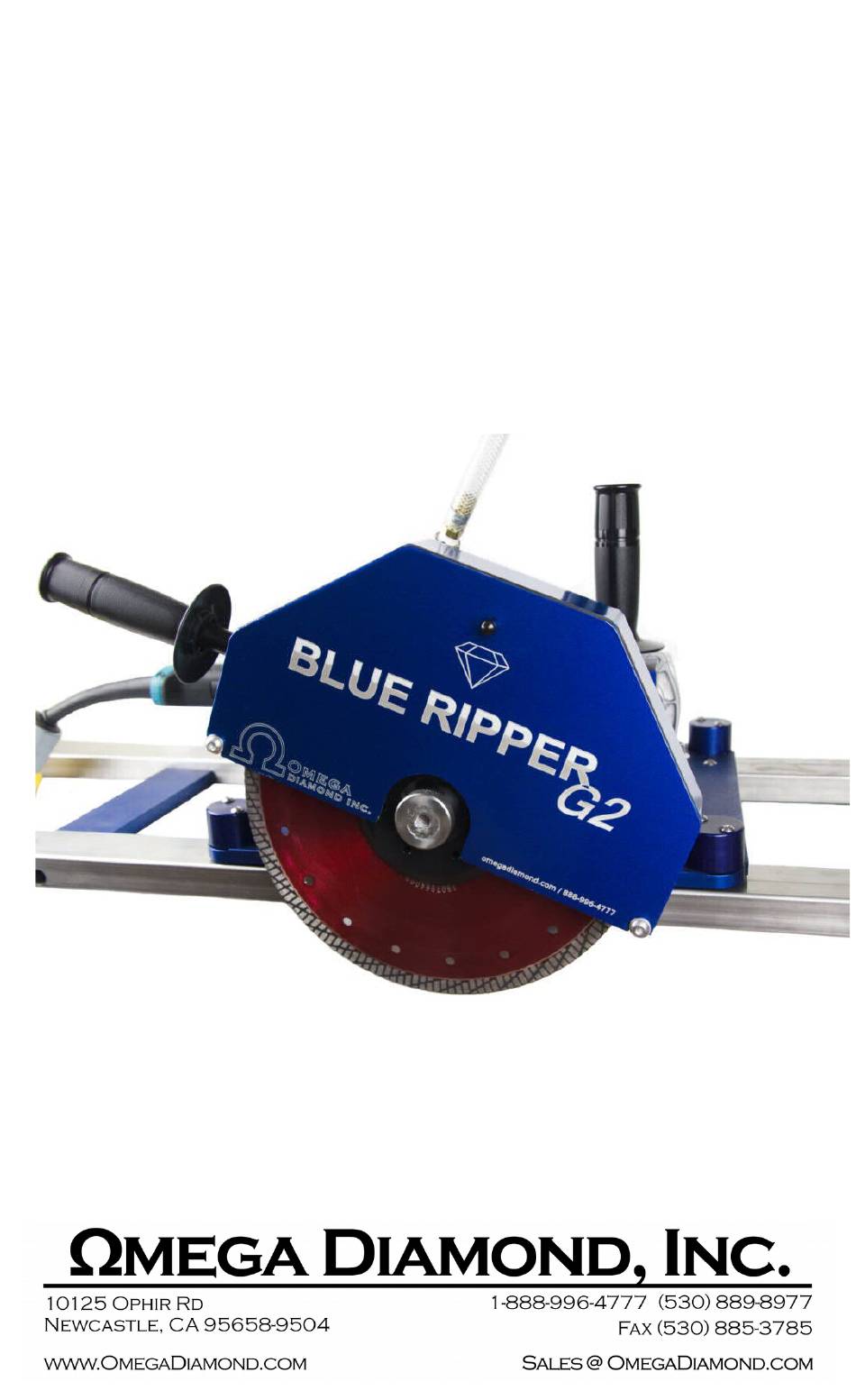

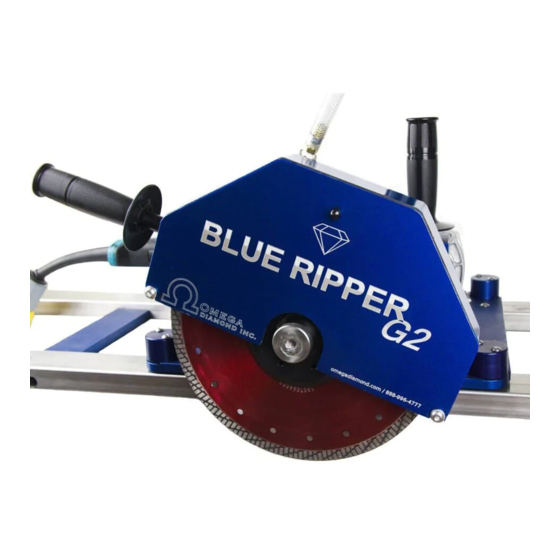

- Page 1 The Blue Ripper G2™ The Blue Ripper G2™ Rail Saw (Blade shown might not ship with saw or be available.) Operation, Safety, and Instruction Manual v20181210 ™...
-
Page 2: Operating/Safety Instructions
Page 2 Operating/Safety Instructions IMPORTANT: Read Before Operating Equipment To avoid accidents or injury, keep work area clean, well lit, and well ventilated. Always wear eye, hand, ear, foot and all other appropriate protective apparel when operating saw. Keep all other people, children, and small farm animals away while operating saw. - Page 3 Note: This saw is designed for stone and masonry applications exclusively. For optimal performance use only Diamond blades from Omega Diamond that are designed for the material you are cutting. Place the saw on the rail (with rail rubber side down) providing clearance for installing the blade.
-
Page 4: Typical Operation
Page 4 Typical Operation: Note: For fastest cutting speeds, it is recommended that you lay your slab on top of a foam sheet at least 1” (3cm) thick. (1.5” (4cm) is preferred for less crumbling). But you can use standard stone cutting tables. - Page 5 Page 5 6) Begin your cut by slowly pushing the saw into the stone. Note the G2 will cut in both directions but cutting from left to right will reduce lifting forces. When seam cutting, cut from right to left (climb cutting).
-
Page 6: Troubleshooting
Page 6 Troubleshooting Blade seems to be cutting slowly or not cutting at all? Suggestions: Make sure the blade is mounted to spin in the proper direction (See Spin Direction, on guard and on blade). The material being cut may have “loaded” or “glazed” the diamond. Use a dressing stone or “green stone”... -
Page 7: Replacement Parts
Page 7 Replacement Parts Is your blade worn out? Want a spare? Need extra rail? Visit www. OmegaDiamond.com or give us a call and we will be happy to help you with your order. Toll Free: 1 (888) 996-4777 Fax: 1 (530) 885-3785 Web: OmegaDiamond.com... - Page 8 Page 8...
-
Page 9: Bill Of Materials
Page 9 Bill of Materials Illustration Part Number Number DESCRIPTION Front Guard Assembly Guard Rim Assembly 928-295 Makita GA7021 fixed speed angle grinder Velcro Anchor with Velcro Included Foam Pad 508-356 Traverse Bearing Assembly Belt Guard Assembly 324-478 Belt Motor Pulley with washer Spindle Pulley 214-882 Alignment Bearing Assembly Spindle Assembly with Rear Blade Flange... -
Page 10: Limited Warranty
Page 10 Limited Warranty For warranty information please visit our web site at omegadiamond.com/warranty Please record the Date of Purchase and the Serial Number of your machine here for future reference: Date of Purchase: Serial Number:... -
Page 11: User Notes
Page 11 USER NOTES: NOTICE: This product may have been field tested for quality control purposes, so it may have dust or sighs of light use. - Page 12 Diamond Logo are legal trademarks of Omega Diamond, Inc. All Rights Reserved. This Document may not be Copied or Distributed, in Part or in Whole, Manually or Digitally, without the written prior Consent of the Copyright Holder , Omega Diamond Inc.
