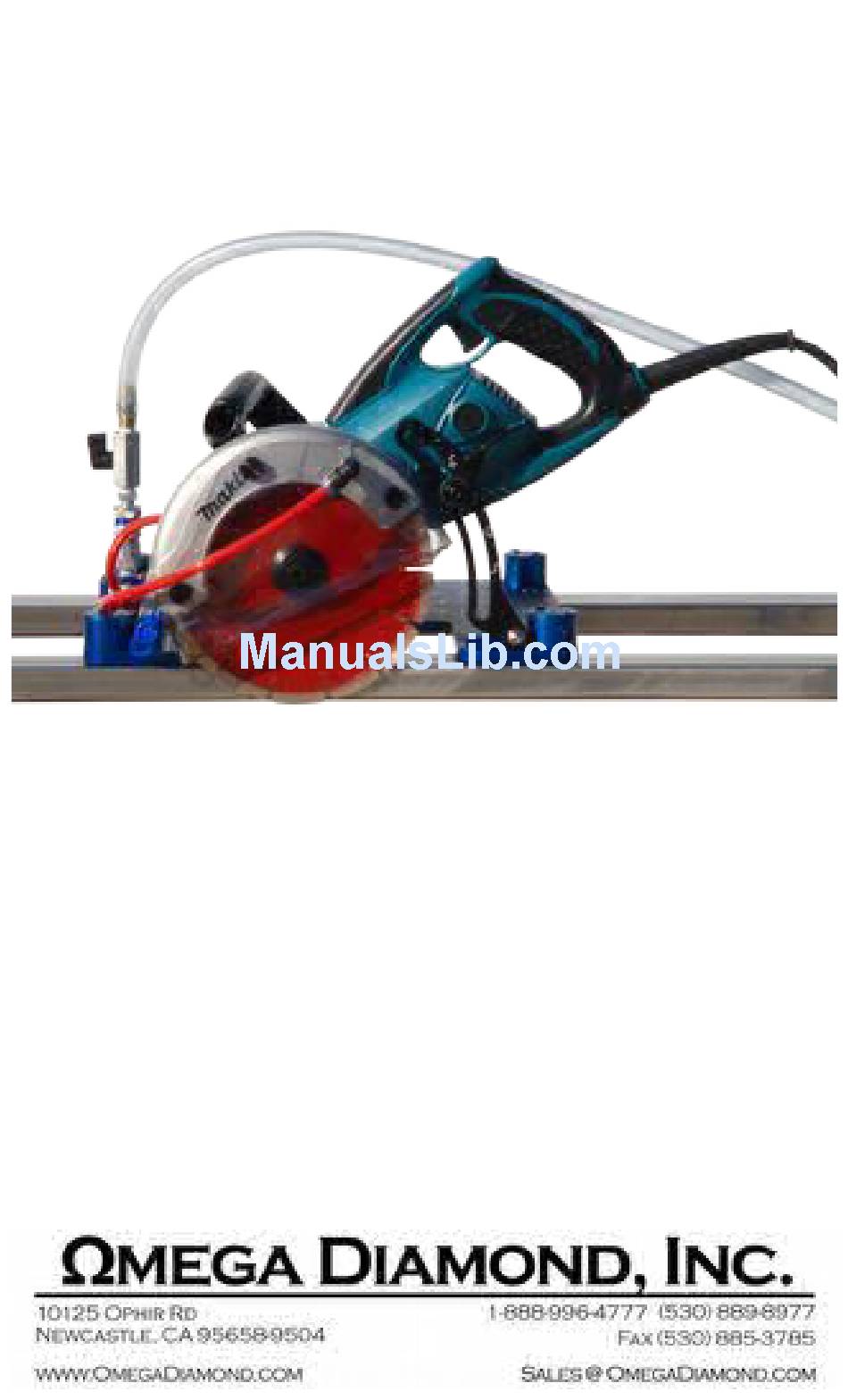

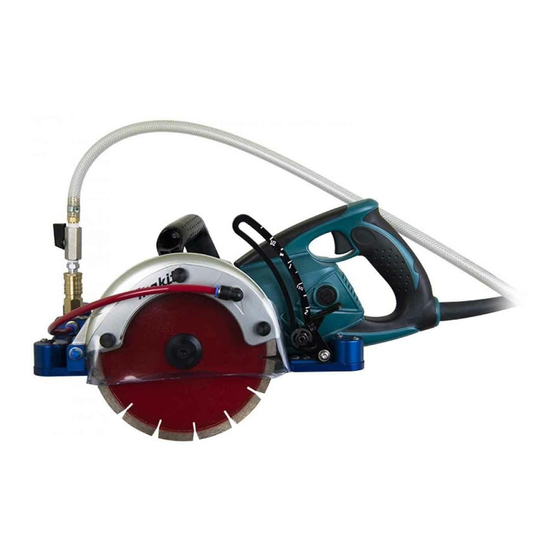

- Page 1 The Blue Ripper Jr™ The Blue Ripper Jr™ Rail Saw (Blade shown might not ship with saw or be available.) Operation, Safety, and Instruction Manual v20160405 ™...
-
Page 2: Operating/Safety Instructions
Page 2 Operating/Safety Instructions IMPORTANT: Read Before Operating Equipment To avoid accidents or injury, keep work area clean, well lit, and well ventilated. Always wear eye, hand, and all other appropriate protective apparel when operating saw. Keep all other people, children, and small farm animals away while operating saw. -
Page 3: Operating Instructions
Page 3 Operating Instructions Installing/Replacing Blade: Note: This saw is designed for stone and masonry applications exclusively. For optimal performance use only blades from Omega Diamond. Place the saw on the rail (with rail rubber side down) providing clearance for installing the blade. Loosen Vertical Adjustment lock and raise motor to full height. -
Page 4: Typical Operation
Page 4 Typical Operation: Note: For most cutting operations, it is recommended that you lay your slab on top of a foam sheet at least 1” (3cm) thick. (1.5” (4cm) is preferred for less crumbling). 1) Lay the rail on the slab along the line to be cut. 2) Allow the rails to overhang enough for the blade to clear the stone where you will begin your cut. -
Page 5: Troubleshooting
Page 5 Troubleshooting Blade seems to be cutting slowly or not cutting at all? Suggestions: Make sure the blade is mounted to spin in the proper direction (See Spin Direction, pg 6). The material being cut may have “loaded” or “glazed” the diamond. Use a dressing stone or “green stone”... -
Page 6: Spin Direction
Page 6 Spin Direction Some of the supported motors have an arrow on the guard indicating the spin direction of the blade. If the spin direction of the blade is not indicated, then it may be safe to assume that it spins in a clockwise direction. -
Page 7: Replacement Parts
Page 7 Replacement Parts Is your blade worn out? Want a spare? Need extra rail? Give us a call and we will be happy to take your order. Toll Free: 1 (888) 996-4777 Fax: 1 (530) 885-3785 Web: OmegaDiamond.com Email: sales@omegadiamond.com... - Page 8 Page 8...
-
Page 9: Bill Of Materials
Page 9 Bill of Materials Illustration Part Number Number DESCRIPTION 538-212 Makita 5477NB Hypoid-drive Saw 216-186 Makita 5477NB Motor Without Guard 401-619 Clear Vinyl Splash Shield 099-094 Guard Knob Assembly 973-360 Blue Ripper Jr Water Manifold Assembly 638-825 Traverse Bearing Cap with Flat Assembly 538-017 Traverse Bearing Cap Assembly 508-356 Traverse Bearing Assembly 214-882 Alignment Bearing Assembly... -
Page 10: Limited Warranty
Page 10 Limited Warranty For warranty information please visit our web site at omegadiamond.com/warranty Please record the Date of Purchase and the Serial Number of your machine here for future reference: Date of Purchase: Serial Number:... -
Page 11: User Notes
Page 11 USER NOTES: NOTICE: This product may have been field tested for quality control purposes. - Page 12 ***WARNING*** Not following all of these instructions and warnings included in this manual may result in Injury or Death. Omega Diamond, Inc. and all related Companies and personnel cannot be held responsible for any damages incurred by the installation, use, and/or maintenance of this product.
