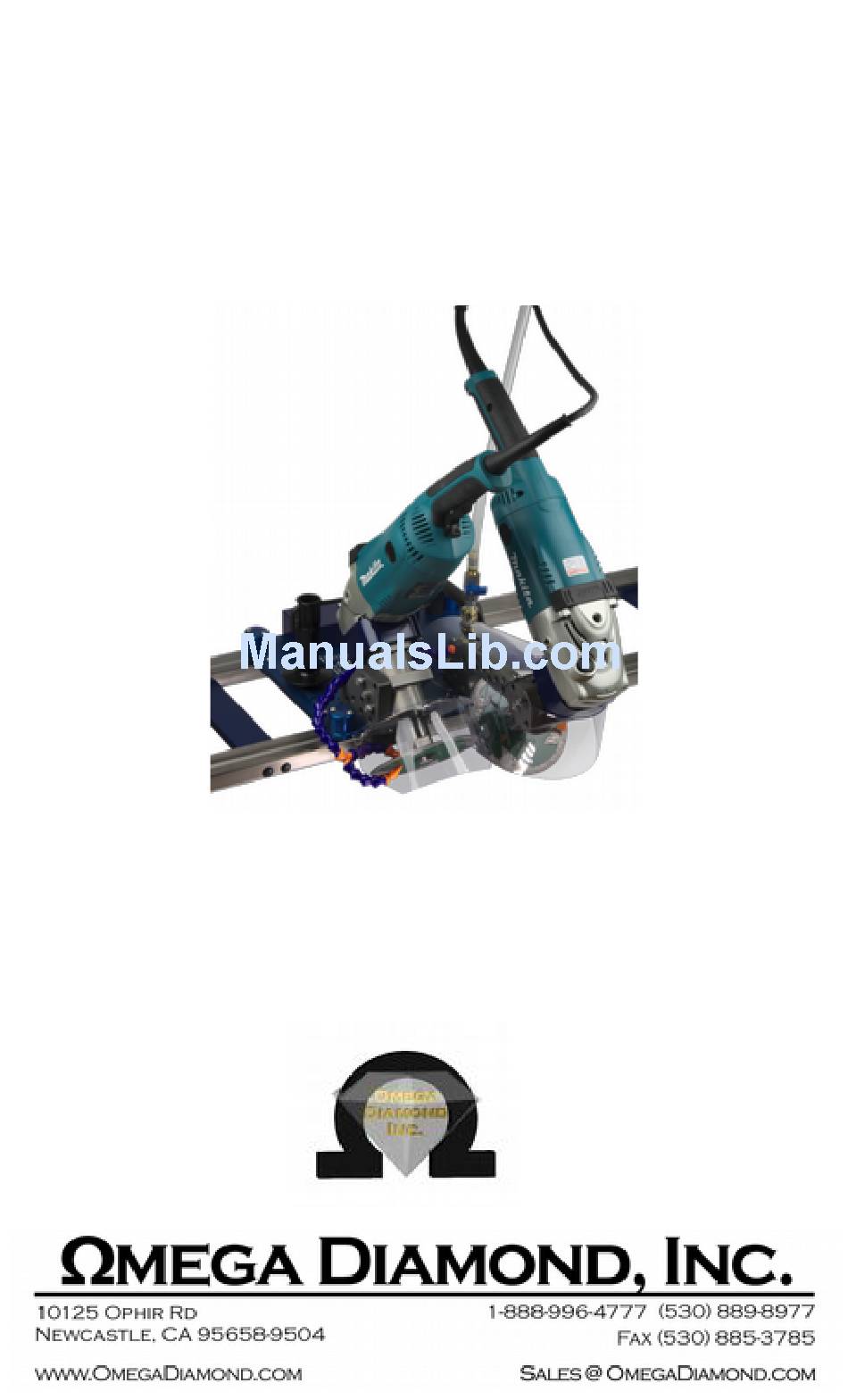

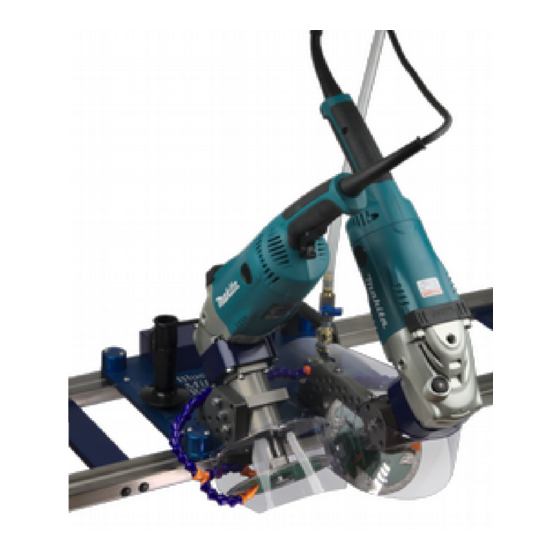

- Page 1 The Blue Ripper The Blue Ripper Miter Master™ Miter Master™ Rail Saw (Blade shown might not ship with saw or be available.) Operation, Safety, and Instruction Manual v20180115 ™...
-
Page 2: Operating/Safety Instructions
Page 2 Operating/Safety Instructions IMPORTANT: Read Before Operating Equipment To avoid accidents or injury, keep work area clean, well lit, and well ventilated. Always wear eye, hand, and all other appropriate protective apparel when operating saw. Keep all other people, children, and small farm animals away while operating saw. -
Page 3: Assembly And Alignment
Page 3 Assembly and Alignment Included with the saw, and available on our website in the Blue Ripper Miter Master™ Rail Saw’s page under Attachments, is a sheet showing how to assemble and align the saw. Our website also has tutorials howing how to align the saw. Please read and watch those tutorials. -
Page 4: Operating Instructions
Page 4 Operating Instructions Note: This saw is designed for stone and masonry applications exclusively. For optimal performance use only blades from Omega Diamond. We recommend that you use 5 or 6 inch blades with these machines. Typical Operation: Note: For most cutting operations, it is recommended that you lay your slab on top of a foam sheet at least 1”... - Page 5 4 fpm (1 meter per minute) or faster. Cut by pulling or pushing to the RIGHT For video examples of how to use the Blue Ripper Miter Master™ Rail Saw, go to our website omegadiamond.com and click on the videos link.
-
Page 6: Troubleshooting
Page 6 Troubleshooting Blade seems to be cutting slowly or not cutting at all? Suggestions: Make sure the blade is mounted to spin in the proper direction (See Spin Direction, pg 6). The material being cut may have “loaded” or “glazed” the diamond. Use a dressing stone or “green stone”... -
Page 7: Spin Direction
Page 7 Spin Direction Some of the supported motors have an arrow on the guard indicating the spin direction of the blade. If the spin direction of the blade is not indicated, then it may be safe to assume that it spins in a clockwise direction as viewed from the top of the motor. -
Page 8: Replacement Parts
Page 8 Replacement Parts Is your blade worn out? Want a spare? Need extra rail? Give us a call and we will be happy to take your order. Toll Free: 1 (888) 996-4777 Fax: 1 (530) 885-3785 Web: OmegaDiamond.com Email: sales@omegadiamond.com See omegadiamond.com/090-969 under Attached Files or More Information for the up to date Replacement Parts List. -
Page 9: Limited Warranty
Page 9 Limited Warranty For warranty information please visit our web site at omegadiamond.com/warranty Please record the Date of Purchase and the Serial Number of your machine here for future reference: Date of Purchase: Serial Number:... -
Page 10: User Notes
Page 10 USER NOTES: NOTICE: This product may have been field tested for quality control purposes. -
Page 11: Blue Ripper Miter Master™ Rail Saw Manual
***WARNING*** Not following all of these instructions and warnings included in this manual may result in Injury or Death. Omega Diamond, Inc. and all related Companies and personnel cannot be held responsible for any damages incurred by the installation, use, and/or maintenance of this... - Page 12 The Blue Ripper, Blue Ripper Jr, Blue Ripper Rail Saw, Blue Ripper Jr Rail Saw and the Omega Diamond Logo are legal trademarks of Omega Diamond, Inc. All Rights Reserved. This Document may not be Copied or Distributed, in Part or in Whole, Manually or Digitally,...
