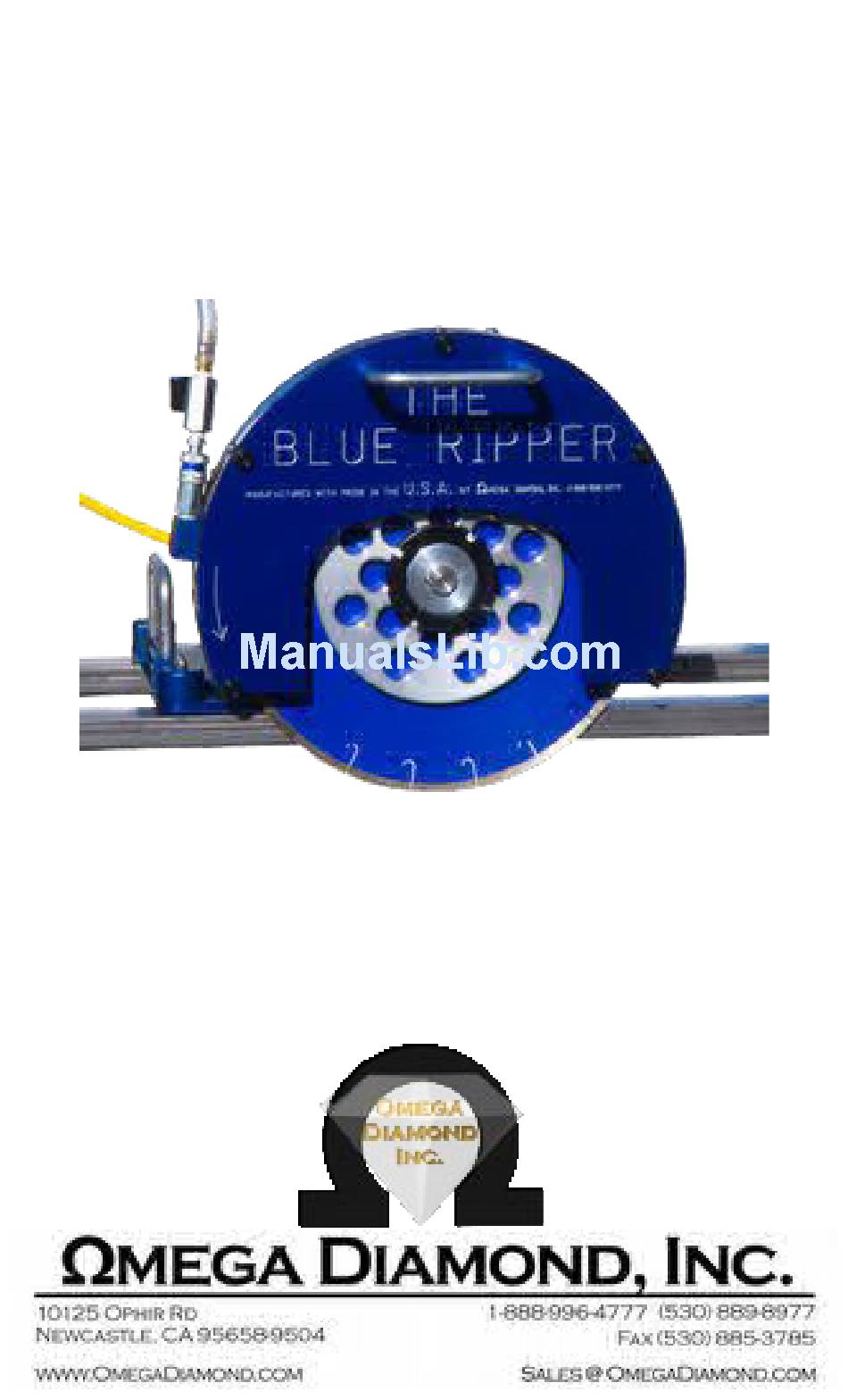

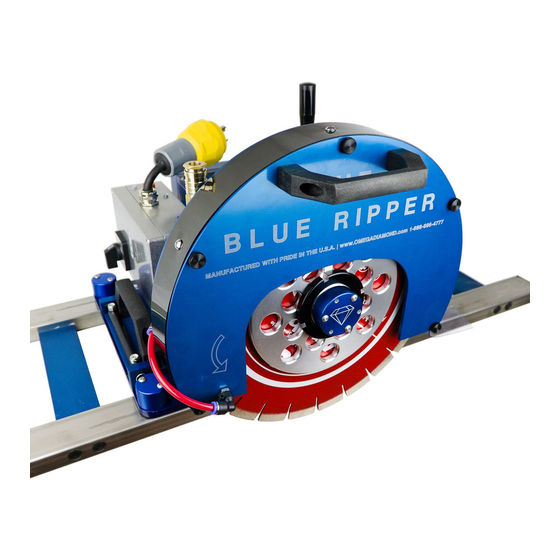

- Page 1 The Blue Ripper Sr™ The Blue Ripper Sr™ Rail Saw Blade shown might not ship with saw or be available. Saw might not match image due to design changes or model differences. Operation, Safety, and Instruction Manual v 20150723 ™...
-
Page 2: Operating/Safety Instructions
Page 2 Operating/Safety Instructions IMPORTANT: Read Before Operating Equipment To avoid accidents or injury, keep work area clean, well lit, and well ventilated. Always wear eye, hand, and all other appropriate protective apparel when operating saw. Keep all other people, children, and small farm animals away while operating saw. -
Page 3: Operating Instructions
Page 3 Operating Instructions Installing/Replacing Blade: Note: This saw is designed for stone and masonry applications exclusively. For optimal performance use only blades designed for your saw model. These blades can be purchased directly from Omega Diamond. Place the saw on the rail (with rail rubber side down) providing clearance for installing the blade. -
Page 4: Typical Operation
Page 4 Typical Operation: Note: For most cutting operations, it is recommended that you lay your slab on top of a foam sheet at least 1” (3cm) thick. (1.5” (4cm) is preferred for less crumbling). 1) Lay the rail on the slab along the line to be cut. 2) Allow the rails to overhang enough for the blade to clear the stone where you will begin your cut. -
Page 5: Troubleshooting
Page 5 Troubleshooting Blade seems to be cutting slowly or not cutting at all? Suggestions: Make sure the blade is mounted to spin in the proper direction (align arrow on blade with arrow on face guard). The material being cut may have “loaded” or “glazed” the diamond. Use a dressing stone or “green stone”... - Page 6 Page 6 Spin and Machine Motion Direction Saw might not match image due to design changes or model differences. Cut stone by moving machine in either direction Preferred cut direction Strike Cut Full Cut ← Right to left ← → Left to right → Perform a strike cut about ¼...
-
Page 7: Replacement Parts
Page 7 Replacement Parts Need parts? Is your blade worn out? Want a spare? Need extra rail? Give us a call and we will be happy to take your order. Toll Free: 1 (888) 996-4777 Outside USA: 1-530-889-8977 Fax: 1 (530) 885-3785 Web: OmegaDiamond.com Email:... - Page 8 Page 8...
- Page 9 Page 9 See omegadiamond.com/676-877 under Attached Files for the most current Replacement Parts List.
-
Page 10: Limited Warranty
Page 10 Limited Warranty For warranty information please visit our web site at omegadiamond.com/warranty Please record the Date of Purchase and the Serial Number of your machine here for future reference: Date of Purchase: Serial Number:... -
Page 11: User Notes
Page 11 USER NOTES: NOTICE: This product may have been field tested for quality control purposes. - Page 12 The Blue Ripper, Blue Ripper Sr, Blue Ripper Rail Saw, Blue Ripper Sr Rail Saw and the Omega Diamond Logo are legal trademarks of Omega Diamond, Inc. All Rights Reserved.
