Evco EV3 700 Series Quick Start Manual

EVCO S.p.A. | EV3 700 series | Instruction sheet ver. 1.0 | Code 1043700E103 | Page 1 of 2 | PT 05/18
EV3 700 series
EN ENGLISH

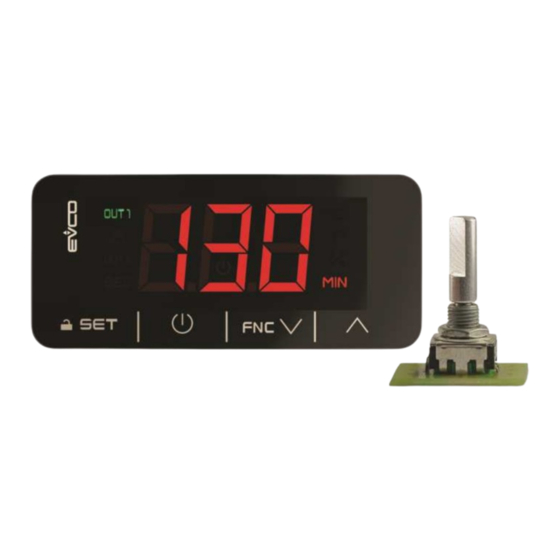

- user interface with push encoder or touch keys (according to the model)
- 230 VAC or 12 VAC/DC power supply (according to the model)
- 2 multi-purpose inputs
- relay output, 5 A res. @ 250 VAC
- alarm buzzer
- operation with programming key
N.B.
- the push encoder is not provided
- for models with a push encoder user interface, it is mandatory
- models with a touch key user interface also operate with push encoder.
Purchasing code User interface Power supply
EV3701D2 push encoder 12 VAC/DC
EV3701D7 push encoder 230 VAC
EV3711D2 touch keys 12 VAC/DC
EV3711D7 touch keys 230 VAC
1 MEASUREMENTS AND INSTALLATION
Measurements in mm (in); 39.5 (1 9/16) depth with fixed screw terminal blocks, 52.5 (2 1/16)
depth with plug-in screw terminal blocks.
To be fitted to a panel, snap-in brackets provided.
INSTALLATION PRECAUTIONS
- the thickness of the panel must be between 0.8 and 2.0 mm (1/32 and 1/16 in);
- ensure that the working conditions are within the limits stated in the TECHNICAL
SPECIFICATIONS section;
- do not install the device close to heat sources, equipment with a strong magnetic field,
in places subject to direct sunlight, rain, damp, excessive dust, mechanical vibrations
or shocks;
- in compliance with safety regulations, the device must be installed properly to ensure
adequate protection from contact with electrical parts. All protective parts must be
fixed in such a way as to need the aid of a tool to remove them.
2 ELECTRICAL CONNECTION
N.B.
- use cables of an adequate section for the current running through them.
- to reduce any electromagnetic interference locate the power cables as far away as
possible from the signal cables.
PRECAUTIONS FOR ELECTRICAL CONNECTION
- if using an electrical or pneumatic screwdriver, adjust the tightening torque;
- if the device is moved from a cold to a warm place, humidity may cause condensation
to form inside. Wait for about an hour before switching on the power;
- make sure that the supply voltage, electrical frequency and power are within the set
limits. See the section TECHNICAL SPECIFICATIONS;
- disconnect the power supply before carrying out any type of maintenance;
- do not use the device as a safety device;
- for repairs and for further information, contact the EVCO sales network.
3 FIRST-TIME USE
1. Carry out the installation following the instructions given in the section MEASUREMENTS
AND INSTALLATION.
2. Power up the device as set out in the section ELECTRICAL CONNECTION: an internal
test will start up.
The test normally takes a few seconds; when it is finished the display will switch off.
3. Configure the device as shown in the section Setting configuration parameters.
Recommended configuration parameters for first-time use:
PAR. DEF. PARAMETER
t00 1 type of timer
t02 1 timing
t13 0 quick setting value - steam injection
timer mode
Then check that the remaining settings are appropriate; see the section CONFIGURA-
TION PARAMETERS.
4. Disconnect the device from the mains.
5. Make the electrical connection as shown in the section ELECTRICAL CONNECTION with-
out powering up the device.
6. If necessary, connect the push encoder.
7. Power up the device.
4 USER INTERFACE AND MAIN FUNCTIONS
Output
relay, 5 A res.
4.1 Switching the device on/off
relay, 5 A res.
To switch on push encoder models:
relay, 5 A res.
relay, 5 A res.
1.
To switch off push encoder models:
1.
To switch on touch key models:
1.
To switch off touch key models:
1.
If the device is switched on, the display will show the t09 value ("time count-down" default); if
the display shows an alarm code, see the section ALARMS.
LED ON
relay active
OUT1
alarm active
unused
OUT2
time display
SEC
device switched off
unused
°C/°F
% percentage display
time display
MIN
If Loc = 1 and 30 s have elapsed without the keys being pressed, the display will show the
"Loc" label and the keypad will lock automatically.
4.2 Unlocking the keypad
Touch a key for 1 s: the display will show the label "UnL".
4.3 Quick setting:
- steam injection duration (if t00 = 0 and t13 = 0, default)
- cycle time for steam injection (if t00 = 0 and t13 = 1)
- number of steam injection automatic cycles (if t00 = 0 and t13 = 2)
- percentage of steam injection maximum duration (if t00 = 0 and t13 = 3)
- cooking timer duration (if t00 = 1)
For push encoder models
1.
2.
3.
Take no action for 15 seconds to exit the procedure in advance: the device will not
4.
save the entered value.
For touch key models:
- check that the keypad is not locked.
1.
2.
3.
4.
4.4 Stopping the timer:
- steam injection timer (if t00 = 0, default)
- cooking timer (if t00 = 1)
For push encoder models:
1.
To switch off touch key models:
1.
4.5 Silencing the buzzer
For push encoder models:
- rotate or press the encoder.
For touch key models:
- touch a key.
MIN... MAX.
0 = steam injection timer
1 = cooking timer
0 = s (seconds)
1 = min (minutes)
0 = injection duration
1 = cycle time
2 = number of automatic cycles
3 = maximum duration percentage
Timing modules for basic ovens
Press the encoder.
Press the encoder for 2 s.
Touch the ON/STAND-BY key.
Touch the ON/STAND-BY key for 2 s.
FLASHING
OFF
- quick setting in progress
- -
- -
- -
device switched on device being switched off
- -
- -
- -
Rotate the encoder.
Rotate the encoder within 15 s to set the value within the limits
t03 and t04.
Press the encoder.
Touch the SET key.
Touch the UP or DOWN keys within 15s to set the value within
the limits t03 and t04.
Touch the SET key.
Touch the ON/STANDBY key (or take no action for 15 s) to exit
the procedure in advance: the device will not save the entered
value.
Press the encoder for 2 s.
Touch the ON/STAND-BY key for 2 s.
5 FUNCTION MODES
Steam injection timer mode (t00 = 0) with 3 automatic cycles (t12 = 3).
Cooking timer mode (t00 = 1).
6 SETTINGS
6.1 Setting configuration parameters
For push encoder models:
- make sure that the timer is not in progress.
1. Press the encoder for 4 s: the display will show the label "PA".
2. Press the encoder.
Rotate the encoder within 15 s to set the PAS value (default "-
3.
19").
Press the encoder (or take no action for 15 s): the display will
4.
show the label "t00".
5. Rotate the encoder to select a parameter.
6. Press the encoder.
7. Rotate the encoder within 15 s to set the value.
8. Press the encoder (or take no action for 15 s).
Press the encoder for 4 s (or take no action for 60 s) to exit the
9.
procedure.
For touch key models:
- make sure that the timer is not in progress.
1. Touch the SET key for 4 s: the display will show the label "PA".
2. Touch the SET key.
Touch the UP or DOWN key within 15s to set the PAS value (de-
3.
fault "-19").
Touch the SET key (or take no action for 15s): the display will
4.
show the label "t00".
5. Touch the UP or DOWN key to select a parameter.
6. Touch the SET key.
7. Touch the UP or DOWN key within 15s to set the value.
8. Touch the SET key (or take no action for 15s).
Touch the SET key for 4s (or take no action for 60s) to exit the
9.
procedure.
6.2 Restoring factory settings (default) and saving customised settings
N.B.
- Check that the factory settings are appropriate; see the section CONFIGURATION
PARAMETERS.
- Saving customised settings overwrites the factory settings.
For push encoder models:
- make sure that the timer is not in progress.
1. Press the encoder for 4 s: the display will show the label "PA".
2. Press the encoder.
3. Rotate the encoder within 15 s to set the value.
VAL. DESCRIPTION
149 value for restoring the factory information (default)
161 value for saving customised settings
Press the encoder (or take no action for 15 s): the display will
4. show the label "dEF" (for setting the "149" value) or the label
"MAP" (for setting the "161" value).
5. Press the encoder.
6. Rotate the encoder within 15 s to set the value "4".
Press the encoder (or take no action for 15 s): the display will
7. show "- - -" flashing for 4 s, after which the device will exit the
procedure.
8. Disconnect the device from the power supply.
