Summary of Contents for Teledyne Lecroy USB2-GPIB

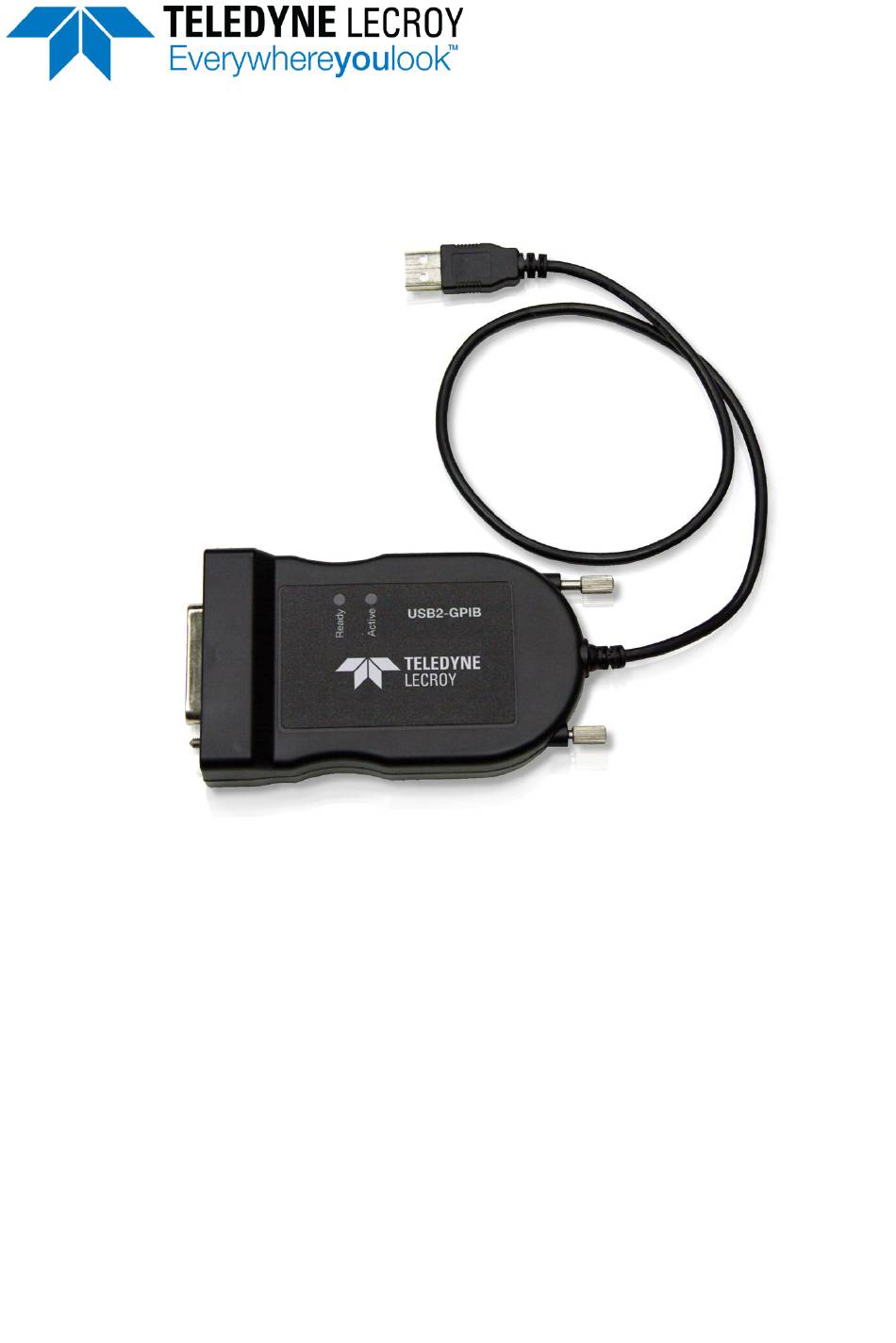

- Page 1 User Manual USB2-GPIB Adapter...
- Page 2 Resale or unauthorized duplication of Teledyne LeCroy documentation materials is strictly prohibited. Teledyne LeCroy is a registered trademark of Teledyne LeCroy, Inc. Other product or brand names are trademarks or requested trademarks of their respective holders.
-
Page 3: Table Of Contents
User Manual Contents USB2-GPIB Overview ..................2 Specifications ..................... 2 Safety ........................3 Connecting the Adapter ..................3 Setting up the GPIB Connection ................4 Checking Communication Status ............... 4 Firmware Upgrade....................5 Maintenance....................... 6 Cleaning ........................6 Returning a Product for Service ................6 Technical Support .................... -
Page 4: Usb2-Gpib Overview
PC using standard GPIB commands. The GPIB connector conforms to IEEE488.2 standard. Its delimiter setting is LF+EOI. Note that the USB2-GPIB does not function as a GPIB controller. The USB connector conforms to USB 2.0. The source voltage is supplied from the USB port. -
Page 5: Safety
Do not use in wet/damp or explosive atmospheres. For indoor use only. The USB2-GPIB is intended for indoor use and should be operated in a clean, dry, environment. Do not operate with suspected failures. Do not use USB2-GPIB if any part is damaged. -
Page 6: Setting Up The Gpib Connection
2. Select GPIB in the ‘Control From’ section. 3. Enter the GpibAddress value. Checking Communication Status The USB2-GPIB is equipped with two LEDs on the GPIB connector side that indicate the communication status of the GPIB link: Red LED lit: READY, power to the USB2-GPIB is ON. -
Page 7: Firmware Upgrade
Firmware Upgrade After initial driver installation or an oscilloscope firmware upgrade, it may be necessary to upgrade the dongle firmware on the USB2-GPIB. A pop-up window will appear to indicate incompatibility and instruct you to remove the device. Follow these steps to upgrade the dongle firmware: 1. -
Page 8: Maintenance
Teledyne LeCroy. Be sure to add the following: ATTN:<RMA code assigned by Teledyne LeCroy> FRAGILE 4. If returning a probe to a different country: contact Teledyne LeCroy Service for instructions on completing your import/export documents. Extended warranty, calibration and upgrade plans are available for purchase. -
Page 9: Technical Support
2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). For more information about proper disposal and recycling of your Teledyne LeCroy product, visit teledynelecroy.com/recycle. Unless otherwise specified, all materials and processes are compliant with RoHS Directive 2011/65/EU in its entirety, inclusive of any further amendments... -
Page 10: Warranty
ALL PRODUCTS UNDER WARRANTY WITH TRANSPORT PREPAID. The product is warranted for normal use and operation, within specifications, for a period of one year from shipment. Teledyne LeCroy will either repair or, at our option, replace any product returned to one of our authorized service centers within this period. - Page 11 User Manual...
