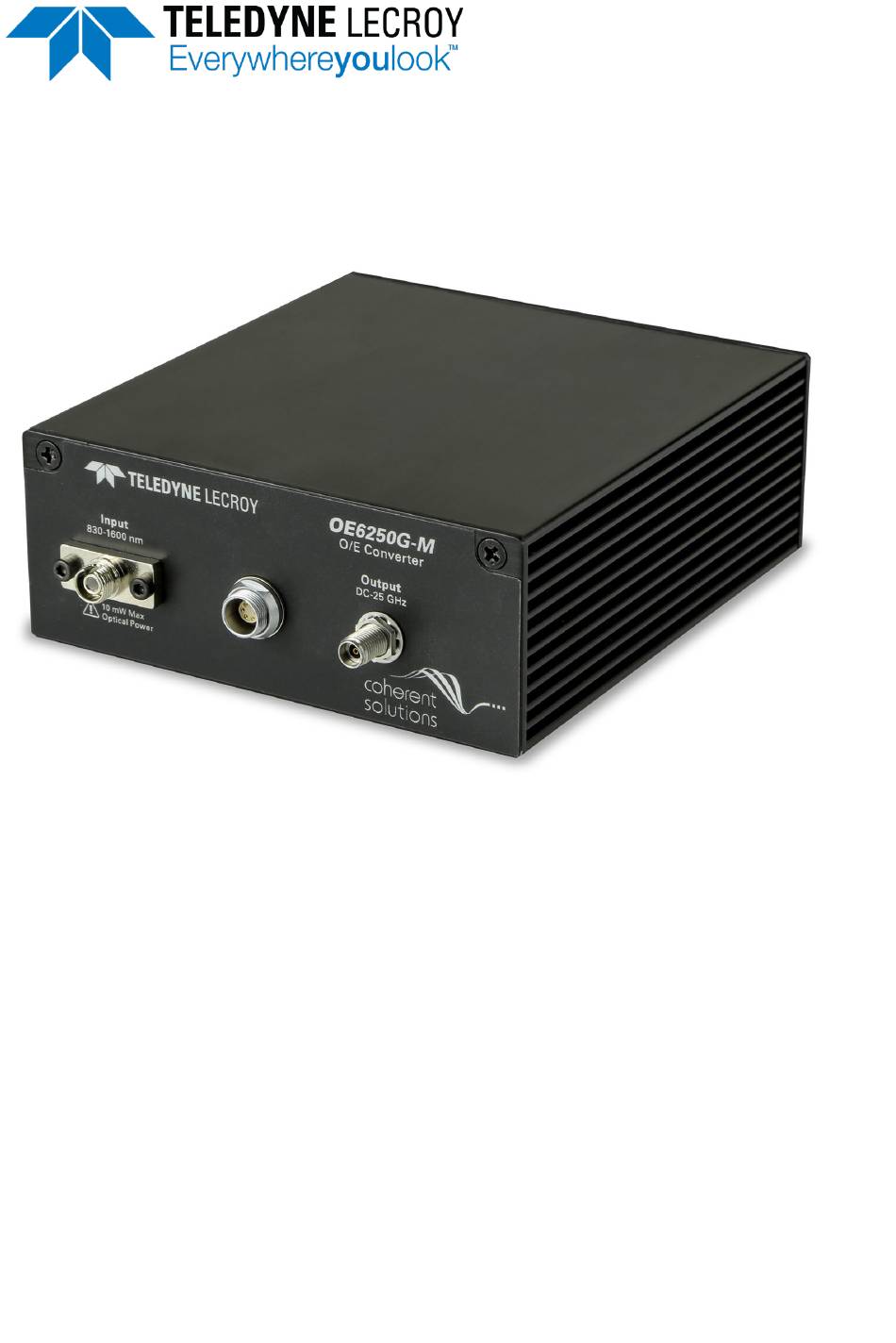

- Page 1 User Manual OE6250G-M Optical-Electrical Converter...
- Page 2 Resale or unauthorized duplication of Teledyne LeCroy documentation materials is strictly prohibited. Teledyne LeCroy is a registered trademark of Teledyne LeCroy, Inc. Other product or brand names are trademarks or requested trademarks of their respective holders.
-
Page 3: Table Of Contents
User Manual Contents Warranty ......................ii OE6250G-M Overview ..................1 Key Features: ......................1 Compatibility ......................1 Safety ........................2 Operation ......................3 Connecting the Unit ....................3 Controlling from the Oscilloscope ............... 4 Care and Maintenance ..................6 Cleaning the Converter Body ................6 Cleaning and Connecting Optical Fibers ............ -
Page 4: Warranty
PREPAID. The product is warranted for normal use and operation, within specifications, for a period of one year from shipment. Teledyne LeCroy will either repair or, at our option, replace any product returned to one of our authorized service centers within this period. However, in order to do this we must first examine the product and find that it is defective due to workmanship or materials and not due to misuse, neglect, accident, or abnormal conditions or operation. -
Page 5: Oe6250G-M Overview
OE6250G-M provides electrical measurements on optical signal and takes full advantage of the Teledyne LeCroy oscilloscope tool set and the broad debugging capabilities of the Teledyne LeCroy Serial Data Analysis packages. Utilizing the proprietary ProLink interface, the OE6250G-M becomes an integrated part of the oscilloscope. -
Page 6: Safety
OE6250G-M Optical-Electrical Converter Safety This symbol appears on the product or in its documentation to alert you to important safety considerations. CAUTION of potential damage to product, or WARNING of potential for bodily injury. Attend to the accompanying information to protect against injury or damage. -
Page 7: Operation
User Manual Operation Connecting the Unit To connect the converter to the oscilloscope: 1. Connect the power cable by aligning the red dot on the LEMO plug to the red mark on the oscilloscope’s LEMO receptacle and pushing until you hear a click. 2. -
Page 8: Controlling From The Oscilloscope
OE6250G-M Optical-Electrical Converter Controlling from the Oscilloscope After the connector is attached, the vertical scale shown on the Channel descriptor box will automatically change to µW/div units. Turning the front panel V/Div knob or changing the V/Div setting on the Cx dialog will adjust the scale factor to give full dynamic range in µW/Div. - Page 9 User Manual The plot below shows a comparison of both response modes (at their maximum bandwidth setting). OE6250G-M: Nominal Compensated Response 4th-order Bessel-Thomson response Flatness-opimized response Frequency (GHz) Optical Wavelength The optical wavelength of the OE6250G-M can be selected between 830 nm and 1600 nm in increments of 10 nm.
-
Page 10: Care And Maintenance
OE6250G-M Optical-Electrical Converter Care and Maintenance Cleaning the Converter Body Clean only the exterior of the product using a soft cloth moistened with water or an alcohol solution. Do not use harsh chemicals or abrasive elements. Under no circumstances submerge the device or allow moisture to penetrate it. CAUTION: Do not attempt to clean internal parts. -
Page 11: Calibration Interval
• 2.92mm cable is connected. Service Defective products must be returned to a Teledyne LeCroy service facility for diagnosis and repair or replacement. Defective products under warranty will be repaired or replaced. For a complete list of offices by country, including our sales & distribution partners, visit: teledynelecroy.com/support/contact... -
Page 12: Certifications
2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). For more information about proper disposal and recycling of your Teledyne LeCroy product, visit teledynelecroy.com/recycle. Unless otherwise specified, all materials and processes are compliant with RoHS Directive 2011/65/EU in its entirety, inclusive of any further amendments or modifications of said Directive.
