GE Profile CustomStyle PSH25MGS Dimensions And Installation Information page 2

PSH25MGS
GEProfileCustomStyle

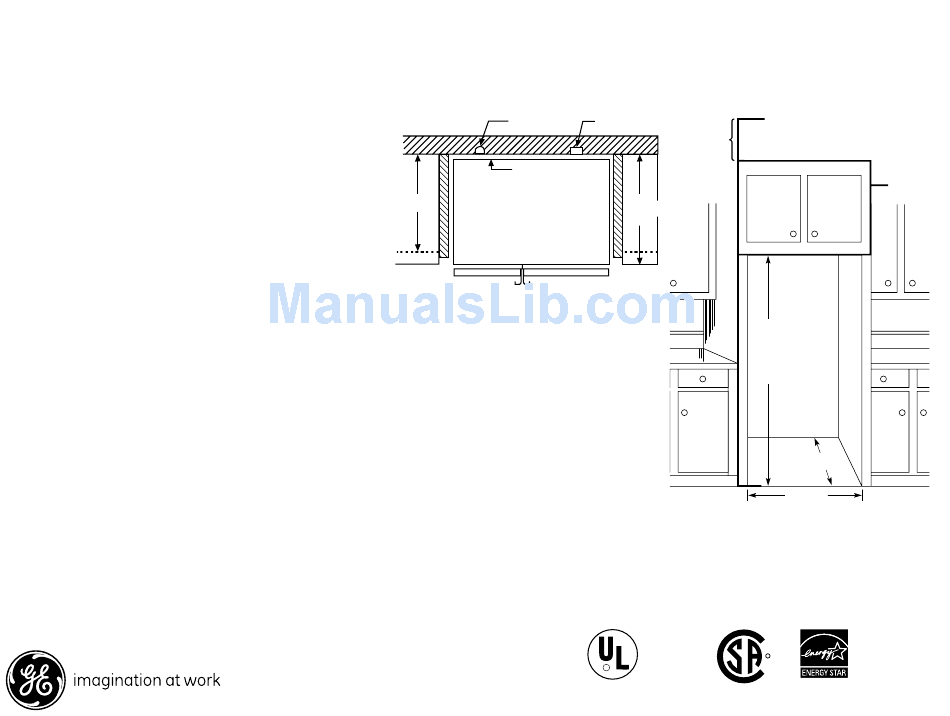

Rough-In Dimensions and Installation Information (in inches)
Installation Tips to Maximize the Built-In Look
• A llwall/floormoldingshouldberemovedpriortoinstallation.
• W aterrecessonrearwallrecommendedtopreventwater
 linedamage.48"minimumlength,1/4"diameterwater
 linetubingrecommended.
• W henpossible,recessbothcopperwaterlineandelectrical
 outlet.(Seelocalcodes)
• F rontandrearlevelinglegsareadjustableforthebuilt-inlook.
 (Seeowner'smanual)
**Therough-indimensionsof70-1/4"/72-1/4"areminimumand
 measuredfromthefinishedfloortotopofopening(orthe
 undersideoftheoverheadcabinets).ForModelswithTrimKit:
 Ifframelessstylecabinetsareplannedforabovetherefrigerator,
 youmayneedtoconsideraddingamaximumof1/4"(70-1/2")
 toheightofopeningfor23cu.ft.modelsand1/8"(72-3/8")for
 25cu.ft.modelstoallowforadditionalclearancebetweenthe
 cabinetdoorsandthetopofrefrigeratortrimwhenthecabinet
 doorsareinopenposition.
ForanswerstoyourMonogram, GEProfile
®
GE ® appliancequestions,visitourwebsiteat
ge.comorcallGEAnswerCenter service,
®
800.626.2000.
ENERGYSTAR 24.6Cu.Ft.StainlessSide-By-SideRefrigerator
™ ®
or
™
Water
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
FOR 24 CUBIC FOOT MODELS
8' Ceiling
Electrical
12"
Soffit
24"
25"
Cabinet
Counter
Top
70-1/4"*
Fig 2A eps 23 cu. ft. models
72-1/4"*
25 cu. ft. models
*The rough-in dimensions of 70-1/4"/72-1/4" are minimum and measured from
the finished floor to top of opening (or the underside of the overhead cabinets).
For Models with Trim Kit: If frameless style cabinets are planned for above the
refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to
height of opening for 23 cu. ft. models and 1/8" (72-3/8") for 25 cu. ft. models
to allow additional clearance between cabinet doors and top of refrigerator trim
when cabinet doors are in open position.
Listed by
Underwriters
Laboratories R
R
Specification Revised 3/06
Collar Trim In. w/ceiling
Water Electrical
3/4" Airspace
(1/2" Gap + 1/4"
13" to 14"
Wall Plates)
Cabinet
25"
Counter
Top
Trim
24-1/2"
36-1/8"
As an EnErgy StAr ®
partner, gE has determined
that this product meets the
EnErgy StAr guidelines
for energy efficiency.
210282
