Cascade Mode Of Pos Access Devices - H3C MSR Series Configuration Manual

Figure 4 Network diagram of POS application connections
Ethernet POS
terminal device
Ethernet POS
terminal device
Ethernet POS
terminal device

Cascade mode of POS access devices

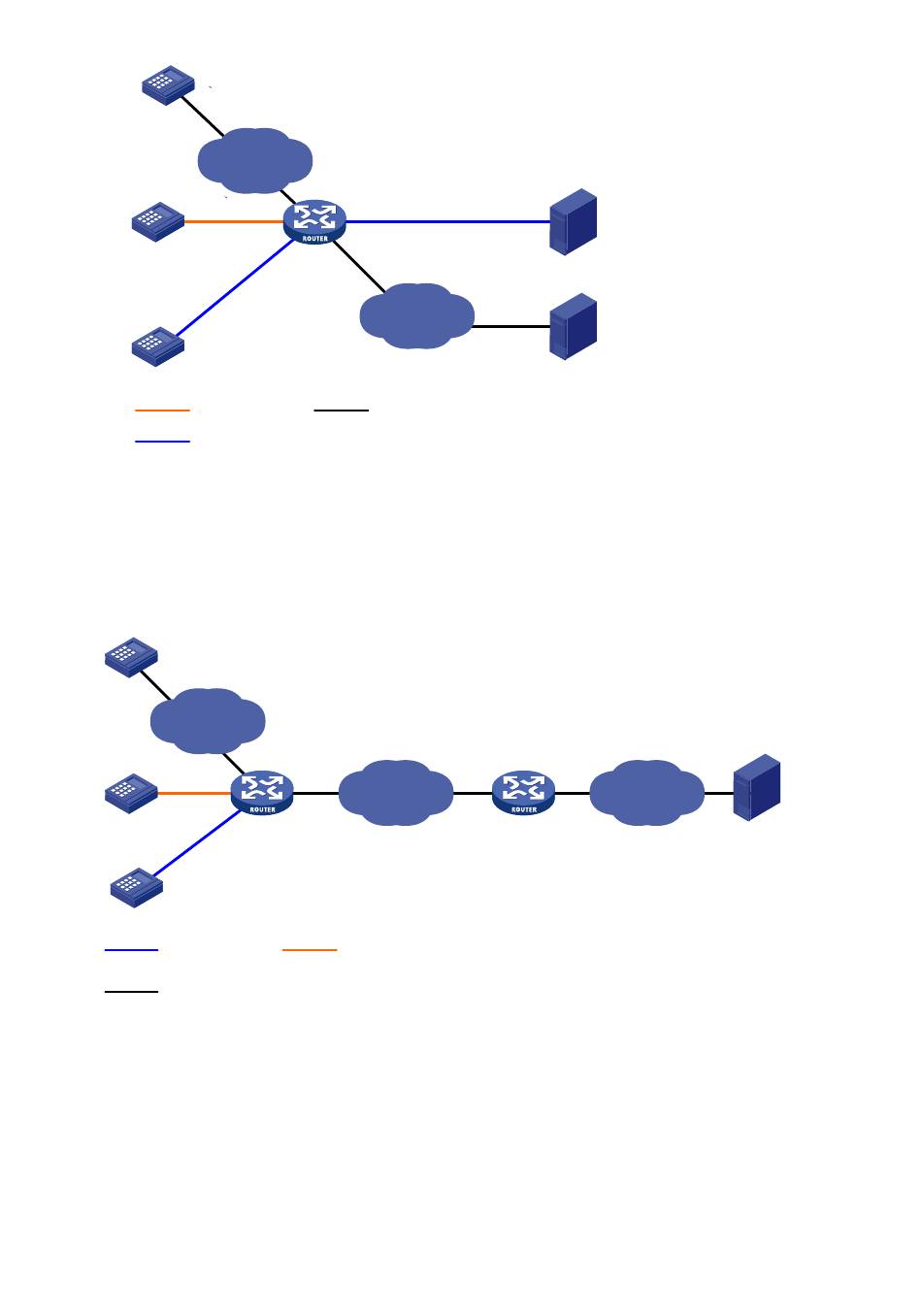

You can also connect POS terminals to POS access devices in cascade mode, as shown in
Figure 5 Cascade mode of POS access devices
Ethernet pos
terminal device
IP network
POS terminal
device
POS terminal
device
RS232
IP packet transmission media
In cascade mode, packets from POS terminals to the FEP are processed by Router A and then by Router
B.
To Router A, Router B serves as the FEP using TCP connection mode.
•
• To router B, Router A serves as an Ethernet POS terminal device.
Router A creates a TCP connection for each POS terminal, so Router B can determine the destination POS
terminal based on the TCP connection.
To use the cascade mode:
Establish TCP connections between Router A and Router B.
•
IP network
Router
(POS access
device)
IP network
RS485
RS232
IP network
Router A
(POS access
device)
RS485
Flow
connection
Bank FEP 1
Bank FEP 2
IP packet
transmmission media
Router B
(POS access
device)
5
IP network
Bank FEP
Figure 5.
