Seconique TORTILLA NEST Assembly Instructions

Seconique TORTILLA NEST Assembly Instructions

Of 2 tables

Advertisement

Quick Links

SEC/SH/09/20/DS1
54271 - DS

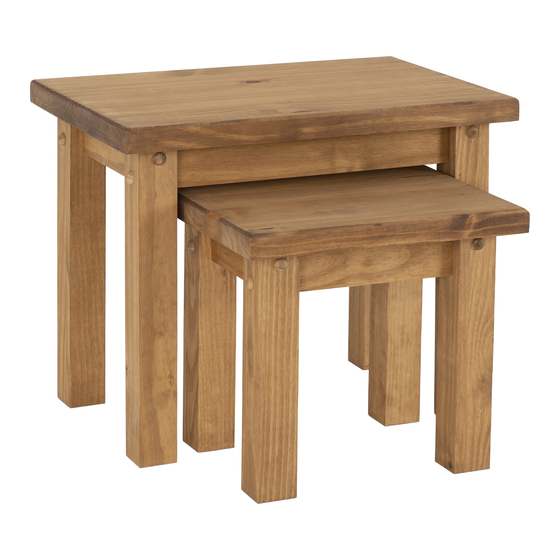

TORTILLA NEST OF 2 TABLES
ASSEMBLY INSTRUCTIONS
!
DO NOT
USE
IMPORTANT
PLEASE READ BEFORE YOU CONTINUE FURTHER
FOR DOMESTIC USE ONLY

CARE AND MAINTENANCE

After unpacking this product please keep the original packaging in case it needs to be
returned for any reason.
• Please ensure all fittings and parts are present before commencing with assembly.
• We recommend that you lay a blanket or sheet on the floor to avoid damage to both your
floor and the product.
• We strongly recommend that you keep children away from your work area.
• Assemble this product as close to its final position as possible.
• Never drag or push products as this could cause damage to the joints making it inferior.
• Do not place this product next to a radiator or in direct sunlight.
• Wood is a natural product and may expand if subjected to damp and may shrink or crack
if subjected to heat. Therefore it is recommended that room temperature is maintained,
with no sudden temperature fluctuations.
• Make sure any spillage is wiped o ffimmediately.
• Do not place hot or chilled items directly on to the surface, use a place mat or marking
will occur.
• For general cleaning use a duster, and do not use detergents of any kind. However, the
surface will need to be retreated from time to time. This can be done by using block wax
(unperfumed) and rubbing it over the whole item.
• From time to time it may be necessary to tighten fittings, regular inspections should be
carried out.
PAGE 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TORTILLA NEST and is the answer not in the manual?

Questions and answers

Summary of Contents for Seconique TORTILLA NEST

  • Page 1 SEC/SH/09/20/DS1 54271 - DS TORTILLA NEST OF 2 TABLES ASSEMBLY INSTRUCTIONS DO NOT IMPORTANT PLEASE READ BEFORE YOU CONTINUE FURTHER FOR DOMESTIC USE ONLY CARE AND MAINTENANCE After unpacking this product please keep the original packaging in case it needs to be returned for any reason.
  • Page 2 SEC/SH/09/20/DS1 245mm 500mm 380mm 500mm 380mm Please Note: The below parts have been number/colour coded to help identify them during assembly. to help identify them during assembly. Part Number Part Code Part Description Quantity Carton S300-303-017-DS1-01 Top panel (Large) S300-303-017-DS1-02 Front/Rear panel (Large) S300-303-017-DS1-03 Side panel (Large)
  • Page 3 SEC/SH/09/20/DS1 PARTS REQUIRED FRONT/REAR PANEL (SMALL) 380mm LEG (SMALL) (YELLOW) 10 - LEG (SMALL) (BLUE) 380mm HARDWARE REQUIRED Detail 2 Detail 1 Ø7,0x70 mm (Yellow Marking) GLUE (Blue Marking) (Blue Marking) TOOLS REQUIRED Small Detail 1 Detail 2 PARTS REQUIRED SIDE PANEL (SMALL) HARDWARE REQUIRED Detail 2...
  • Page 4 SEC/SH/09/20/DS1 STEP 3 PARTS REQUIRED FOR YOUR FUTURE REFERENCE 6 - TOP PANEL (SMALL) ORDER NUMBER SHOULD BE HERE Detail 4 Detail 5 CENTRALIZE HARDWARE REQUIRED 00000DS Ø4,0 x 40CP Wooden Cap TOOLS REQUIRED Small Detail 4 Detail 5 STEP 4 Large PARTS REQUIRED 500mm...
  • Page 5 SEC/SH/09/20/DS1 STEP 5 Detail 1 Detail 2 Large Detail 1 Detail 2 Large STEP 6 Ø4,0 x 40CP Detail 4 PAGE 5...
