PS-C25TB
Power Managment Enclosure with built in Secure Relay I/O Module
Installation Manual

1. Introduction

The PS-C25TB is a Power Management Enclosure for use with
Rosslare's Secure Stand-Alone Controller Unit. It is a combination of
the ME-0515M Multipurpose Power Management Enclosure and the
MD-25TB Secure Relay I/O Module preassembled for installation
convenience. The secure relay provides power to the Controller Unit.
The Controller Unit communicates with the secure module through a
Rosslare proprietary protocol, providing instructions to activate the
lock/auxiliary relays and a built-in sounder (with bell and siren
tones). The secure module also communicates the REX input status
to the Controller Unit. A red LED indicates the secure module power
status. The secure module includes removable terminal blocks for
ease of wiring and installation.
The enclosure features a switch-mode power supply (SMPS) that
outputs power to the PM-05 power management module.
The PM-05 power management module has two independent power
channels with an isolated PTC (self-resetting fuse). One channel
powers the MD-25TB while the other channel may be used to power
a lock. Battery backup is available. When AC power fails, the PM-05

2. Technical Specifications

2.1

Electrical Characteristics

SMPS
Input
Output
PM-05
Input
DC Output
Battery Charge
current
MD-25TB
Input
Output
Auxiliary Output
Speaker Output
LED indicators

3. Installation

3.1

Mounting

Make sure the mounting location is a flat surface.
To mount the ME-0515M:
1. Drill holes in the wall using the enclosure back cover holes as a
guide (Figure 2).
2. Insert masonry anchors into the drilled holes.
3. Mount the enclosure on the wall.
4. Once the PC-C25TB is mounted, it can house a controller and an
expansion.
110 – 240 VAC, 50/60 Hz, 1.5 A
15 VDC, 4 A
15 VDC, 4 A
14.5 VDC, 2 A (CH1/CH2)
1.5 A
12 VDC, 2 A
12 VDC, 0.25 A (PCB maximum output
current)
5 A Form C, SPDT Relay
Max Switched Current: 5 A
Max Switched Voltage: 150 VDC or 300 VAC
UL Rating: 5 A at 30 VDC or 5 A at 125 VAC
0.25 W, 8 Ω (minimum)
Power status:
Red – power on
Off – power off
instantaneously (UPS) switches power over to a stand-by sealed
lead acid (SLA) battery (not included) charged by a built-in battery
charger.

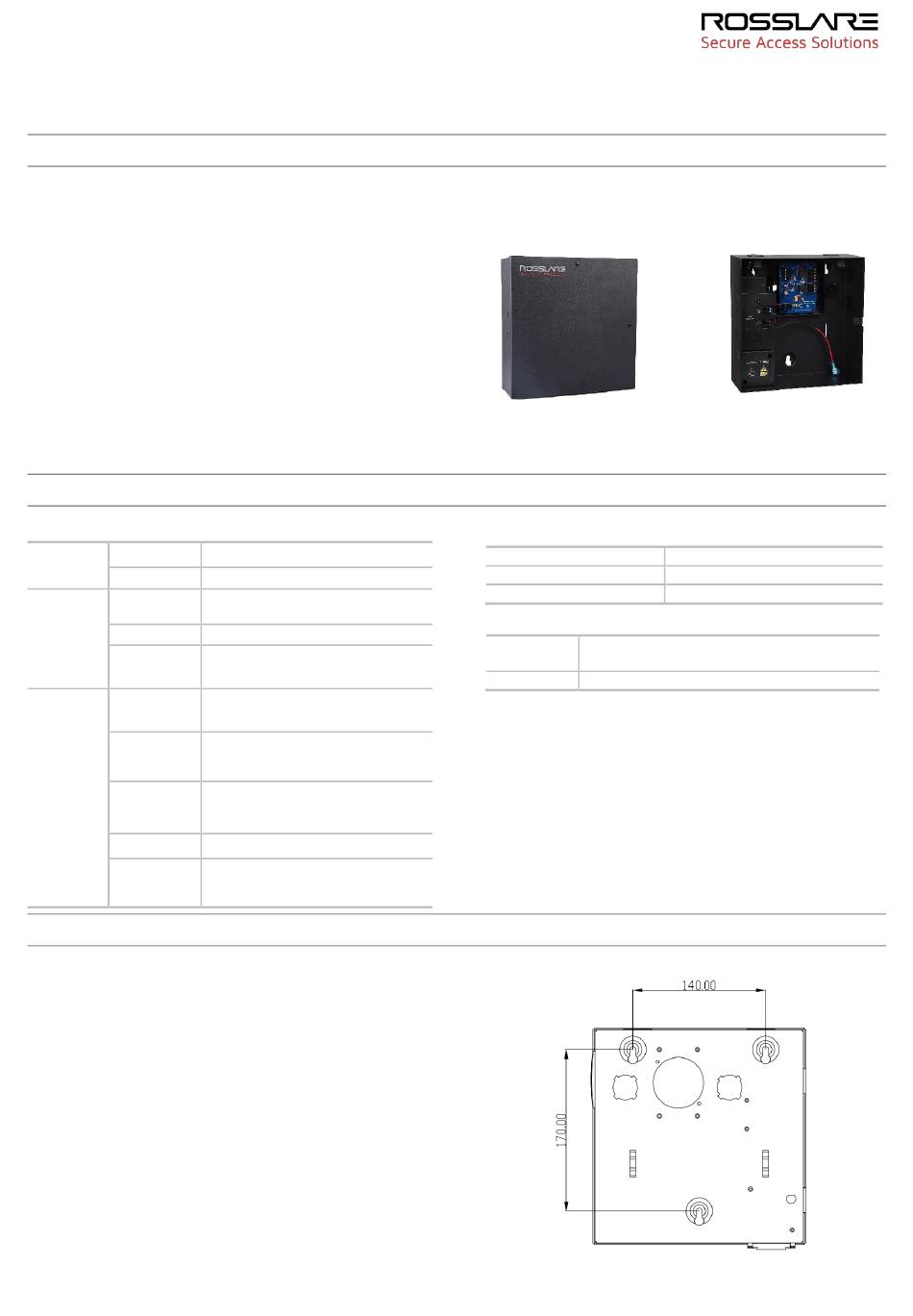

Figure 1: PS-C25TB
2.2

Environmental Characteristics

Operating Environment
Operating Temperature Range
Operating Humidity Range
2.3

Physical Characteristics

Dimensions
228 x 224 x 84 mm
(H x W x D)
Weight
2.21 kg (4.87 lb)
Figure 2. Enclosure Drill Holes
Indoor
-10°C - 50°C (14°F - 122°F)
0% - 85% (non-condensing)
