Rosslare ME-1015 Installation Manual

ME-1015
Enclosure for Networked Access Controllers
Installation Manual

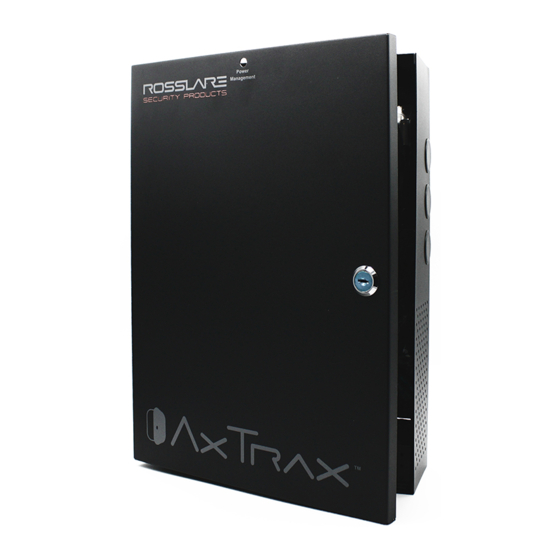

1. Introduction

The ME-1015 power management enclosure is a lockable metal
cabinet for indoor use supporting Rosslare's AC-215x, AC-225x, and
AC-425x, networked control panels.
The ME-1015 enclosure has a Universal Power Socket (UPS) with a
C14 standard plug for the VAC switcher power supply, as well as an
audio speaker sounder for chime, bell, and siren.
The ME-1015 has a VDC power management board with charger for
a 12 V / 7 Ah lead acid battery, and output power supply.
The unit has a LED illumination bar that is connected to the
controller boards and lights when the enclosure door is open. The
illumination bar includes a green power status LED and a tamper
switch at the front of the enclosure. With the built-in pre-wired
tamper switch, an event is generated and sent to the AxTraxNG™
server any time the main cover is opened.

2. Technical Specifications

2.1 Electrical Characteristics – Power
Enclosure
PM-10 PCBA Input Power
Backup Battery
PM-10 PCBA Output Power
LED Indicators
Input: 100 to 240 VAC, 1.6 A, 50–60 Hz,
switch mode power management board
C13 power cord
Switching Power Supply Output: 15 VDC,
4 A
15 VDC, 2 A, regulated power
management board
12 V sealed lead acid (SLA) up to 7 Ah
Automatic Charging Circuit @ 300mA
Power switches to UPS Mode when mains
fail
Channel 1: 13.8 VDC @ 2 A for
panel/readers
Channel 2: 13.8 VDC @ 2 A for locks
Channels are physically isolated and
fused with PTC resettable fuse
1 red LED for each power output, lights
when the power is active

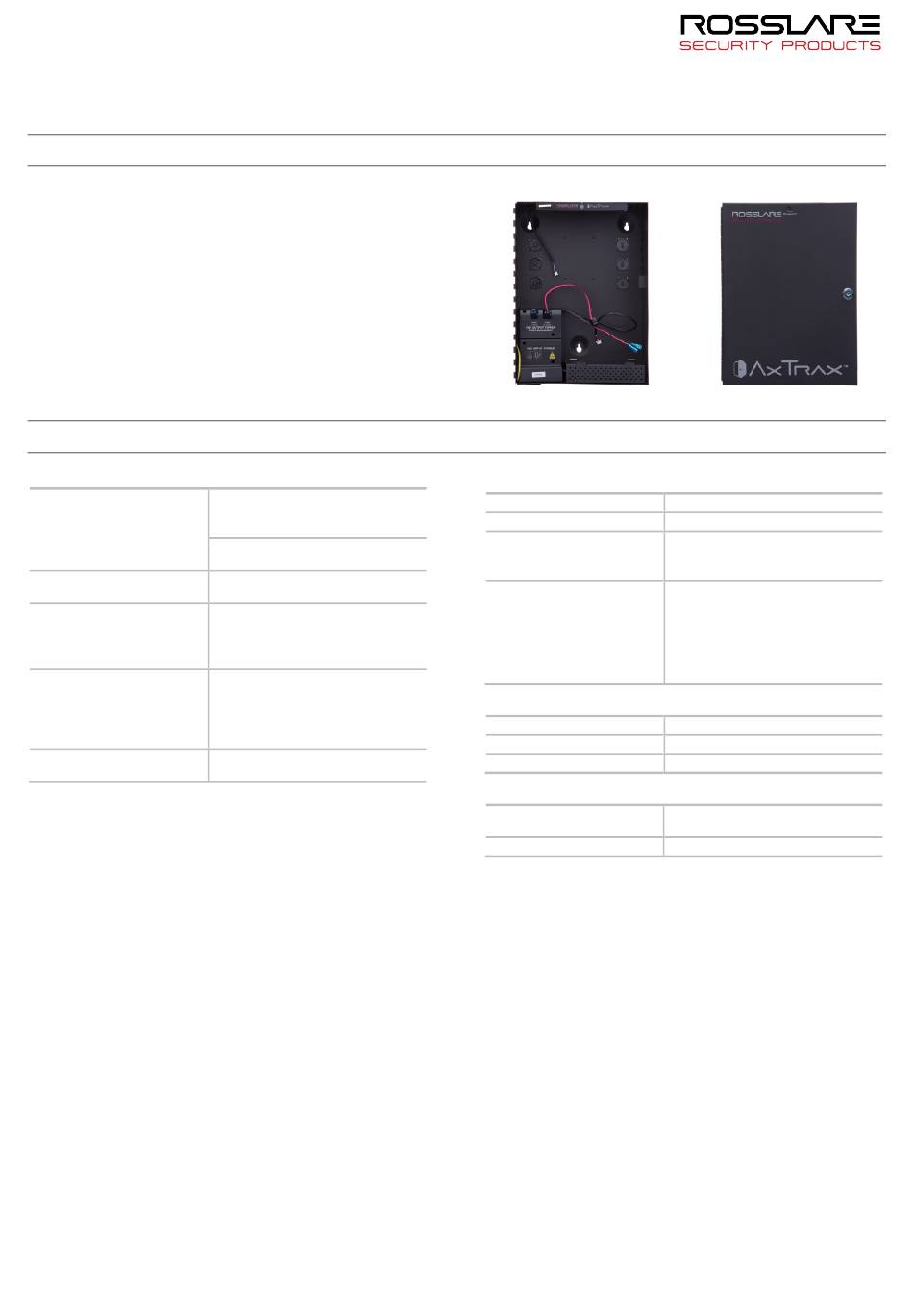

Figure 1: ME-1015 Door Open and Locked
2.2 Electrical Characteristics – Others
Lightbar™ Current Consumption
Built-In Speaker
Tamper Switch
Power Logic States
2.3

Environmental Characteristics

Operating Environment
Operating Temp. Range
Operating Humidity Range
2.4

Physical Characteristics

Enclosure Dimensions
(H x W x D)
Enclosure Weight*
* For weight purposes, the ME-1015 enclosure includes the metal box, AC
input, DC output and LED bar.
1
10 mA – 10 LED light (white LED) – 0.3 W
0.5 Watt – 8 Ohm
Normally Open (closed when cover is
closed)
2-Wires – Built in to the light bar
Main Power – Restored
Main Power – Failed
UPS Battery – No UPS battery detected
UPS Battery – UPS mode started
UPS Battery – UPS mode ended
UPS Battery – UPS low battery (30%)
Indoor
0°C to 50°C (32°F to 122°F)
0 to 85% (non-condensing)
364 x 264 x 87.4 mm
(14.3 x 10.4 x 3.4 in.)
3.4 kg (7.5 lb)
