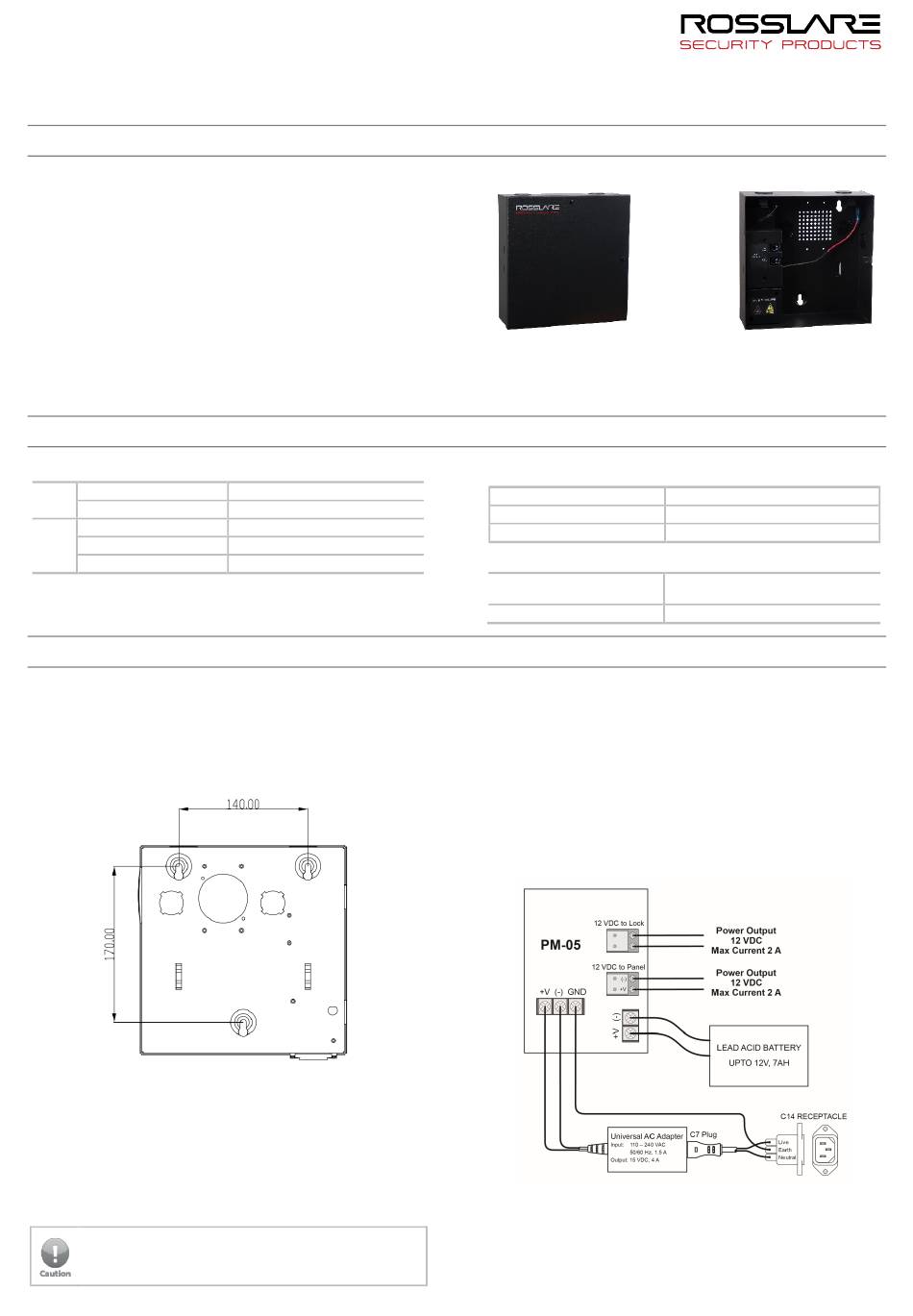

Rosslare ME-0515M Installation Manual

ME-0515M
Multipurpose Power Management Enclosure
Installation Manual
1. Introduction
The ME-0515M is a multi-purpose Power Management Enclosure
featuring a switch mode power supply that outputs power to the
PM-05 power management module.
The PM-05 power management module has two independent power
channels with an isolated PTC (self-resetting fuse). Battery backup
is available. When AC power fails, the PM-05 instantaneously (UPS)
switches power over to a stand-by sealed lead acid (SLA) battery
(not included) charged by a built-in battery charger. A low battery
cutoff prevents batteries from deep discharge.
The tough metal enclosure accommodates one 12VDC, 7Ah SLA
battery. The enclosure is equipped with a standard IEC320-C14 AC
inlet allowing for easy connection to mains power using a standard
C13 power cord. The provided power lock clamp prevents
inadvertent disconnection of the C13 plug. Multiple knockouts are
suitable for use with 1" conduits.
2. Technical Specifications
2.1 Electrical Characteristics
SMPS Input
Output
PM-05 Input
DC Output
Battery Charge current
3. Installation
3.1 Mounting
Make sure the mounting location is a flat surface.
To mount the ME-0515M:
1. Drill holes in the wall using the enclosure back cover holes as a
guide (Figure 2).
Figure 2: Enclosure Drill Holes
2. Insert masonry anchors into the drilled holes.
3. Mount the enclosure on the wall.
4. Once the ME-0515M is mounted, it can house a controller and
an expansion.
3.2 Connecting the Battery
Once the control panel connections are completed, you can install
the battery.
To connect the battery:
Make sure the AC power cable is disconnected.
100 – 240 VAC, 50/60 Hz, 1.5 A
15 VDC, 4 A
15 VDC, 4 A
12 VDC, 2 A (CH1/CH2)
1.5 A
Figure 1: ME-0515M
2.2 Environmental Characteristics
Operating Environment
Operating Temp. Range
Operating Humidity Range
2.3 Physical Characteristics
Enclosure Dimensions
(H x W x D)
Enclosure Weight
1. Use a 7Ah sealed lead acid battery with crimp terminals (Yuasa
Model NP7-12FR or equivalent).
2. Connect the backup battery red and black wires.
If there is residual power in the battery, the system should turn
on. If the battery is completely empty, the system will not power
on.
3. Connect the AC power cable.
3.3 Wiring
Refer to the wiring diagram below.
Figure 3. General Wiring Diagram
Indoor
-10°C - 50°C (14°F - 122°F)
0% - 85% (non-condensing)
228 x 224 x 84 mm
2.1 kg
