Installation and User's Guide
with ClearPro Technology
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
®

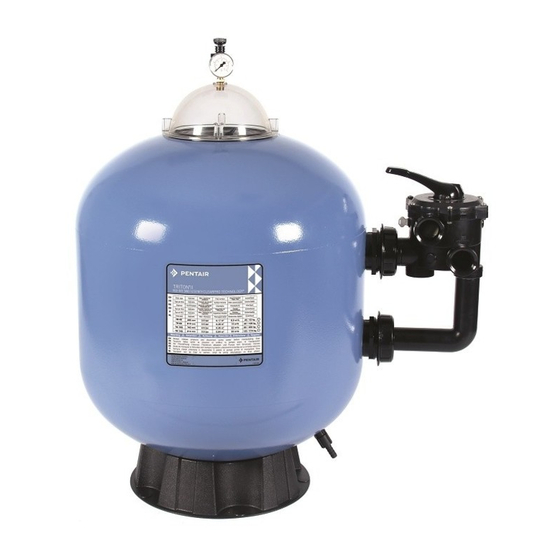

Triton
Tagelus
II
Tagelus
and
Sandfilters
®
Triton
®
®
,
,
II
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Triton and is the answer not in the manual?

Questions and answers

Related Manuals for Pentair Triton

Summary of Contents for Pentair Triton

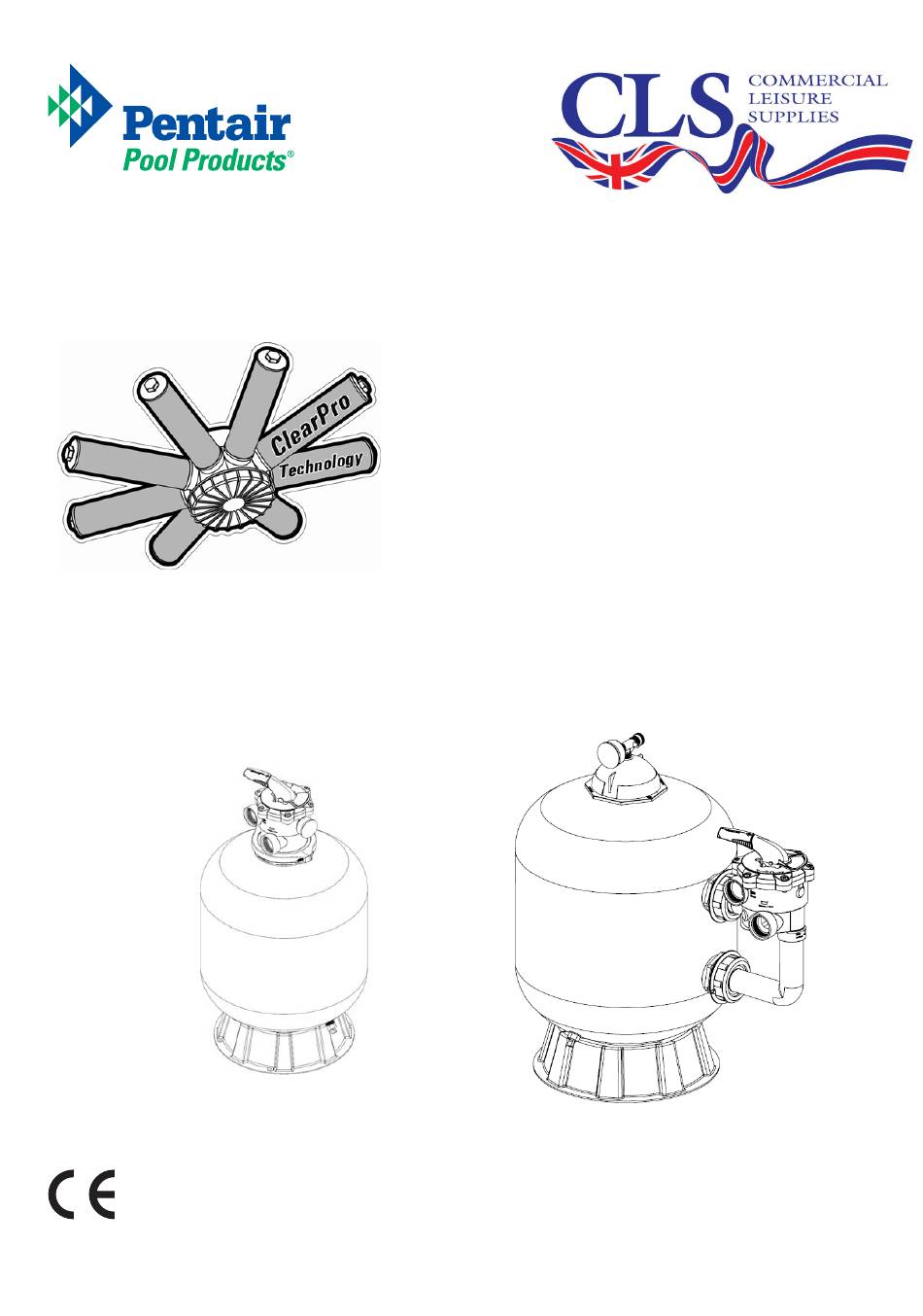

  • Page 1 Installation and User’s Guide Sandfilters ® Triton ® Tagelus ® ® Triton Tagelus ® with ClearPro Technology IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS...

  • Page 2: Important Safety Precautions

    This filter operates under pressure and if assembled improperly or operated with air in the water circulation ® ® system, the top cap (Triton ) or top valve (Tagelus ) can separate, blowing off, which may result in an accident causing property damage or serious bodily injury.

  • Page 3: Section 6 Servicing And Maintenance

    Shift the valve handle to "Filter backwash". ® ® Start pump and let it run until water is clean (Triton : about 5-10 minutes; Tagelus : about 3 minutes). Shut off the pump and turn off the water supply to the pump.

  • Page 4: Section 7 Trouble Shooting

    Section 7 Trouble shooting Short Cycle between backwashes Flow rate too high or filter too small: consult dealer for system sizing recommendations. Water is chemically out of balance: consult pool serviceman. C. Excess dirt/dust in pool: vacuum pool directly to waste. D.
  • Page 5 TECHNICAL DATA ® ® ® TRITON and TRITON II with CLEARPRO TECHNOLOGY F-19S8-TRV F-24S8-TRV F-30S8-TRV F-36S8-TRV (mm) F-19S8-TRCP F-24S8-TRCP F-30S8-TRCP F-36S8-TRCP 1095 1200 1006 1146 1251...
  • Page 6 TECHNICAL DATA ® ® ® TRITON and TRITON II with CLEARPRO TECHNOLOGY Reference Description Qty. E-26-1070ND Manual multi-port valve 1 1/2" (complete) for filter Ø 480 mm (19") and Ø 610 mm (24") E-26-1071 Manual multi-port valve 2" (complete) for filter Ø 762 mm (30") and Ø 914 mm (36") G-15-4524 Tank base for filter Ø...
  • Page 7 TECHNICAL DATA ® ® ® TAGELUS and TAGELUS II with CLEARPRO TECHNOLOGY F-19T6-TAG F-24T6-TAG F-30T8-TAG (mm) F-19T8-TACP F-24T8-TACP F-30T8-TACP 1009 1170 1026 1108 1194 1448 1664...
  • Page 8 Wrench 6” closure, only for filter Ø 480 mm & Ø 610 mm (19" & 24") ® ® ® ® ® TRITON - TAGELUS - TRITON II & TAGELUS II with CLEARPRO TECHNOLOGY Diameter φ 480 mm (19") φ 610 mm (24") φ 762 mm (30") φ 914 mm (36")
