LF AquaSource 406208234 Quick Start Manual

LF AquaSource 406208234 Quick Start Manual

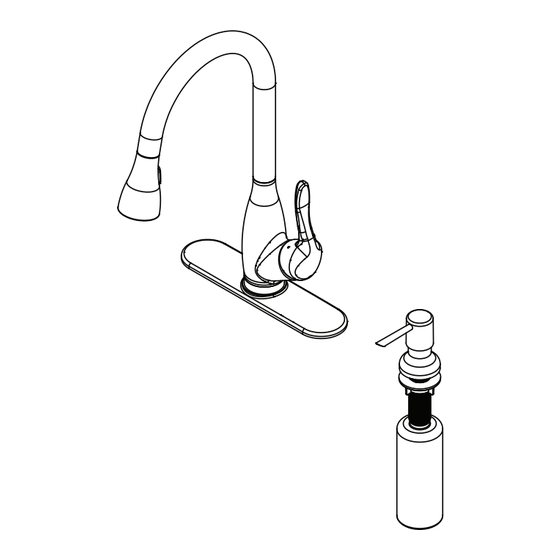

Pull-down kitchen faucet

Advertisement

Quick Links

AquaSource® is a registered trademark
of LF, LLC. All Rights Reserved.
ATTACH YOUR RECEIPT HERE
Serial Number
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-866-417-7564, 8 a.m. - 8 p.m., EST, Monday - Friday, 9 a.m. - 6
p.m., EST, Saturday.
PULL-DOWN KITCHEN
Purchase Date
1
ITEM #0016086
FAUCET
MODEL #406208234
Français p. 09
Español p. 17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AquaSource 406208234 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LF AquaSource 406208234

  • Page 1 ITEM #0016086 PULL-DOWN KITCHEN FAUCET AquaSource® is a registered trademark of LF, LLC. All Rights Reserved. MODEL #406208234 Français p. 09 Español p. 17 ATTACH YOUR RECEIPT HERE Serial Number Purchase Date Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-866-417-7564, 8 a.m.
  • Page 2 PACKAGE CONTENTS PART DESCRIPTION QUANTITY Faucet Outlet pipe Deck plate Putty plate Supply hose - cold Supply hose - hot Spary hose Soap dispenser...
  • Page 3 HARDWARE CONTENTS (shown to size) Wrench Qty. 1 Fixing Clip (not shown to size) Qty. 1 Fixing Nut Washer Extra 1 Qty. 1 Qty. 1 Qty. 1 (not shown to size) Gasket Qty. 1 Seal Extra 1 Qty. 1 Support Weight Seal Qty.
  • Page 4 ASSEMBLY INSTRUCTIONS 1. Shut off main water supply before installation. Remove old faucet. Clean sink surface. If your sink/counter does not already contain holes for faucet installation, follow sink manufacturer’s instructions for drilling holes. The faucet mounting hole should be between 1-7/16 in. to 1-1/2 in. in diameter.
  • Page 5 ASSEMBLY INSTRUCTIONS 4. Attach weight (GG) to the spray hose (G). Attach the weight (GG) to the bottom of the loop on spray hose (G) with the fixing clip (FF). Trim the remaining part of fixing clip (FF). Hardware Used Weight Fixing clip 5.
  • Page 6 ASSEMBLY INSTRUCTIONS 7. Remove spray head from faucet (A) and turn on water for 30 seconds to remove debris from the lines. 8. Re-assemble spray head. Push the button of the spray head to alternate the spray between stream and spray.
  • Page 7 CARE AND MAINTENANCE • To maintain and protect the fine luster of your faucet, clean with a soft, damp cloth only. • Do not use detergent or cleanser that may harm the finish. TROUBLESHOOTING If you have any questions regarding the product, please call customer service at 1-866-417-7564, 8 a.m.
  • Page 8 REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-866-417-7564, 8 a.m. - 8 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday. PART DESCRIPTION PART # Spout 416202018 Bearing 410808002 Faucet body group 406226105 Spray guide 410834005...
