AquaSource is a registered trademark
of LF, LLC. All Rights Reserved.
ATTACH YOUR RECEIPT HERE
Serial Number
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-866-417-7564, 8 a.m. - 8 p.m., EST, Monday - Friday.

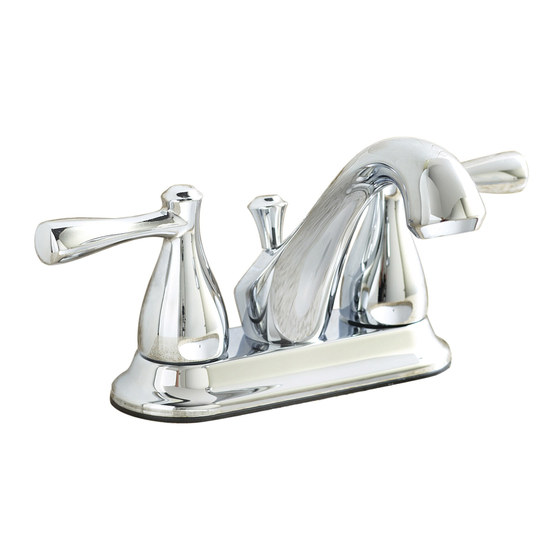

4 IN. CENTERSET
LAVATORY FAUCET
Purchase Date
1
ITEM #0386615
0386617
MODEL #67297-6101
67297-6104
Advertisement
Table of Contents
Related Manuals for LF AquaSource 67297-6101
Summary of Contents for LF AquaSource 67297-6101
- Page 1 ITEM #0386615 0386617 4 IN. CENTERSET ® AquaSource is a registered trademark of LF, LLC. All Rights Reserved. LAVATORY FAUCET MODEL #67297-6101 67297-6104 ATTACH YOUR RECEIPT HERE Serial Number Purchase Date Questions, problems, missing parts? Before returning to your retailer, call our customer...
- Page 2 PACKAGE CONTENTS PART DESCRIPTION QUANTITY Faucet Base Plate (Preassembled to Faucet (A)) Mounting Nut (Preassembled to Faucet (A)) Aerator Tool Stopper Flange Pop-up Body Gasket (Preassembled to Pop-up Body (G)) Nut (Preassembled to Pop-up Body (G)) Pivot Nut (Preassembled to Pop-up Body (G)) Lift Rod Strap Horizontal Rod (Preassembled to Lift Rod Strap (K)) Strap (Preassembled to Lift Rod Strap (K))
- Page 3 SAFTEY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. If you have any questions regarding the product, please call customer service at 1-866-417-7564, 8 a.m. - 8 p.m., EST, Monday - Friday. •...
- Page 4 ASSEMBLY INSTRUCTIONS 3. Connect 1/2 in. IPS faucet connector or coupling nuts (not included) with 3/8 in. O.D.ball-nose risers (not included) to water supplies using wrenches (not included). Note: Refer to local plumbing codes for permissible types of water supply connectors. 4.
- Page 5 ASSEMBLY INSTRUCTIONS 8. Install horizontal rod (L) through the hole of stopper (E). Hand tighten pivot nut (J). 9. Attach horizontal rod (L) to strap (M) using clip (N). 10. Insert lift rod (P) through faucet (A) and into strap (M). Tighten screw (O). 11.
- Page 6 CARE AND MAINTENANCE • Clean carefully by gently wiping with a grit-free damp cloth. Use only mild soap with water. Never use acids, harsh chemicals or abrasive detergents to clean surface. TROUBLESHOOTING If you have any questions regarding the product, please call our customer service at 1-866-417-7564, 8 a.m.
- Page 7 REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-866-417-7564, 8 a.m. - 8 p.m., EST, Monday - Friday. PART DESCRIPTION PART # RP13205* Handle Set Screw RP50002 Connect RP50003 Inverter RP64044 Bonnet RP70193 Washer RP64123 Cartridge H RP20013 Cartridge C RP20014...
