CyberPower CP850PFCLCD Function Setup Manual

CyberPower"

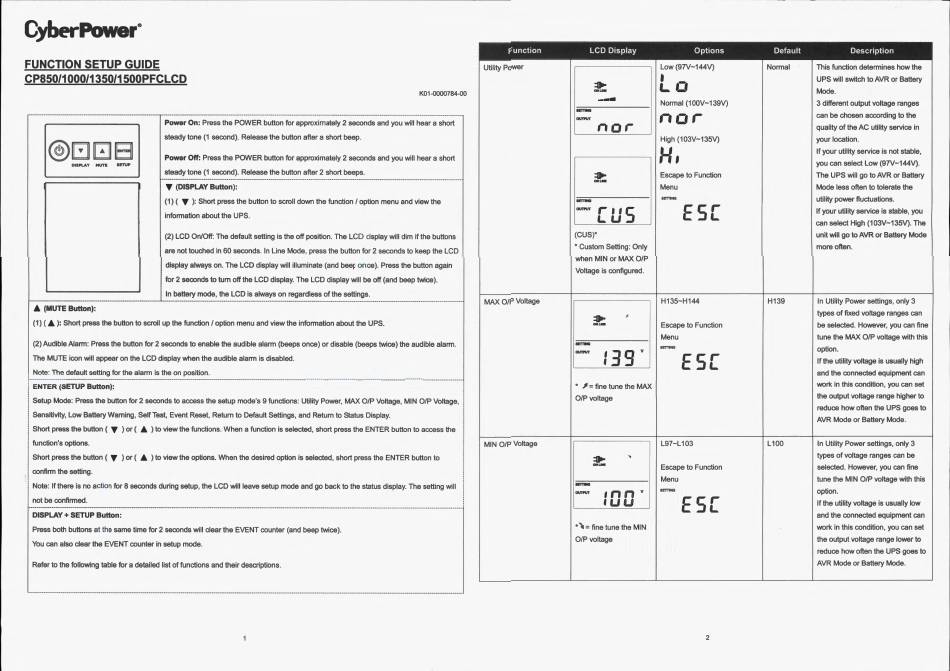

FUNCTION SETUP GUIDE
CP850/1000/1350/1 S00PFCLCD
DISPl.AY MIJTE SETUP
A (MUTE Button):
K01-0000784-00
---------------------------------
Power On: Press the POWER button for approximately 2 seconds and you will hear a short
steady tone (1 second). Release the button after a short beep.
Power Off: Press the POWER button for approximately 2 seconds and you will hear a short
steady tone (1 second}. Release the button after 2 short beeps.
T
(DISPLAY Button):
(1) (
T ):
Short press the button to scroll down the function/ option menu and view the
information about the UPS.
(2) LCD On/Off: The default setting is the off position . The LCD display will dim if the buttons
are not touched in 60 seconds. In Line Mode , press the button for 2 seconds to keep the LCD
display always on . The LCD display will illuminate (and beep once). Press the button again
for 2 seconds to tum off the LCD display. The LCD display will be off (and beep twice).
In battery mode, the LCD is always on regardless of the settings.
(1) (
.l ):
Short press the button to scroll up the function/ option menu and view the information about the UPS.
(2) Audible Alarm : Press the button for 2 seconds to enable the audible alarm (beeps once) or disable (beeps twice) the audible alarm .
The MUTE icon will appear on the LCD display when the audible alarm is disabled .
Note: The default setting for the alarm is the on position.
> - - - - - - - - - - - - -·································-- - - - ······································································· - - - - -
ENTER (SETUP Button):
Setup Mode: Press the button for 2 seconds to access the setup mode's 9 functions: Utility Power, MAX O/P Voltage, MIN O/P Voltage,
Sensitivity, Low Battery Warning, Self Test, Event Reset, Return to Default Settings, and Return to Status Display.
Short press the button (
T )
or (
A )
to view the
functions. When a function is selected , short press the ENTER button to access the
function's options.
Short press the button (
T )
or (
.l )
to view the options. When the desired option is selected, short press the ENTER button to
confirm the setting.
Note: If there is no action for 8 seconds during setup, the LCD ·will leave setup mode and go back to the status display. The setting will
not be confirmed .
1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - · · · · ··········-···························-···············
DISPLAY+ SETUP Button:
Press both buttons at the same time for 2 seconds will clear the EVENT counter (and beep twice).
You can also clear the EVENT counter in setup mode.
Refer to the following table for a detailed list of functions and their descriptions.
- - - - - - - - - - - - - - - - - - - - - - - - - - - · · · · · · · · · · · · · ·················································································
Function LCD Display Options Default Description
Utility Power
MAX O/P Voltage
MIN O/P Voltage
...,_
"'"""
(CUS)*
---
nor
.- . 's
LU
• Custom Setting: Only
when MIN or MAX O/P
Voltage is configured.
' =!
0
V f _,
~
• ~ =
fine tune the MAX
O/P voltage
,n n
v
fUU
• '\i = fine tune the MIN
O/P voltage
Low (97V-144V)
Lo
Normal (100V-139V)
,-, c, ,-
High (103V-135V)
:-:
'
Escape to Function
Menu
ES[
H135-H144
Escape to Function
Menu
ES[
L97-L103
Escape to Function
Menu
ES[
Normal
H139
L 100
This function determines how the
UPS will switch to AVR or Battery
Mode.
3 different output voltage ranges
can be chosen according to the
quality of the AC utility service in
your location .
If your utility service is not stable,
you can select Low (97V-144V).
The UPS will go to AVR or Battery
Mode less often to tolerate the
utility power fluctuations.
If your utility service is stable, you
can select High (103V-135V). The
unit will go to AVR or Battery Mode
more often .
In Utility Power settings, only 3
types of fixed voltage ranges can
be selected. However, you can fine
tune the MAX O/P voltage with this
option .
If the utility voltage is usually high
and the connected equipment can
work in this condition, you can set
the output voltage range higher to
reduce how often the UPS goes to
AVR Mode or Battery Mode.
In Utility Power settings, only 3
types of voltage ranges can be
selected. However, you can fine
tune the MIN O/P voltage with this
option.
If the utility voltage is usually low
and the connected equipment can
work in this condition, you can set
the output voltage range lower to
reduce how often the UPS goes to
AVR Mode or Battery Mode .
